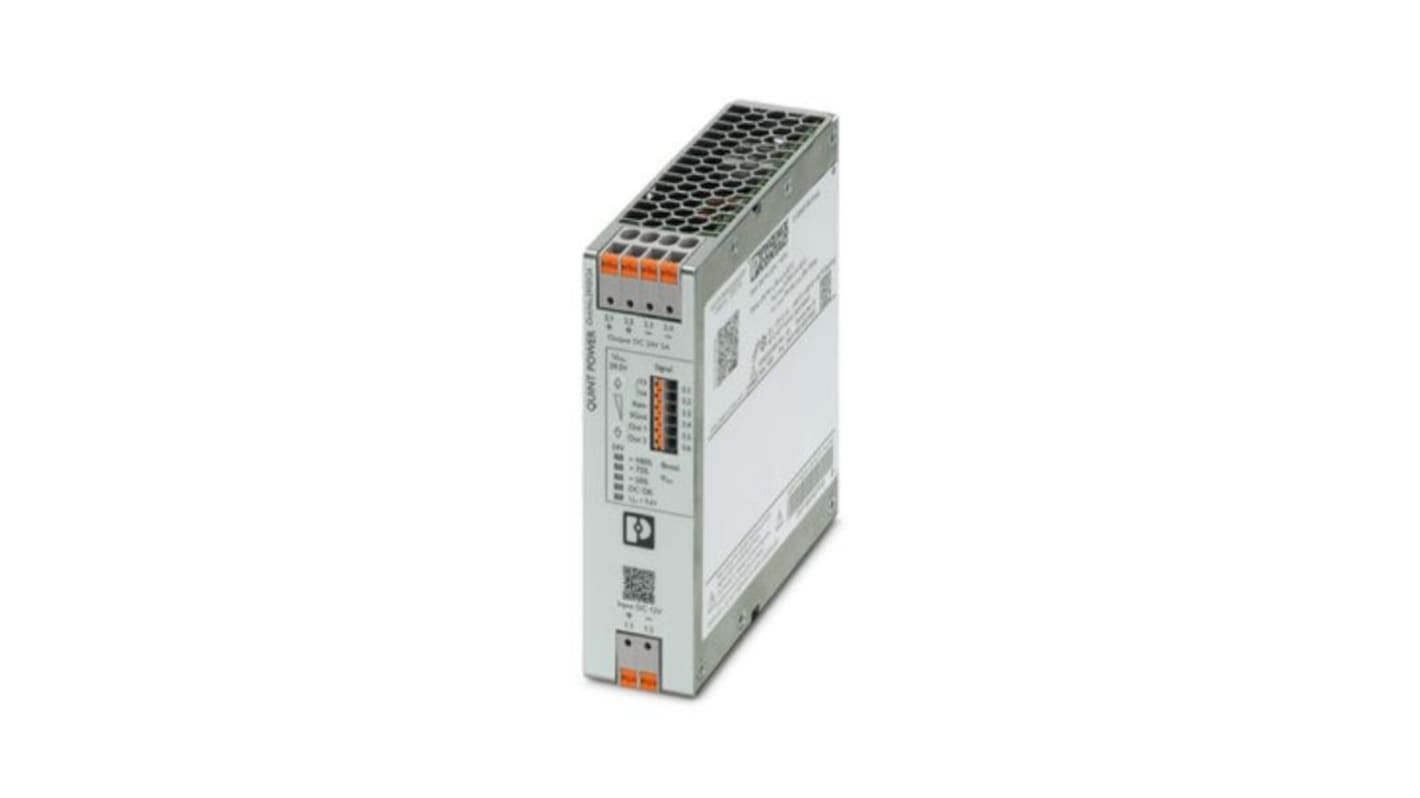

Phoenix Contact QUINT POWER DC/DC Converter, 24V dc/ 5 A, 12V dc Input, 12V dc Input, DIN Rail 240 W, 70 °C Max Temp -25
- RS 제품 번호:
- 255-9501
- 제조사 부품 번호:
- 2910124
- 제조업체:
- Phoenix Contact
Subtotal (1 unit)*
₩398,640.00
재고있음
- 2 개 단위 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 + | ₩398,640.00 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 255-9501
- 제조사 부품 번호:
- 2910124
- 제조업체:
- Phoenix Contact
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Phoenix Contact | |
| Output Voltage 1 | 24V dc | |
| Product Type | DC/DC Converter | |
| Minimum Input Voltage | 12V dc | |
| Maximum Input Voltage | 12V dc | |
| Output Current 1 | 5A | |
| Mount Type | DIN Rail | |
| MTBF | 1600000h | |
| Output Voltage Adjustment Range | 24/29.5 V dc | |
| Ripple and Noise | 20mV Pk-Pk | |
| Isolation Voltage | 2kV | |
| Maximum Output Power | 240W | |
| Weight | 825.7g | |
| Depth | 125mm | |
| Standards/Approvals | EN 61000-4-29, EN 61010-1, IEC 61010-2-201 | |
| Width | 36mm | |
| Series | QUINT POWER | |
| Maximum Operating Temperature | 70°C | |
| Minimum Operating Temperature | -25°C | |
| 모두 선택 | ||
|---|---|---|
브랜드 Phoenix Contact | ||
Output Voltage 1 24V dc | ||
Product Type DC/DC Converter | ||
Minimum Input Voltage 12V dc | ||
Maximum Input Voltage 12V dc | ||
Output Current 1 5A | ||
Mount Type DIN Rail | ||
MTBF 1600000h | ||
Output Voltage Adjustment Range 24/29.5 V dc | ||
Ripple and Noise 20mV Pk-Pk | ||
Isolation Voltage 2kV | ||
Maximum Output Power 240W | ||
Weight 825.7g | ||
Depth 125mm | ||
Standards/Approvals EN 61000-4-29, EN 61010-1, IEC 61010-2-201 | ||
Width 36mm | ||
Series QUINT POWER | ||
Maximum Operating Temperature 70°C | ||
Minimum Operating Temperature -25°C | ||
- COO (Country of Origin):
- TH
The Phoenix Contact DC/DC converter is a primary-switched QUINT DC/DC converter with maximum functionality DC/DC converters alter the voltage level, regenerate the voltage at the end of long cables or enable the creation of independent supply systems by m
Most powerful output side, easy system expansion, reliable heavy load startup and miniature circuit breaker tripping
Most comprehensive signaling means preventive function monitoring reports critical operating states before errors occur
Free selection bet
