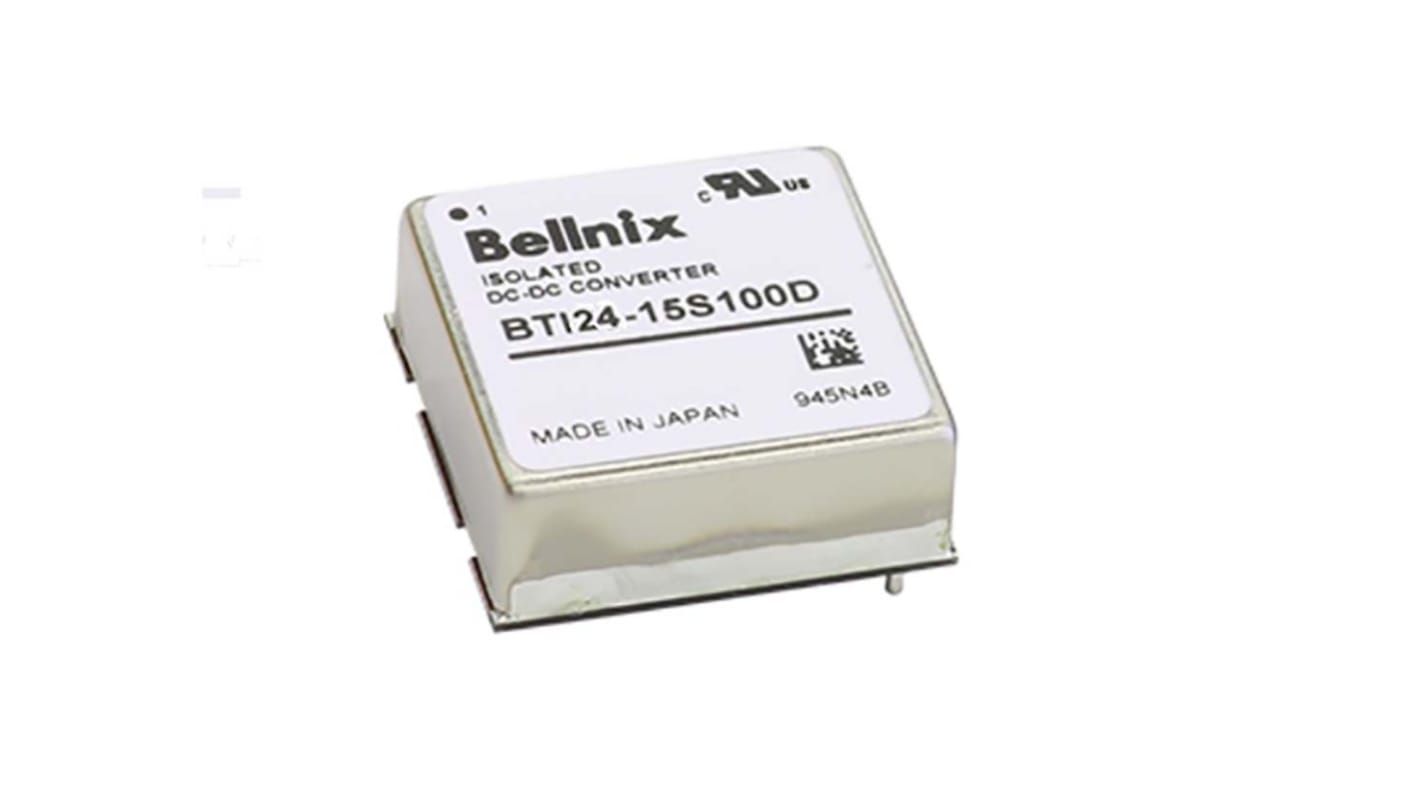

Bellnix BTI DC/DC Converter, 15V/ 500 mA, 36V Input, 9V Input 15 W, PCB, 85 °C Max Temp -40 °C Min Temp, 6-Pin DIP

모든 DC-DC Converters 열람하기
현재 비가용
죄송합니다. 언제 재입고될지 모릅니다.
RS 제품 번호:
203-5621
제조사 부품 번호:
BTI24-15W50D
제조업체:
Bellnix
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

Bellnix

Product Type

DC/DC Converter

Output Voltage 1

15V

Maximum Input Voltage

36V

Minimum Input Voltage

9V

Output Current 1

500mA

Output Current 2

0.5A

Output Voltage 2

-15V

Mount Type

PCB

Input Ratio

4:1

Number of Outputs

2

Output Voltage Adjustment Range

0/15 V

Ripple and Noise

95mV Pk-Pk

Number of Pins

6

Isolation Voltage

1.5kV

Maximum Output Power

15W

Package Type

DIP

Depth

9.9mm

Series

BTI

Width

25.4mm

Standards/Approvals

No

Weight

20g

Length

25.4mm

Minimum Operating Temperature

-40°C

Maximum Operating Temperature

85°C

Efficiency

90%

COO (Country of Origin):
JP
The Bellnix BTI series is an isolated DC-DC converter that achieves industry-leading capacity density of 15 W in a small package of 1 x 1 inch. The power increase due to future function upgrades can be handled without changing the board with the same shape BTJ series (30W). It is a high efficiency (90%), and corresponds wide Input V range (9 to 36V, 18 to 76V). There are 12 models lined up.

High efficiency

Small size, 1x1 inch

Wide input voltage range 4:1

6 sided shield structure

Adjustable output voltage

Dual power supply usable as single power supply

Isolation voltage DC1500V (1min)

Over current protection

No electrolytic capacitor, No tantalum capacitor

DIP package

Heat sink not required

Operating temp Ta = -40°C to 85°C

RoHS compliance
