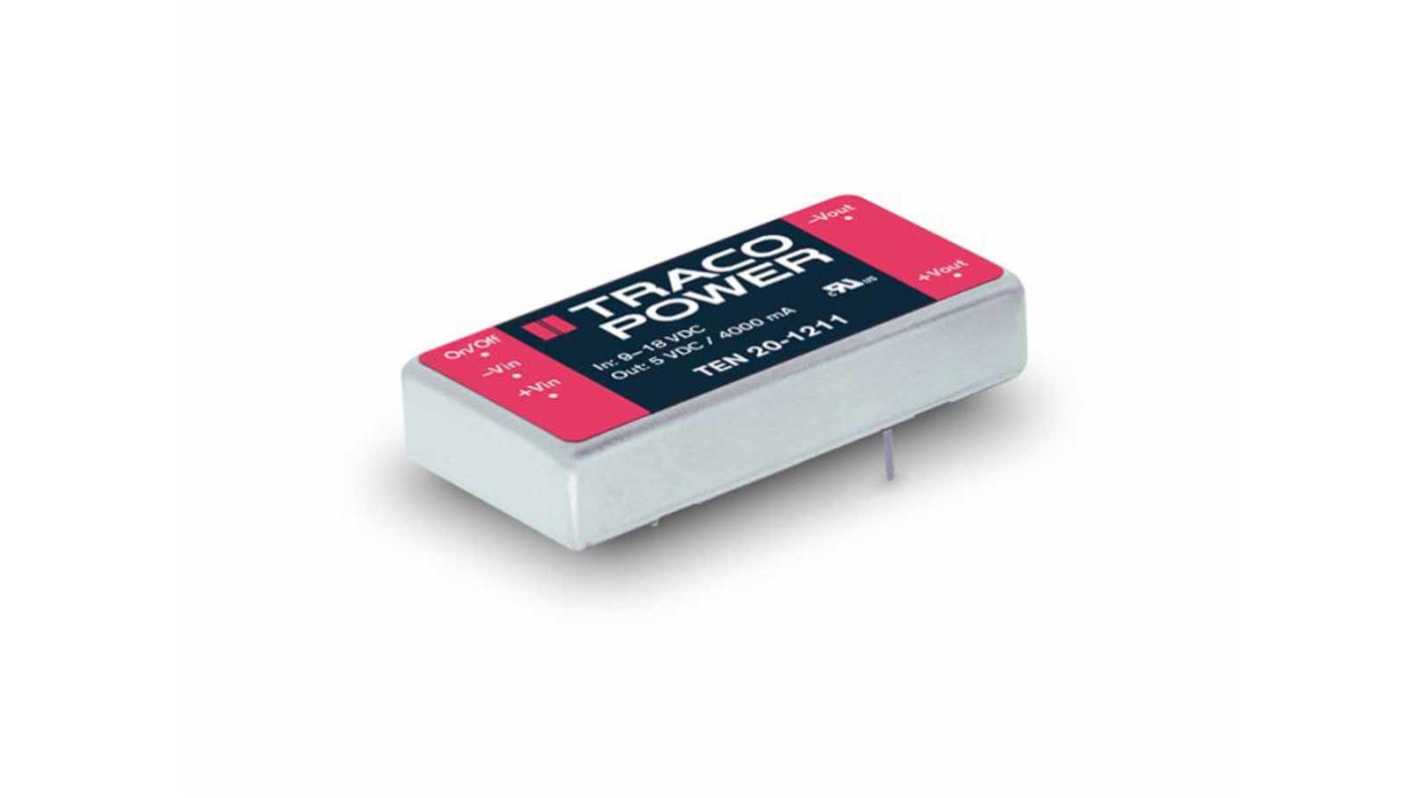

TRACOPOWER TEN 20 DC/DC Converter, 5V dc/ 4 A, 36V dc Input, 18V Input 20 W, Through Hole, 85 °C Max Temp -40 °C Min

본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.

모든 DC-DC Converters 열람하기
대량 구매 할인 기용 가능
View bulk pricing options

Subtotal (1 unit)*

₩113,040.00

Add to Basket
수량 선택 또는 입력
재고있음
  • 13 개 단위 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.

수량
한팩당
1 - 2₩113,040.00
3 - 4₩110,220.00
5 +₩108,500.00

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:
200-8500
제조사 부품 번호:
TEN 20-2411
제조업체:
TRACOPOWER
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

TRACOPOWER

Product Type

DC/DC Converter

Output Voltage 1

5V dc

Maximum Input Voltage

36V dc

Minimum Input Voltage

18V

Output Current 1

4A

Mount Type

Through Hole

Input Ratio

2:1

MTBF

1000000h

Number of Outputs

1

Ripple and Noise

80mV Pk-Pk

Number of Pins

6

Isolation Voltage

1.5kV dc

Maximum Output Power

20W

Package Type

DIP

Series

TEN 20

Width

50.8mm

Standards/Approvals

No

Weight

30g

Length

25.4mm

Depth

10.2mm

Minimum Operating Temperature

-40°C

Efficiency

85%

Maximum Operating Temperature

85°C

COO (Country of Origin):
TW

Traco Power DC-DC Converter, 1.5kV DC Isolation Voltage, 25.4 (L) x 50.8 (W) x 10.2mm (D) - TEN 20 Series - TEN 20-2411


Want to make sure your PCB-mounted components have the stable supply they depend on? Grab this DC-DC converter from Traco Power. It takes an input voltage range between 18 and 36V DC and steps it down to a balanced output voltage of 5V DC. This makes it safe for personal equipment such as laptops and smartphones. An internal input filter shields against EMI and reduces electrical noise to ensure effective signal quality. Remote ON/OFF control cuts manual operation out of the equation, letting you focus on the rest of your to-do list.

Features & Benefits


• Efficiency of 85% indicates minimal energy loss

• 1.5kV isolation barrier prevents the input and output from being directly connected

• Through-hole mounting makes installation quick and easy

• Power rating of 20W for use wide compatibility with PCB systems

• Weighs just 30g so it won't put strain on your setup

Applications


• Robotics systems

• Military equipment

• Consumer electronics

What size is this DC-DC converter?


The unit has compact dimensions of 25.4 (L) x 50.8 (W) x 10.2mm (D), so it takes up minimal space on your circuit board.
