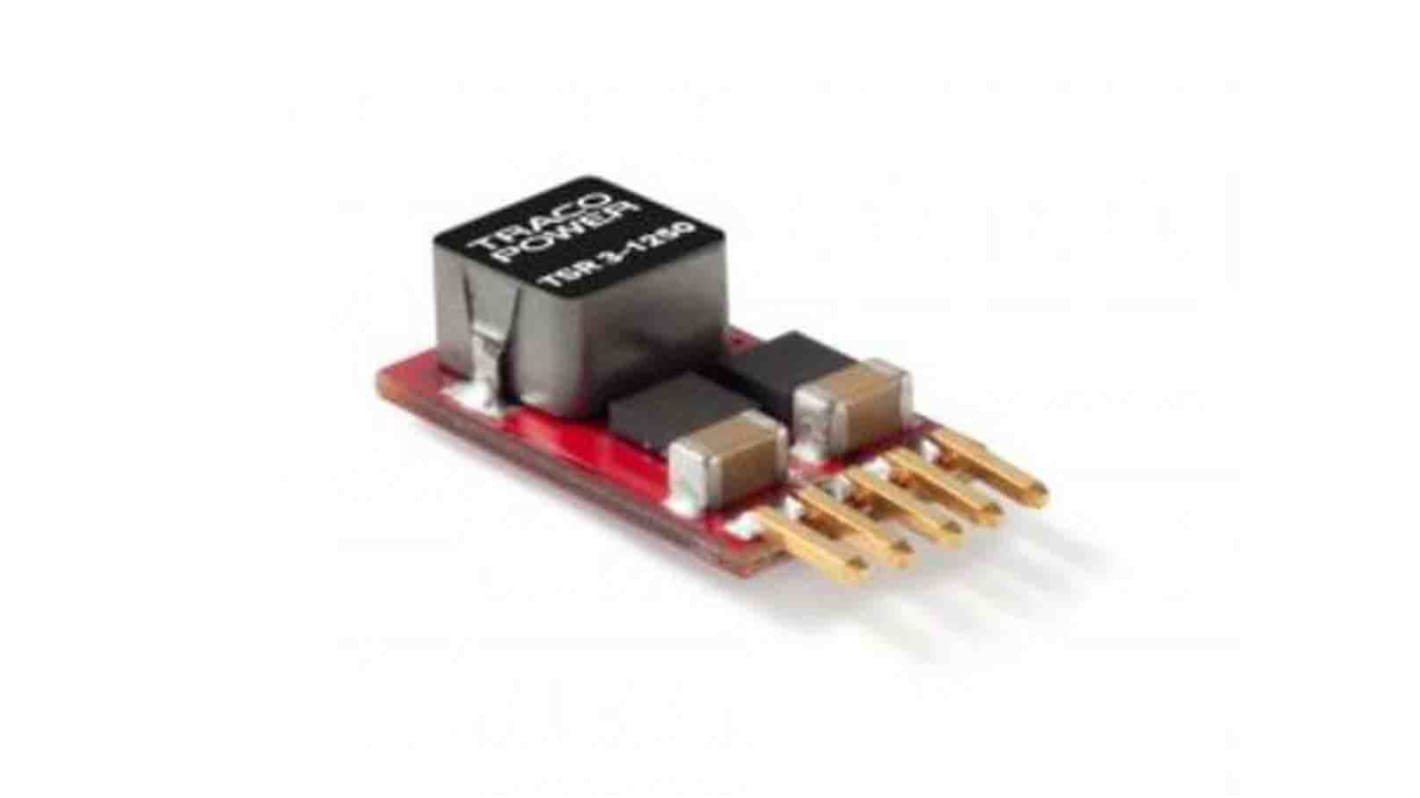

TRACO POWER TSR 3 DC/DC Converter, 5V dc/ 3 A, 24V Input, 10V, Through Hole, 85 °C Max Temp -40 °C Min Temp, SIP

본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.

대량 구매 할인 받기

3개 더 담고 ₩4,140.00 할인 받기

View bulk pricing options

Subtotal (1 unit)*

₩53,620.00

Add to Basket
수량 선택 또는 입력
일시적 품절
  • 2027년 1월 21일 부터 20 개 단위 배송
  • 추가로 2027년 1월 28일 부터 50 개 단위 배송
  • 추가로 2027년 3월 18일 부터 20 개 단위 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.

수량
한팩당
절감
1 - 2₩53,620.00-
3 - 4₩52,240.00₩4,140.00
5 +₩51,480.00₩10,700.00

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:
200-3543
Distrelec 제품 번호:
303-73-515
제조사 부품 번호:
TSR 3-24150A
제조업체:
TRACO POWER
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

TRACO POWER

Output Voltage 1

5V dc

Product Type

DC/DC Converter

Maximum Input Voltage

24V

Minimum Input Voltage

10V

Mount Type

Through Hole

Number of Outputs

1

MTBF

4500000h

Ripple and Noise

150mV Pk-Pk

Output Voltage Adjustment Range

0.6/3.3 V dc

Output Current 1

3A

Package Type

SIP

Series

TSR 3

Width

10.4mm

Depth

15.5mm

Standards/Approvals

RoHS, REACH

Weight

2.1g

Length

6mm

Maximum Operating Temperature

85°C

Efficiency

0.95%

Minimum Operating Temperature

-40°C

COO (Country of Origin):
TW
The Traco Power TSR series is Non-Isolated DC/DC converter family. The TSR 3 models are non isolated step down switching regulators. The high efficiency of up to 95% admits a full load operation up to 50°C and up to 85°C with 50% current reduction. A low standby current, a very wider input range and no requirement for heatsink give these switching regulators a significant advantage over linear regulators.

High performance 3 Amp. Switching regulator

Suitable for positive & negative output circuit

High efficiency up to 95 %

Adjustable output voltages
