Lascar EL-GFX-1 Temperature Data Logger, USB, 1 Input Channel(s)
- RS 제품 번호:
- 775-1061
- 제조사 부품 번호:
- EL-GFX-1
- 제조업체:
- Lascar
Subtotal (1 unit)*
₩264,365.60
단종되는 중
- 최종적인 9 개 unit(s)이 배송 준비 됨
수량 | 한팩당 |
|---|---|
| 1 + | ₩264,365.60 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 775-1061
- 제조사 부품 번호:
- EL-GFX-1
- 제조업체:
- Lascar
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Lascar | |
| Model Number | EL-GFX-1 | |
| Number of Input Channels | 1 | |
| Measurement Parameters | Temperature | |
| Sensor Type | Temperature | |
| Interface Type | USB | |
| Data Logger Type | Temperature | |
| Maximum Temperature Measurement | +176 °F, +80 °C | |
| Power Source | Battery | |
| Best Temperature Measurement Accuracy | ±0.5 °C, ±1 °F | |
| IP Rating | IP67 | |
| Minimum Operating Temperature | -35°C | |
| Maximum Operating Temperature | +80°C | |
| Display Type | LCD | |
| Temperature Measurement Resolution | 0.1°C | |
| Model Number p | EL-GFX-1 | |
| Battery Life | 1 yr | |
| Number of Readings Per Channel | 251928 | |
| Battery Type | 1/2 AA | |
| Includes | 2 x Batteries, USB Cover, Mounting Clip, Micro USB Cable | |
| Dimensions | 48.5 x 30.5 x 88mm | |
| Alarm | Yes | |
| 모두 선택 | ||
|---|---|---|
브랜드 Lascar | ||
Model Number EL-GFX-1 | ||
Number of Input Channels 1 | ||
Measurement Parameters Temperature | ||
Sensor Type Temperature | ||
Interface Type USB | ||
Data Logger Type Temperature | ||
Maximum Temperature Measurement +176 °F, +80 °C | ||
Power Source Battery | ||
Best Temperature Measurement Accuracy ±0.5 °C, ±1 °F | ||
IP Rating IP67 | ||
Minimum Operating Temperature -35°C | ||
Maximum Operating Temperature +80°C | ||
Display Type LCD | ||
Temperature Measurement Resolution 0.1°C | ||
Model Number p EL-GFX-1 | ||
Battery Life 1 yr | ||
Number of Readings Per Channel 251928 | ||
Battery Type 1/2 AA | ||
Includes 2 x Batteries, USB Cover, Mounting Clip, Micro USB Cable | ||
Dimensions 48.5 x 30.5 x 88mm | ||
Alarm Yes | ||
- COO (Country of Origin):
- CN

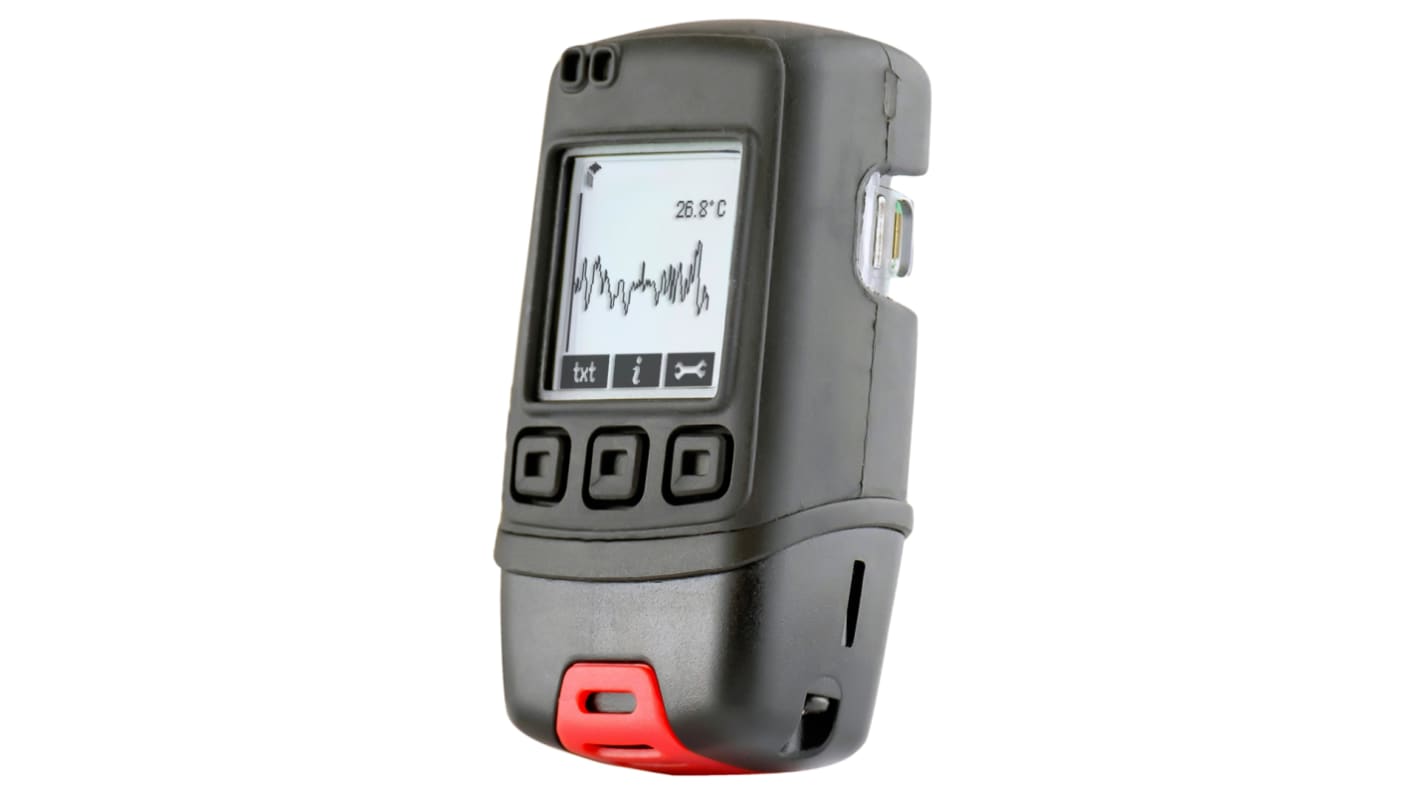

Temperature Logger with Screen and Audible Alarm
The EL-GFX-1 USB data logger measures and stores over 250,000 temperature readings in one or more sessions over a -30 to +80 °C (22 to +176 °F) range and at a resolution of 0.1 °C for up to 1 year.
Users can easily set up their devices and view all their downloaded data by plugging the data logger into a PC. Using the free EasyLog software, users can then graph, print and export their recorded data to other applications for detailed analysis.
The EL-GFX-1 is super simple to use, with its high contrast dot-matrix LCD and three buttons users have access to real-time trend analysis, data summaries and the ability to start, stop and view results from the data logger at their fingertips. Users can even reset the maximum and minimum readings using the device's on-screen menu. This produces an event marker, which can be viewed later in the graphing software and in the data file after download.
Users can easily set up their devices and view all their downloaded data by plugging the data logger into a PC. Using the free EasyLog software, users can then graph, print and export their recorded data to other applications for detailed analysis.
The EL-GFX-1 is super simple to use, with its high contrast dot-matrix LCD and three buttons users have access to real-time trend analysis, data summaries and the ability to start, stop and view results from the data logger at their fingertips. Users can even reset the maximum and minimum readings using the device's on-screen menu. This produces an event marker, which can be viewed later in the graphing software and in the data file after download.
Features and Benefits
-30 to +80°C (-22 to +176°F) measurement range
Stores over 250,000 readings
EasyLog software available as a free download
Logging rates between 10 seconds and 1 hour
On-screen graphing and menu options to start, stop, review and restart the logger in the field
Immediate, delayed, push-button or level-triggered start mode
User-programmable audible alarm thresholds with highly visible confidence/alarm LEDs
Environmental protection to IP67
Stores over 250,000 readings
EasyLog software available as a free download
Logging rates between 10 seconds and 1 hour
On-screen graphing and menu options to start, stop, review and restart the logger in the field
Immediate, delayed, push-button or level-triggered start mode
User-programmable audible alarm thresholds with highly visible confidence/alarm LEDs
Environmental protection to IP67
Applications
Facilities Management
Housing and Business Premises
Outside Environmental Data
Housing and Business Premises
Outside Environmental Data
This item is Lithium cell / battery product (or contains Lithium cells / batteries) which needs to be shipped by sea freight. There will be extension of lead time (around 90 days) for global stock.
Note
The data logger is supplied complete with two lithium metal batteries. it is protected against moisture to IP67 when the battery case is securely fitted. Can be powered by USB.
