Lascar EL-USB-1 Temperature Data Logger, USB

RS 제품 번호:: 466-6115
Distrelec 제품 번호:: 176-70-790
제조사 부품 번호:: EL-USB-1
제조업체:: Lascar

Lascar EL-USB-1 Temperature Data Logger, USB

Subtotal (1 unit)*

₩136,206.00

재고있음

추가로 2026년 3월 23일 부터 77 개 단위 배송
추가로 2026년 5월 01일 부터 196 개 단위 배송

더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.

수량	한팩당
1 +	₩136,206.00

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:: 466-6115
Distrelec 제품 번호:: 176-70-790
제조사 부품 번호:: EL-USB-1
제조업체:: Lascar

참조 문서

제정법과 컴플라이언스

제품 세부 사항

제품 정보를 선택해 유사 제품을 찾기

모두 선택	제품 정보	값
	브랜드	Lascar
	Product Type	Data Logger
	Model Number	EL-USB-1
	Accuracy	±0.5°C, ±0.5 °C
	Measurement Parameters	Temperature
	Number of Channels	1
	Interface Type	USB
	Data Logger Type	Temperature
	Power Source	Battery
	IP Rating	IP67
	Minimum Operating Temperature	-35°C
	Maximum Operating Temperature	80°C
	Width	26mm
	Length	98mm
	Height	26.8mm
	Hazardous Area Certification	No
	Standards/Approvals	No
	Display Type	LCD
	Number of Readings per Channel	16382
	Alarm	Yes
	Battery Life	3year
	Battery Type	AA

	모두 선택
	브랜드 Lascar
	Product Type Data Logger
	Model Number EL-USB-1
	Accuracy ±0.5°C, ±0.5 °C
	Measurement Parameters Temperature
	Number of Channels 1
	Interface Type USB
	Data Logger Type Temperature
	Power Source Battery
	IP Rating IP67
	Minimum Operating Temperature -35°C
	Maximum Operating Temperature 80°C
	Width 26mm
	Length 98mm
	Height 26.8mm
	Hazardous Area Certification No
	Standards/Approvals No
	Display Type LCD
	Number of Readings per Channel 16382
	Alarm Yes
	Battery Life 3year
	Battery Type AA

Lascar Data Loggers

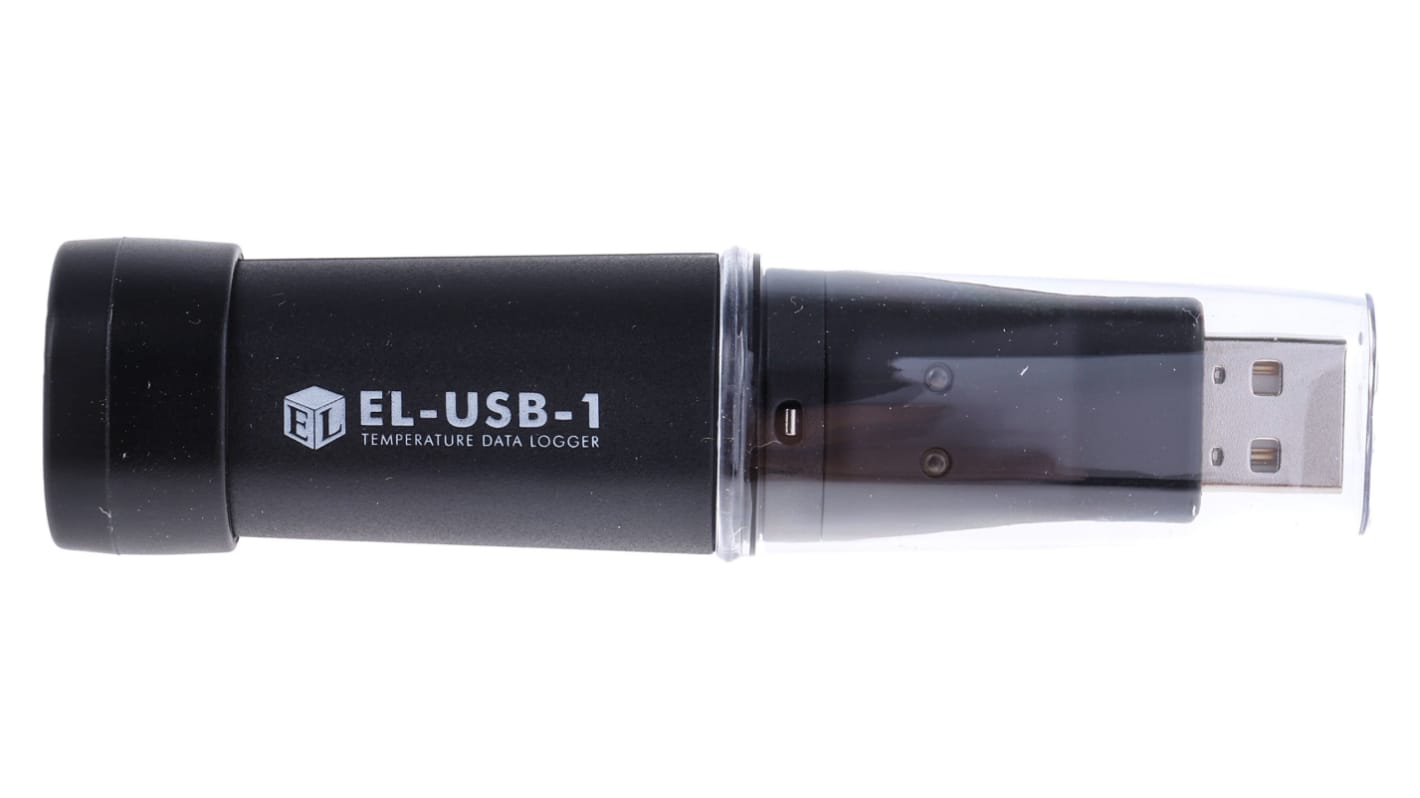

The Lascar EL-USB-1 USB standalone data logger measures and stores over 16,000 temperature readings between -35°C and 80°C (-31°F to 176°F) with a resolution of 0.5°C (1°F). The user can easily set up the logger and view the downloaded data by plugging the data logger into your PC’s USB port and using the free EasyLog software. Data can then be graphed, printed and exported to other applications for a detailed analysis. Whether you're in the food industry, pharmaceuticals, or environmental research, the EL-USB-1 ensures accurate and consistent temperature tracking.

Supplied with

1/2 AA battery and wall mount clip

Features and Benefits

Wide Temperature Range - between -35°C and 80°C (-31°F and 176°F), Temperature measurement accuracy is ±0.5°C

High Storage Capacity - capable of storing over 16,000 readings, ensuring comprehensive data collection

Easy Configuration and Data Retrieval - simply connect the device to a PC's USB port to configure settings and download data using the free EasyLog software

User Friendly Software - EasyLog software allows you to graph, print and export data for detailed analysis

Flexible Logging Rates - ranges between 10 seconds and 12 hours depending on your needs to capture data

User-programmable alarm thresholds for both, temperature and humidity

Status indication via red/green LEDs

Battery life is up to 3 years

Export to Excel functionality - for further analysis

Applications

The EL-USB-1 temperature data logger is versatile and suitable for a wide range of applications, including:

Food Industry - monitor storage and transportation conditions to ensure food safety and quality.

Pharmaceuticals - maintain the integrity of temperature-sensitive medications and vaccines.

Environmental Research - for scientific studies and environmental monitoring.

HVAC Systems - track temperature variations to optimise heating, ventilation, and air conditioning systems.

Cold Chain Logistics - ensure that perishable goods are kept within safe temperature ranges during transit.

Agriculture - monitor greenhouse and storage conditions to protect crops and produce.

Museums and Archives - preserve artifacts and documents by maintaining stable environmental conditions.

Data Centers - prevent overheating and ensure optimal performance of servers and other equipment.

Certifications

IP67 Rated

Note

Accessories:
For additional protection the EL-USE-CASE is available please see 500-721
