Sefram DAS 240 Multipurpose Data Logger, Ethernet, USB, 20 Input Channel(s)

모든 Data Loggers 열람하기

Subtotal (1 unit)*

₩6,660,294.80

Add to Basket
수량 선택 또는 입력
재고있음
  • 12 개 단위 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량
한팩당
1 +₩6,660,294.80

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:
125-9516
Distrelec 제품 번호:
301-49-367
제조사 부품 번호:
DAS240
제조업체:
Sefram
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

Sefram

Number of Input Channels

20

Model Number

DAS 240

Measurement Parameters

Current, Resistance, Temperature, Thermocouple, Voltage

Sensor Type

B, C, E, J, K, L, N, pt100, pt1000, S, T

Interface Type

Ethernet, USB

Data Logger Type

Multipurpose

Maximum Voltage Measurement

200V

Maximum Temperature Measurement

+1000 (E) °C, +1200 (J) °C, +1300 (N) °C, +1370 (K) °C, +1760 (S) °C, +1820 (B) °C, +2320 (C) °C, +400 (T) °C, +850 (PT100) °C, +850 (PT1000) °C, +900 (L) °C

Power Source

Mains

Best Temperature Measurement Accuracy

0.3 °C

Minimum Operating Temperature

0°C

Maximum Operating Temperature

+40°C

Maximum Current Measurement

1mA

Display Type

LCD

Includes

DasLab Software

Best Voltage Measurement Accuracy

0.1 %

Alarm

Yes

Dimensions

298 x 66 x 176mm

COO (Country of Origin):
FR

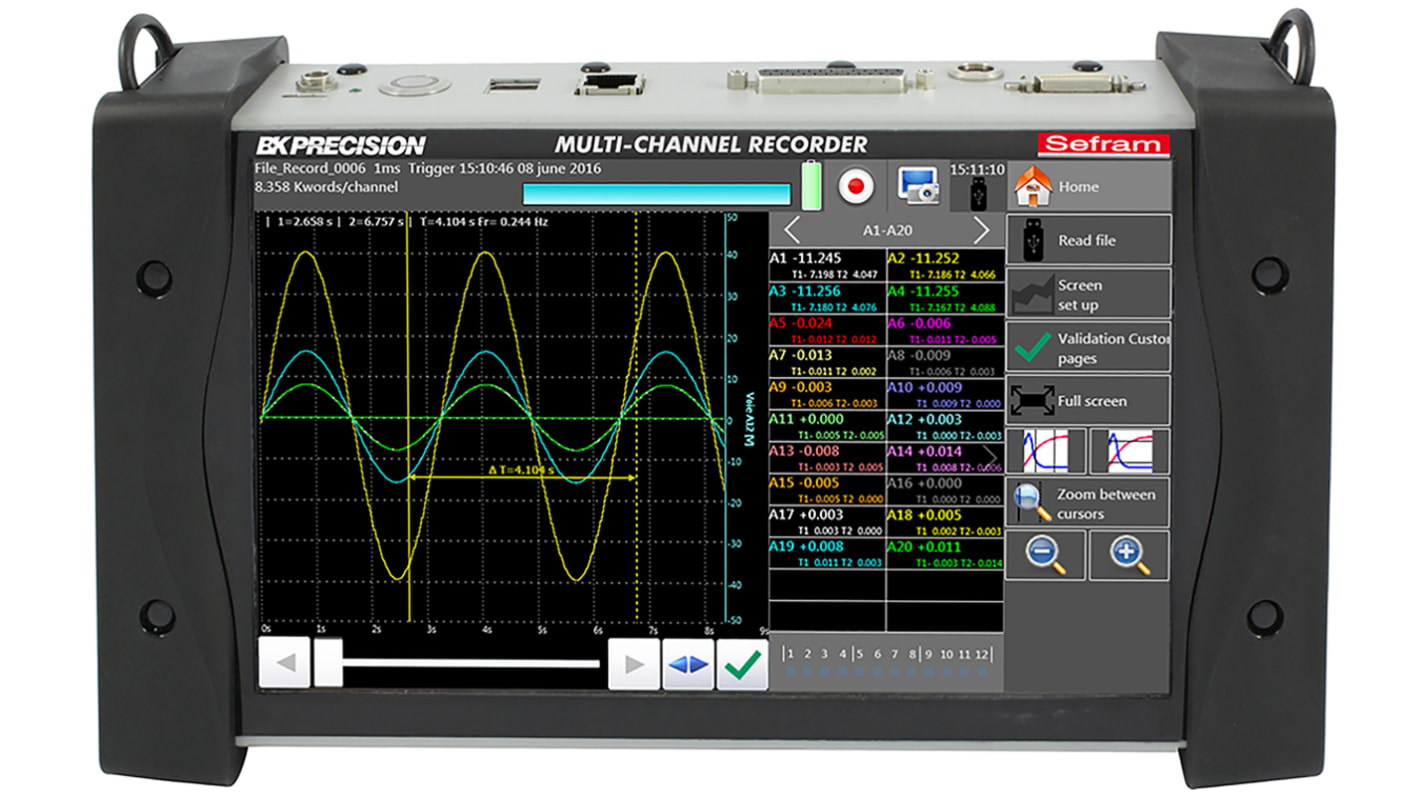

DAS240 and DAS240BAT Multi-Channel Handheld Recorder


The new DAS240 and DAS240BAT (15 hour internal battery) recorders have been designed to measure all parameters you can find in a process: voltage measurements, measurements on sensors (0-10V), temperature measurements (thermocouples, Pt100-1000), current measurements (with optional shunt), resistance measurements, pulse counter, frequency. You can view directly the results of measurements (graphs, numerical values) and memorize your results in the recorder or in a USB memory stick. The data transfer, data processing, remote setup can be done with the licence free DasLab software.

Choice:

DAS240 - RS Stock No. 125-9516

DAS240BAT - RS Stock No. 125-9517

The DAS240BAT is equipped with a built-in battery, making it more suitable for portable and remote applications, while the DAS240 is designed for stationary use with an external power supply.

Main Features of the DAS240 and DAS240BAT


• 20 to 200 analogue channels
• Input: voltage, thermocouple, Pt100-1000, current (with optional shunt), resistance
• Voltage: from 1mV to 200V (±100V)
• Temperature: thermocouples (all types), Pt100-1000 (2 or 3 wires)
• 16 Bit vertical resolution
• Max sampling rate: 1ms (1kHz)
• 12 logical channels
• 4 alarms (output)
• 4 logical function input with counter & frequency meter capability
• 10 inch colour TFT panoramic touch screen display
• Internal hard drive: 32 GB
• Interfaces: 2xUSB, Ethernet, Wifi (option)
• Lithium-ion battery (factory option): 15h autonomy (DAS240BAT RS 125-9517)
• DasLab software (licence free)
• MODBUS TCP (slave): Click here to get more details about this function
• Safety: IEC61010 CAT I 100V
• Application note: Remote control of the DAS240 with a tablet and VNC

Multiple Applications


The DAS240 recorder is a general purpose recorder for process applications:

• Multi channel temperature monitoring and recording
• 0 to 10 V sensors monitoring and recording
• Voltage measurements
• Pulse counting
• 4 to 20 mA measurement and monitoring (with optional shunt)

Options


1259518 - 20 Channel board for DAS240 and DAS240BAT
2320453 - WiFi option
7918071 - External 16 isolated logical channel adapter
1259523 - Special cord for logic inputs (banana)
1259520 - Carrying case for DAS220 and DAS240
2320454 - 10 pieces pack connecting cord with female banana connectors
1259522 - Shunt 50 ohms for DAS220 or DAS240
2320455 - Thermocouple adapter for DAS240 only

Supplied with

Included: main adaptor 100/240V, manual (CD-ROM), 1 male connector with 25 pins male and cover, 1 cable (70cm) for measurement module connection, 1 measurement module (20 channels) with connectors, a stylus, a soft wipe, a screwdriver
