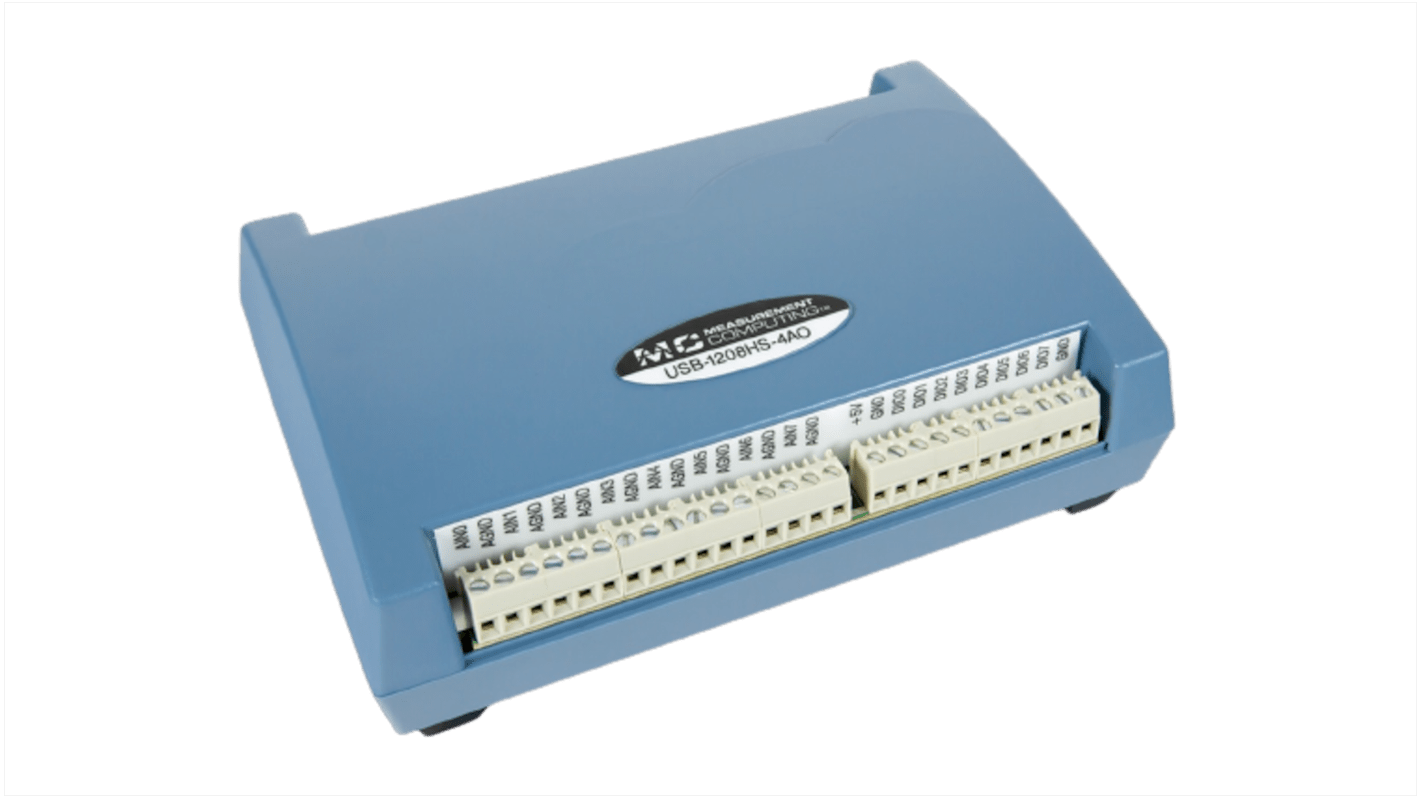

Digilent MCC USB-1208HS-4AO Data Acquisition, 8 SE/ 4 DIFF Channel(s), USB, 1ksps, 13 bit

모든 Data Acquisition 열람하기
대량 구매 할인 기용 가능

Subtotal (1 unit)*

₩1,329,084.80

Add to Basket
수량 선택 또는 입력
일시적 품절
  • 2026년 2월 20일 부터 3 개 단위 배송
  • 추가로 2026년 4월 10일 부터 3 개 단위 배송
  • 추가로 2026년 8월 14일 부터 4 개 단위 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량
한팩당
1 - 4₩1,329,084.80
5 +₩1,302,520.40

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:
241-4291
Distrelec 제품 번호:
302-57-289
제조사 부품 번호:
6069-410-017
제조업체:
Digilent
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

Digilent

Number of Input Channels

8 SE/ 4 DIFF

Sampling Rate

1ksps

Resolution

13 bit

Connectivity

USB

Input Type

Analogue

Output Type

Analogue

Dimensions

127 x 88.9 x 35.56mm

Weight

431g

Height

35.56mm

Width

88.9mm

Maximum Operating Temperature

+50°C

Length

127mm

Model Number p

MCC USB-1208HS-4AO

Minimum Operating Temperature

0°C

The Digilent USB-1208HS-4AO 13-Bit resolution high speed USB DAQ delivers real time data transfers. The data acquisition system is easy to use and integrates with free software support for out of the box data logging. The MCC USB-1208HS-4AO USB bus powered DAQ offers eight single ended analog or four differential inputs, as well as four 12-bit analog outputs. In addition to, sixteen digital I/O, two 32-bit counter inputs and one timer output.

Digilents MCC USB-1208HS-4AO (Measurement Computing Corporation) DAQ has ready to run applications software and the DAQami software has a drag and drop interface than can view, generate signals and log data. The DAQami software can configure logging analog, digital, and counter channels as well as real-time data or post-acquisition. All your logged data can be exported for use in Excel® or MATLAB®. The drivers are freely available for the most popular applications and programming languages including Visual C++®, Visual C#®, Visual Basic®.NET, DASYLab®, LabVIEW™, Linux®, and Python™.

Features:
Analog Input range: ±5 V to ±20 V in differential mode
Analog Input range: ±2.5 V to ±10 V, and 0 V to 10 V in single ended mode
Sample rates up to 1 MS/s
32-bit PWM Timer output
USB cable
Product Compliance: HTC: 8471.80.9000, ECCN: 3A992.a
Out of the Box Software: DAQami - Included
Supported Operating Systems: Windows® 11/10/8/7/Vista®, 32-bit or 64-bit

For these non-cancellable (NC), and non-returnable (NR) products, Terms and Conditions apply.
