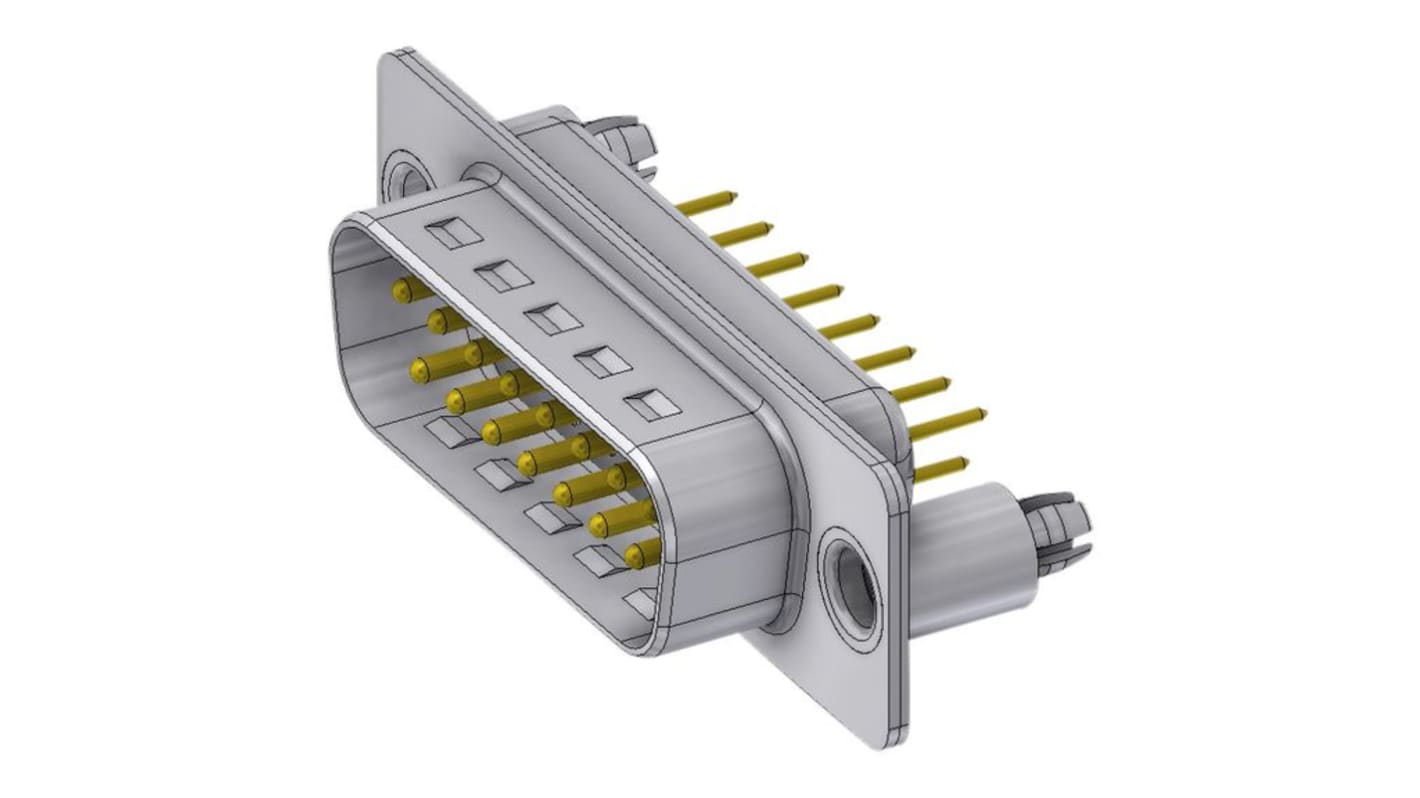

Deltron Connectors DTS 15 Way Straight PCB D-Sub Connector, with Screw Lock Male
- RS 제품 번호:
- 285-7393
- Distrelec 제품 번호:
- 144-16-779
- 제조사 부품 번호:
- DTS15PY/2M86UN
- 제조업체:
- Deltron Connectors
Subtotal (1 unit)*
₩11,563.50
재고있음
- 30 개 단위 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 + | ₩11,563.50 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 285-7393
- Distrelec 제품 번호:
- 144-16-779
- 제조사 부품 번호:
- DTS15PY/2M86UN
- 제조업체:
- Deltron Connectors
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Deltron Connectors | |
| Number of Contacts | 15 | |
| Product Type | D-Sub Connector | |
| Orientation | Straight | |
| Current | 7.5A | |
| Mount Type | PCB | |
| Connector Gender | Male | |
| Connector Type D | Standard | |
| Mounting Hardware | Screw Lock | |
| Housing Material | Steel | |
| Voltage | 125V | |
| Minimum Operating Temperature | -55°C | |
| Termination Type | Radial Lead | |
| Maximum Operating Temperature | 125°C | |
| Contact Gender | Male | |
| Standards/Approvals | No | |
| Contact Plating | Gold over Nickel | |
| Series | DTS | |
| Contact Material | Copper Alloy | |
| 모두 선택 | ||
|---|---|---|
브랜드 Deltron Connectors | ||
Number of Contacts 15 | ||
Product Type D-Sub Connector | ||
Orientation Straight | ||
Current 7.5A | ||
Mount Type PCB | ||
Connector Gender Male | ||
Connector Type D Standard | ||
Mounting Hardware Screw Lock | ||
Housing Material Steel | ||
Voltage 125V | ||
Minimum Operating Temperature -55°C | ||
Termination Type Radial Lead | ||
Maximum Operating Temperature 125°C | ||
Contact Gender Male | ||
Standards/Approvals No | ||
Contact Plating Gold over Nickel | ||
Series DTS | ||
Contact Material Copper Alloy | ||
- COO (Country of Origin):
- CH
The D-Subminiature Connector features a Monoblock self extinguishing thermoplastic insulator and contacts made of copper alloy with hard-gold plating over nickel. With a test voltage of 1000 V and a working voltage of 125 V, this connector offers a current rating of 5 A (20°) and a quality class of 2 with 200 mating cycles. It is designed for straight versions and has a variety of assembly options available.
Monoblock self extinguishing thermoplastic insulator for durability
Copper alloy contacts with hard-gold plating for reliable connections
Steel tin plated shell for protection
Test voltage of 1000 V and working voltage of 125 V for safety
Quality class of 2 with 200 mating cycles for longevity
Available in straight versions with various assembly options
