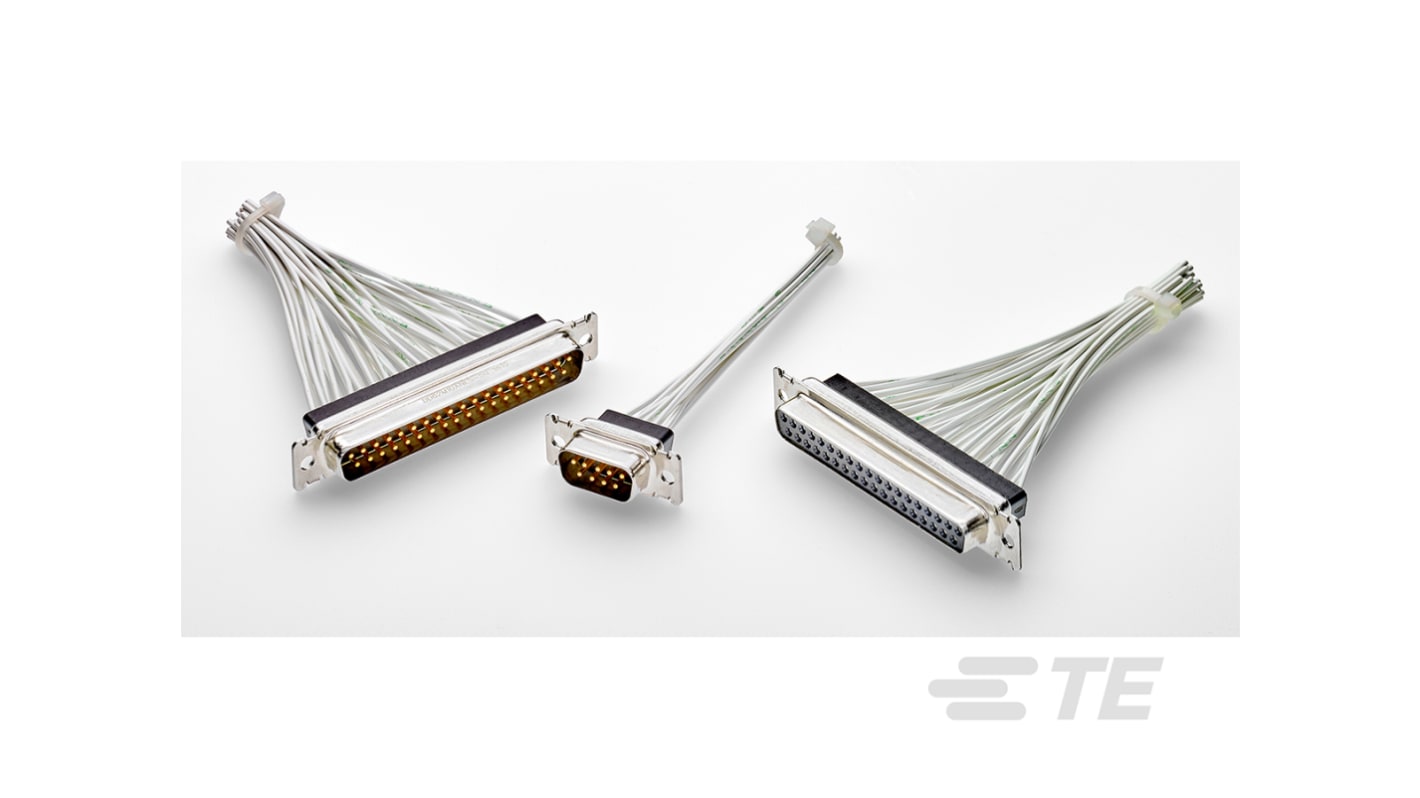

TE Connectivity 2335893 104 Way 2.29 mm Pitch Cable D-Sub Connector Female

본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.

모든 D Sub Connectors 열람하기
현재 이용 불가
이 품목의 재입고 여부는 알 수 없으며 제조업체에서 단종되고 있습니다.
RS 제품 번호:
187-0972
제조사 부품 번호:
2335893-6
제조업체:
TE Connectivity
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

TE Connectivity

Number of Contacts

104

Product Type

D-Sub Connector

Current

5A

Mount Type

Cable

Connector Gender

Female

Connector Type D

D-Sub

Housing Material

Stainless Steel

Termination Type

Crimp

Minimum Operating Temperature

-55°C

Maximum Operating Temperature

125°C

Contact Gender

Female

Standards/Approvals

No

Series

2335893

Pitch

2.29mm

Contact Size

22

COO (Country of Origin):
US

TE Connectivity 2335893-6


Product Type=Cable Assembly, Connector Style=Receptacle, Connector System=Cable-to-Cable, Shell Size=6, Sealable=No, Preloaded=No, Number of Positions=104, Power/Signal/Coax Combination=No, Retention Clip Material=Stainless Steel, Non-Magnetic=No, Contact Type=Socket, Contact Style=Socket, Contact Size=22, Contact Current Rating (Max)=5 A, Mounting Hole Diameter=2.92 – 3.18 mm, Connector Mounting Type=Cable Mount (Free-Hanging), Centerline (Pitch)=2.29 mm, Operating Temperature Range=-55 – 125 °C, ULTRA-LITE Connector=No, Circuit Application=Signal, NASA Qualification=No, Packaging Method=Package
