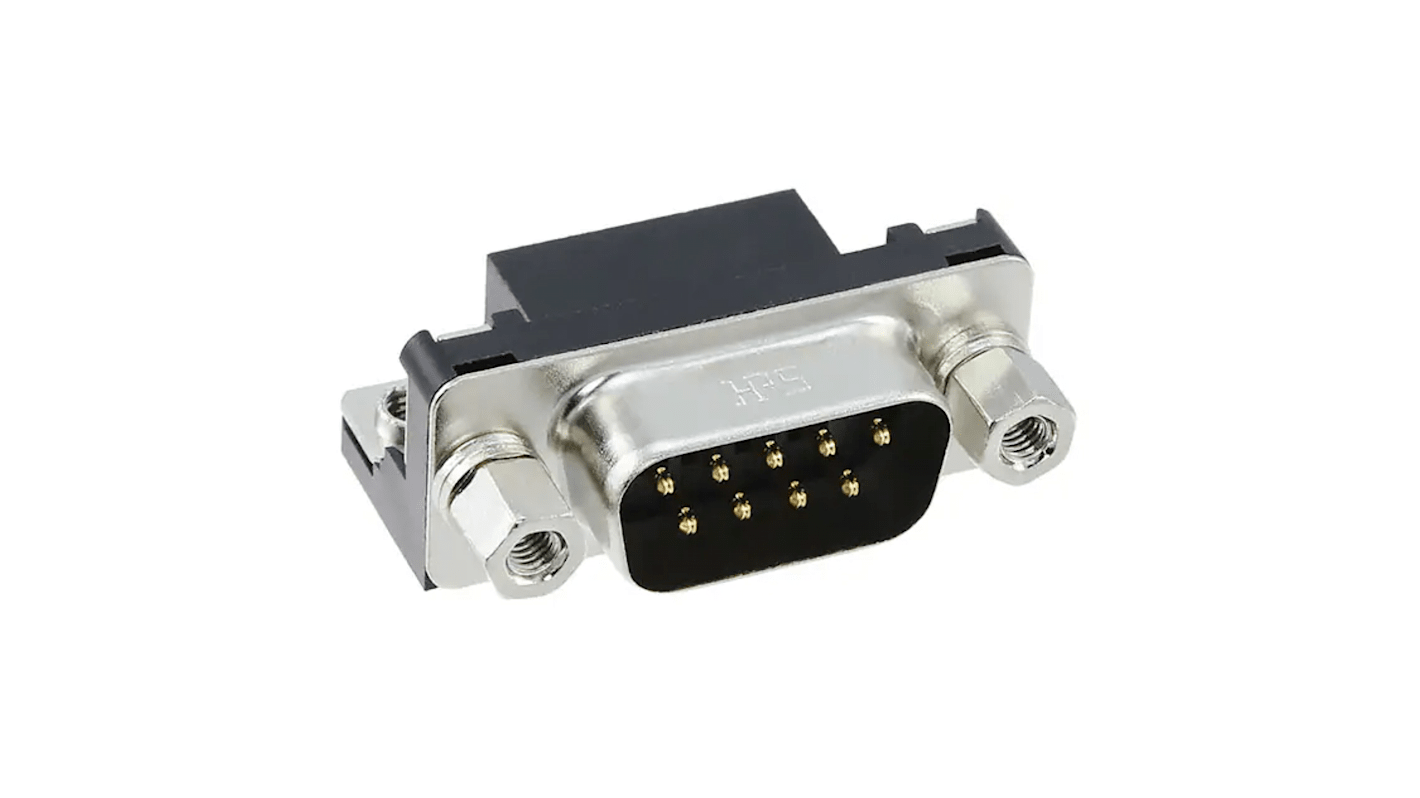

Hirose RDBD 9 Way Right Angle 2.74 mm Pitch Through Hole D-Sub Connector Male

본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.

대량 구매 할인 받기

16개 더 담고 ₩6,400.00 할인 받기

View bulk pricing options

Subtotal (1 unit)*

₩19,300.00

Add to Basket
수량 선택 또는 입력
재고있음
  • 21 개 단위 배송 준비 완료
  • 추가로 2026년 11월 24일 부터 20 개 단위 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.

수량
한팩당
절감
1 - 15₩19,300.00-
16 - 31₩18,900.00₩6,400.00
32 +₩18,480.00₩26,240.00

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:
184-6452
제조사 부품 번호:
RDED-9P-LNA(55)
제조업체:
Hirose
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

Hirose

Number of Contacts

9

Product Type

D-Sub Connector

Current

3A

Orientation

Right Angle

Mount Type

Through Hole

Connector Gender

Male

Connector Type D

D-Sub

D-Sub Shell Size

E

Housing Material

PBT

Voltage

350V, 490V

Termination Type

Solder

Minimum Operating Temperature

-55°C

Contact Gender

Male

Maximum Operating Temperature

85°C

Standards/Approvals

No

Contact Plating

Nickel, Gold

Contact Material

Phosphor Bronze

Series

RDBD

Pitch

2.74mm

COO (Country of Origin):
JP
The RD˞D Series use a molded one-piece design for parallel mounting on a PCB. Designed to be directly connected to the circuits in PCBs, the RD-D Series is suitable for labor-saving in connection work and en- hancing the reliability of wiring. 9, 15, 25, and 37-contact models available. (37- contact) :Female connector only

Compact and sturdy due to a metal shell.

Simple construction of RD type single mold.

Offers direct parallel mounting on PCBs in high density and easily connectable to a cable plug.

Gold plated for contact area and mounting area.

A wide variety of combinations available, such as dip soldering (HD), crimping (CD), and ribbon IDC termination (FD).

Uses insulation of highly heat-resistant and chemical resistant synthetic resin.

Meets your application requirements with a variety of accessories.

Application

Most suitable for modems in communications equipment such as computers, peripherals and terminals, control equipment, measuring instruments, and export equipment.
