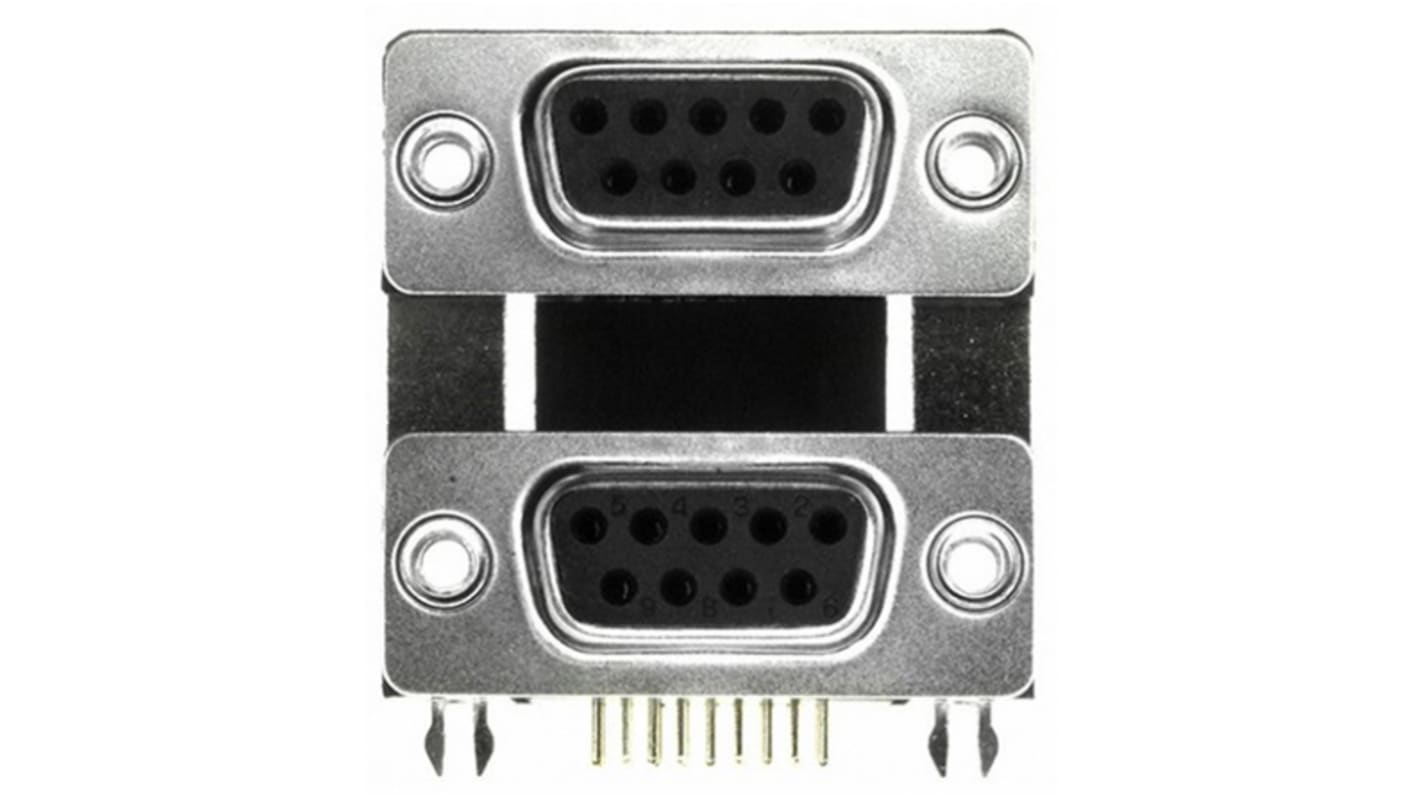

Norcomp 189 9 Right Angle 9 2.769 mm Pitch PCB D-Sub Connector, with 4 to 40 Insert
- RS 제품 번호:
- 135-4201
- 제조사 부품 번호:
- 189-009-513R571
- 제조업체:
- Norcomp
본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.
대량 구매 할인 기용 가능
Subtotal (1 unit)*
₩11,430.40
재고있음
- 62 개 단위 배송 준비 완료
- 추가로 2026년 3월 25일 부터 70 개 단위 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 - 24 | ₩11,430.40 |
| 25 - 49 | ₩11,186.00 |
| 50 - 249 | ₩10,847.60 |
| 250 - 499 | ₩10,659.60 |
| 500 + | ₩10,302.40 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 135-4201
- 제조사 부품 번호:
- 189-009-513R571
- 제조업체:
- Norcomp
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Norcomp | |
| Product Type | D-Sub Connector | |
| Current | 5A | |
| D-Sub Shell Size A | DA-9 | |
| Number of Contacts A | 9 | |
| Contact Gender A | Female | |
| Orientation | Right Angle | |
| Mount Type | PCB | |
| D-Sub Shell Size B | DB-9 | |
| Number of Contacts B | 9 | |
| Contact Gender B | Male | |
| Mounting Hardware | 4 to 40 Insert | |
| Housing Material | Steel | |
| Voltage | 1 kV | |
| Minimum Operating Temperature | -55°C | |
| Maximum Operating Temperature | 105°C | |
| Standards/Approvals | No | |
| Contact Plating | Gold | |
| Contact Material | Brass | |
| Series | 189 | |
| Pitch | 2.769mm | |
| 모두 선택 | ||
|---|---|---|
브랜드 Norcomp | ||
Product Type D-Sub Connector | ||
Current 5A | ||
D-Sub Shell Size A DA-9 | ||
Number of Contacts A 9 | ||
Contact Gender A Female | ||
Orientation Right Angle | ||
Mount Type PCB | ||
D-Sub Shell Size B DB-9 | ||
Number of Contacts B 9 | ||
Contact Gender B Male | ||
Mounting Hardware 4 to 40 Insert | ||
Housing Material Steel | ||
Voltage 1 kV | ||
Minimum Operating Temperature -55°C | ||
Maximum Operating Temperature 105°C | ||
Standards/Approvals No | ||
Contact Plating Gold | ||
Contact Material Brass | ||
Series 189 | ||
Pitch 2.769mm | ||
- COO (Country of Origin):
- TW
NorComp 189 Series Stacked D-Sub Connectors
189 series PCB mount D-sub connectors with right angle stacked dual ports ideal for maximizing available space on the PCB. These 189 series stacked d-sub connectors feature low cost, high performance gold plated stamped contacts. The shells of these dual port d-dub connectors are made from nickel plated steel with ground indents for improved shielding, grounding and retention. Boardlocks provide extra PCB retention and an option of 4-40 flush inserts (189-XXX-X13R491) or 4-40 hex standoffs (189-XXX-X13R571) provide secure mounting. These 189 series stacked d-sub connectors are available in a range of gender configurations, male/male, female/female, male/female, female/male and standard density 9, 15 and 25 sizes.
Features and Benefits
• Dual ports for PCB space saving
• High performance stamped, gold plated contacts
• Nickel plated steel shell for improved shielding
• Ground indents for improved grounding and extra retention
• High temperature UL94V-0 thermoplastic insulator (260°C process temperature)
• Boardlocks for secure retention on PCB
• Choice of mounting hardware
Product Application Information
These 189 series dual port d-sub connectors are ideal for use in applications where multiple connector ports are required within limited PCB space.
