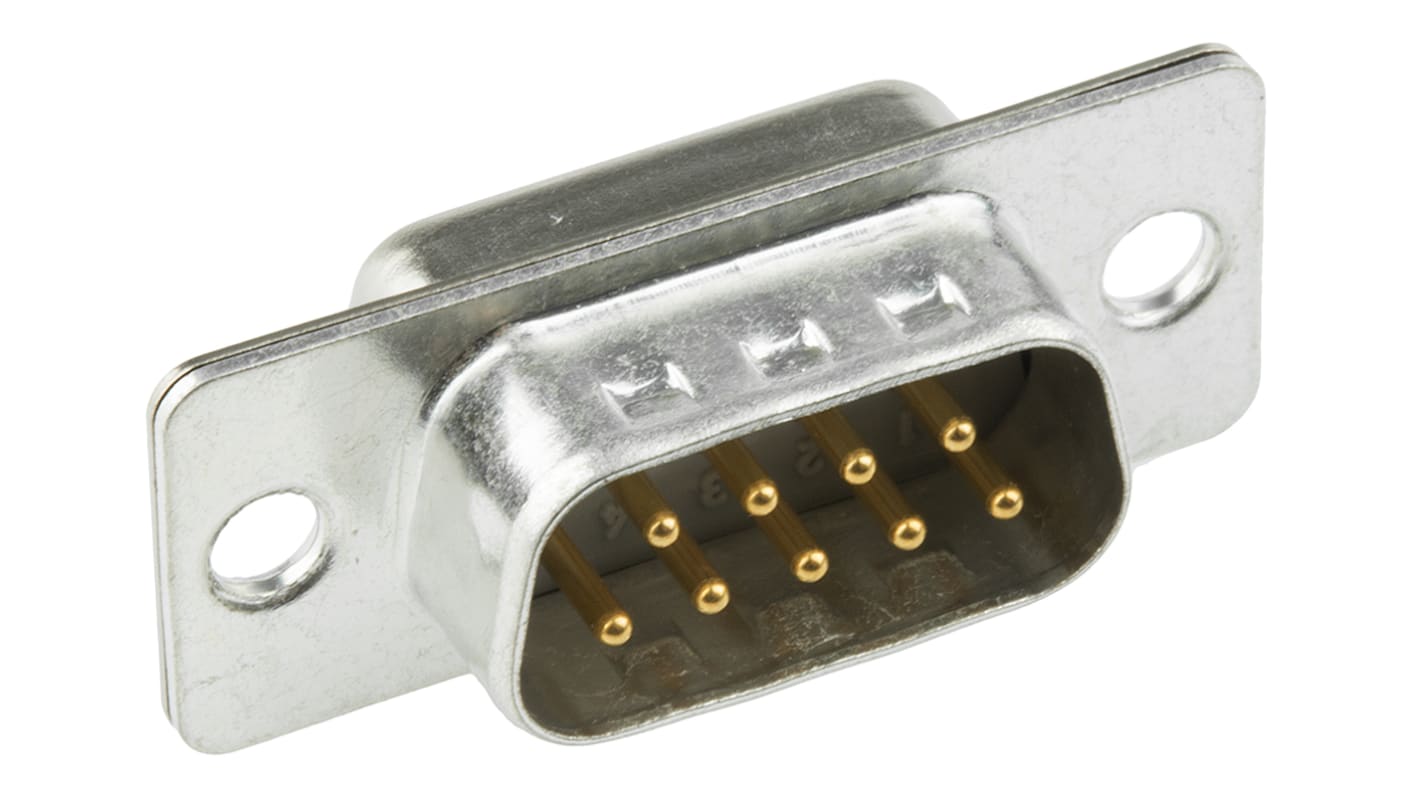

Cinch FD 9 Way Panel Mount D-sub Connector Plug, 2.76mm Pitch

모든 D Sub Connectors 열람하기
대량 구매 할인 기용 가능

Subtotal (1 unit)*

₩25,887.60

Add to Basket
수량 선택 또는 입력
재고있음
  • 284 개 단위 배송 준비 완료
  • 추가로 2026년 2월 03일 부터 4 개 단위 배송
  • 추가로 2026년 5월 14일 부터 250 개 단위 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량
한팩당
1 - 24₩25,887.60
25 - 74₩25,116.80
75 - 199₩24,346.00
200 - 399₩23,782.00
400 +₩23,368.40

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:
449-764
제조사 부품 번호:
FDE-9PTI2/1-LF
제조업체:
Cinch
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

Cinch

Number of Contacts

9

Gender

Male

Body Orientation

Straight

Mounting Type

Panel Mount

Pitch

2.76mm

D Connector Type

Filtered D-Sub

Termination Method

Solder

D-Sub Shell Size

E

Current Rating

5.0A

Housing Material

Steel

Voltage Rating

200 V ac/dc

Length

30.81mm

Width

12.55mm

Series

FD

Contact Material

Copper Alloy

Minimum Operating Temperature

-25.0°C

Maximum Operating Temperature

+125°C

COO (Country of Origin):
GB

Cinch Filter D-sub Plug and Socket Connectors with Solder Bucket Terminals


Filter D-Sub plug and socket connectors with solder bucket terminals and turned pin contacts with epoxy encapsulated tubular capacitors individually inserted into them for maxmum resistance to hazardous environments. The rear shell of these filter D connectors is made from electrolytic nickel and the front shell is made from steel with a bright tin finish, in addition, the filtered d-sub plug connectors have grounding indents on the front shell for EMI/RFI shielding. These filter D subminiature plug and socket connectors have a capacitance of 1000 pF and 3.05mm diameter mounting holes.

Standards

Meets relevant dimensional requirements of CECC-73301-802; MIL-C-24308; DIN-14652; BS-9523; F0013; BT-217; HE-501

Standards

CECC-73301-802; MIL-C-24308; DIN-41652; BS-9523; F0013; BT-217; HE-501


Cinch Filtered 'D' Connectors


Solder termination connection
Designed to limit cable borne EMI via a 1000pF capacitor from each contact to ground
Enhances rejection levels in VHF & UHF bands
Bright tin finish on steel backshells shields against RFI/EM and the potted construction allows use in hazardous environments
Gold plated turned pin contacts
High quality machined contact
Flammability rating: UL94V-0
Suitable for military, industrial or commercial applications and computer interfacing etc
