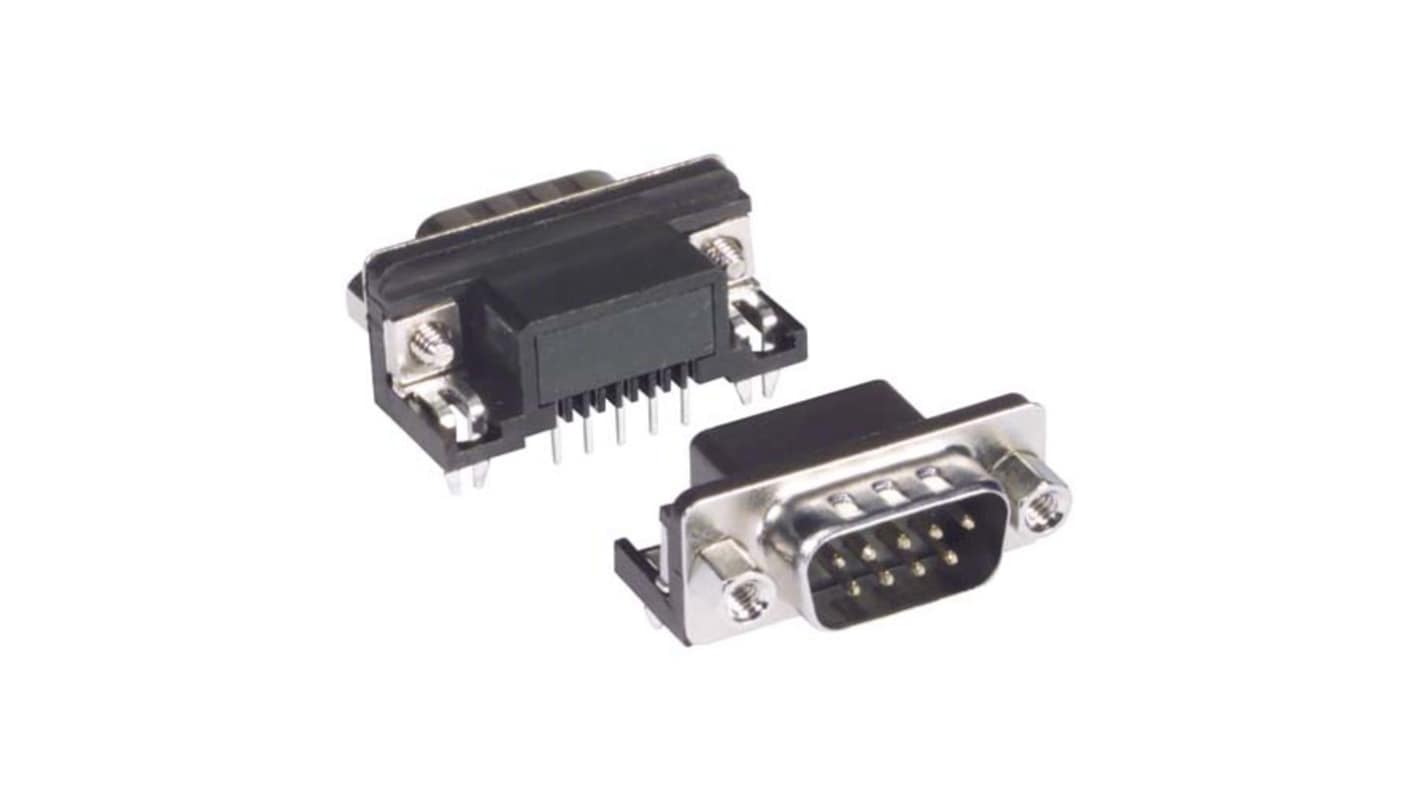

L-Com SD9 9 Way Right Angle 2.77 mm Pitch Screw D-Sub Connector, with Jack Screw Male
- RS 제품 번호:
- 297-880
- 제조사 부품 번호:
- SD9P-RA-PC
- 제조업체:
- L-Com
Subtotal (1 unit)*
₩54,540.00
재고있음
- 추가로 2026년 8월 17일 부터 4 개 단위 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 + | ₩54,540.00 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 297-880
- 제조사 부품 번호:
- SD9P-RA-PC
- 제조업체:
- L-Com
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | L-Com | |
| Product Type | D-Sub Connector | |
| Number of Contacts | 9 | |
| Orientation | Right Angle | |
| Current | 1A | |
| Mount Type | Screw | |
| Connector Gender | Male | |
| Connector Type D | D-Sub | |
| D-Sub Shell Size | 1 | |
| Mounting Hardware | Jack Screw | |
| Housing Material | Cold Rolled Steel | |
| Voltage | 1000Vrms | |
| Termination Type | Solder | |
| Minimum Operating Temperature | -55°C | |
| Maximum Operating Temperature | 105°C | |
| Contact Gender | Male | |
| Standards/Approvals | RoHS | |
| Series | SD9 | |
| Contact Material | Brass | |
| Contact Plating | Gold Flash | |
| Pitch | 2.77mm | |
| 모두 선택 | ||
|---|---|---|
브랜드 L-Com | ||
Product Type D-Sub Connector | ||
Number of Contacts 9 | ||
Orientation Right Angle | ||
Current 1A | ||
Mount Type Screw | ||
Connector Gender Male | ||
Connector Type D D-Sub | ||
D-Sub Shell Size 1 | ||
Mounting Hardware Jack Screw | ||
Housing Material Cold Rolled Steel | ||
Voltage 1000Vrms | ||
Termination Type Solder | ||
Minimum Operating Temperature -55°C | ||
Maximum Operating Temperature 105°C | ||
Contact Gender Male | ||
Standards/Approvals RoHS | ||
Series SD9 | ||
Contact Material Brass | ||
Contact Plating Gold Flash | ||
Pitch 2.77mm | ||
제외
- COO (Country of Origin):
- CN
The L-Com connector is designed for seamless integration in various applications, offering unparalleled reliability and performance. The robust construction of the connector ensures durability, while the precision engineered specifications provide consistent and optimal functionality. Crafted with high quality materials, it is specifically tailored for dependable connectivity in demanding environments. Its design prioritises user friendliness, making installation straightforward and efficient.
Connector features a nickel plated shell for enhanced resistance to corrosion
Compliant materials meet RoHS standards aligning with environmental responsibility
Connector is designed to maintain insulation resistance of 500 mega ohms minimum at DC 500V
