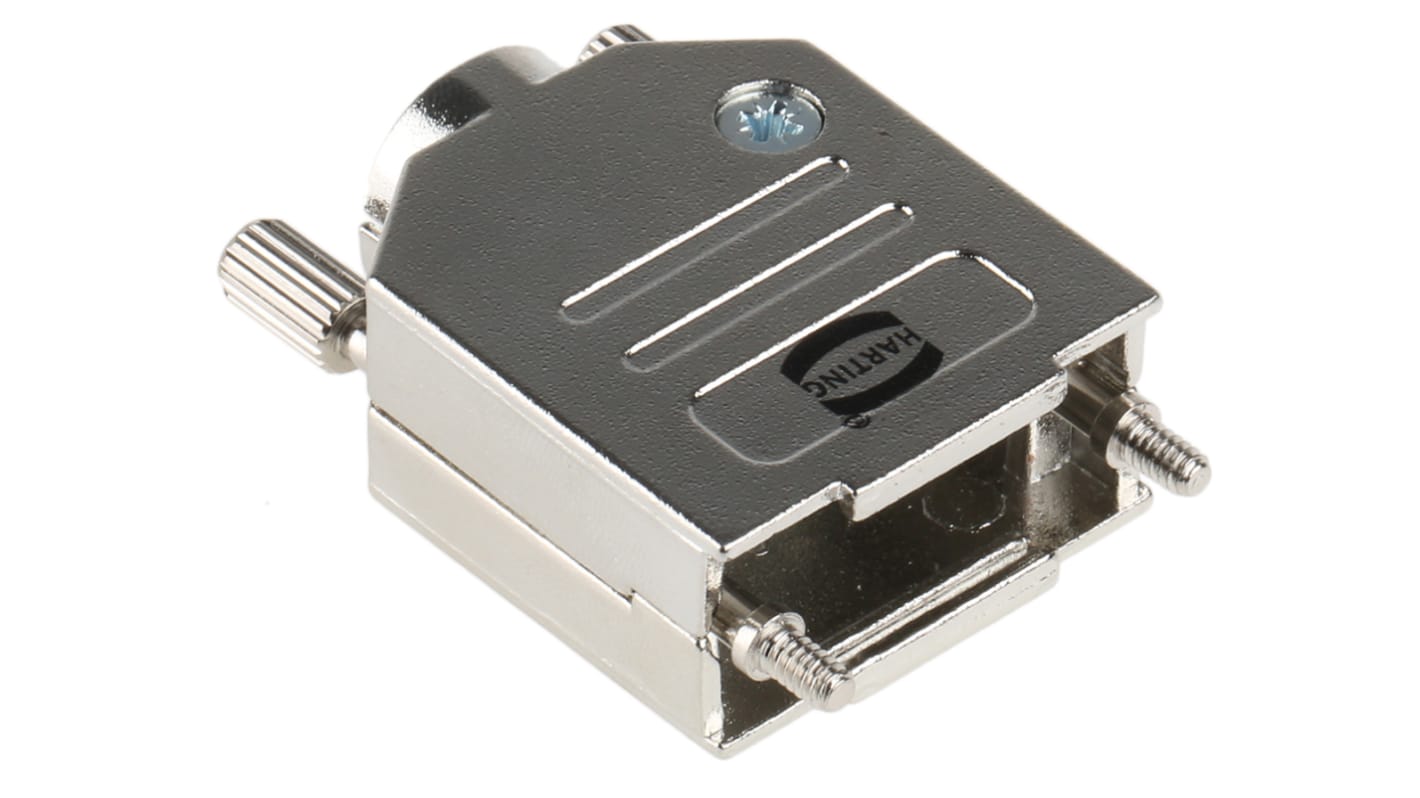

HARTING D-Sub Series Metal Straight D-Sub Backshell, 9 Way Strain Relief

본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.

모든 D Sub Backshells 열람하기
대량 구매 할인 기용 가능

Subtotal (1 Box of 10 units)*

₩118,696.50

Add to Basket
수량 선택 또는 입력
재고있음
  • 500 개 단위 배송 준비 완료
  • 추가로 2026년 5월 14일 부터 20 개 단위 배송
  • 추가로 2026년 6월 04일 부터 1,050 개 단위 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.

수량
한팩당
Per Box*
10 - 10₩11,869.65₩118,696.50
20 - 30₩11,573.25₩115,732.50
40 +₩11,395.80₩113,958.00

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:
923-0635
제조사 부품 번호:
09670090343
제조업체:
HARTING
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

HARTING

Number of Contacts

9

Product Type

D-Sub Backshell

Housing Material

Metal

D-Sub Shell Size

E

Connector Type D

D-Sub Backshell

Orientation

Straight

Colour

Silver

Strain Relief

Yes

Series

D-Sub

IP Rating

IP67

Housing Plating

Metallised

Standards/Approvals

No

COO (Country of Origin):
SE

Harting D-Sub Series D-Sub Backshell, Silver Colour, Metal Housing - 9670090343


This D-sub backshell provides a robust, protective enclosure for 9-contact D-Sub connectors used in industrial wiring and control systems. It offers mechanical strain relief and environmental protection for cable–connector transitions, suited to applications where a Durable metallic housing and secure straight cable exit are required.

Features & Benefits


• Metal housing with metallised finish gives corrosion-resistant protection
• IP67-rated sealing affords dust-tight and temporary immersion protection
• E-size Shell accommodates 9 contacts for Compact connector assemblies
• Straight orientation enables direct cable routing with reduced bend stress
• Integrated strain relief secures cable ends to prevent conductor movement

**Applications**


• Suitable for automation control cabinets requiring sealed cable entries
• Ideal for factory-floor instrumentation with frequent washdown procedures
• Used with panel-mounted serial interfaces in electrical systems
• Can be used for fieldbus or signal wiring in mechanical assemblies
• Used for retrofit shielding upgrades on industrial connector installations

What material properties contribute to mechanical robustness?


The housing is manufactured from metal and finished with a metallised plating that improves surface abrasion resistance and enhances longevity under repeated handling.

How does the connector manage environmental sealing around the cable?


Sealing to IP67 is achieved through gasketed interfaces within the backshell and a secure clamp that stabilises the cable while maintaining ingress protection.

Which cable exit style does it support and what is the benefit?


The backshell uses a straight exit orientation, which minimises lateral stress on conductors and simplifies routing in confined installations.

How many contact positions can be accommodated and why is that useful?


It is designed for nine contact positions, enabling Compact signal configurations where multiple conductors must be terminated within a small footprint.

Standards

IEC 60 807
