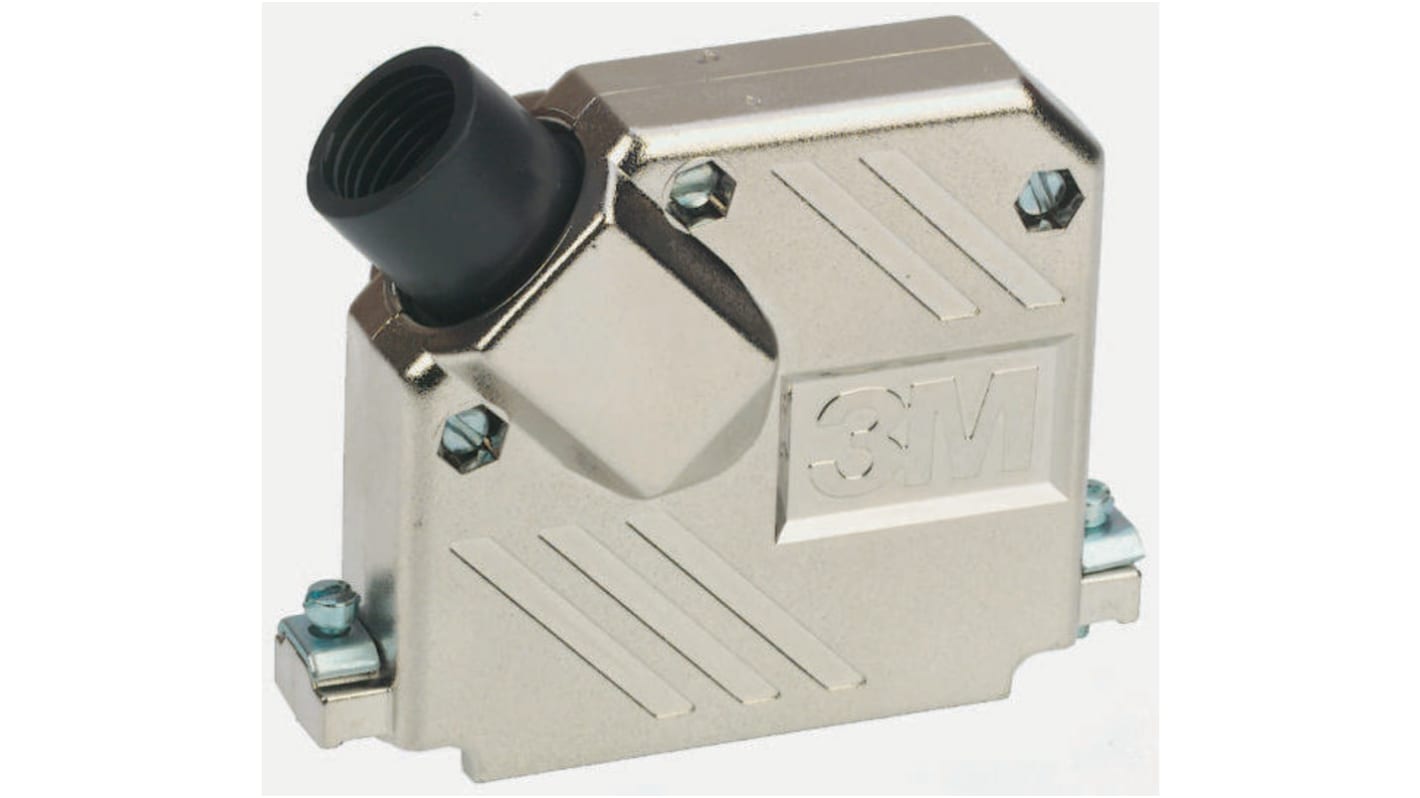

3M 3357 Series ABS Angled D Sub Backshell, 37 Way
- RS 제품 번호:
- 542-7797
- Distrelec 제품 번호:
- 144-17-631
- 제조사 부품 번호:
- 3357-6537-1C
- 제조업체:
- 3M
본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.
대량 구매 할인 기용 가능
Subtotal (1 unit)*
₩12,069.60
재고있음
- 997 개 단위 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 - 24 | ₩12,069.60 |
| 25 - 74 | ₩11,712.40 |
| 75 - 199 | ₩11,336.40 |
| 200 - 399 | ₩11,129.60 |
| 400 + | ₩10,941.60 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 542-7797
- Distrelec 제품 번호:
- 144-17-631
- 제조사 부품 번호:
- 3357-6537-1C
- 제조업체:
- 3M
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | 3M | |
| Number of Contacts | 37 | |
| D-Sub Shell Size | C | |
| Housing Material | ABS | |
| Body Orientation | Angled | |
| Series | 3357 | |
| 모두 선택 | ||
|---|---|---|
브랜드 3M | ||
Number of Contacts 37 | ||
D-Sub Shell Size C | ||
Housing Material ABS | ||
Body Orientation Angled | ||
Series 3357 | ||
- COO (Country of Origin):
- DE
3M Metallised Plastic Backshells
From 3M, this metallised D-SUB connector backshell is a hard case designed to house D-Sub connector components. It is robust and light weight, and an integral part of the D connector design.
Features and Benefits
• Metallised plastic shells accept round ribbon cable
• 2 part covers UL94V-0 rated with 45° cable entry
• Ensures protection from EMI/ESD
• 2 part covers UL94V-0 rated with 45° cable entry
• Ensures protection from EMI/ESD
Applications
This D-Sub connector is designed to be used with round ribbon cable and can be easily terminated to the cable. As part of a complete cable system, they are often used in internal and external wiring in electronic devices, particularly in computing and robotics.
Available in this range:
What are D-Sub Connectors used for?
D-sub connectors are used in a variety of electronics applications, and are frequently found in heavy duty computing systems such as in hospital equipment and industrial computers. They are also common in personal and office computing systems.
They are a robust connector that offer a secure connection, meaning they are suitable for use in more challenging environments.
They are a robust connector that offer a secure connection, meaning they are suitable for use in more challenging environments.
Why choose 3M?
3M is a trusted name in connector and wiring solutions, providing high quality cables, connectors and accessories. From industrial computing to domestic applications, 3M provides the reliable and versatile product range you need.
Supplied with
A selection of cable compression inserts, cover nuts/screws and a pair of saddle washers and captive screws.
