TE Connectivity 207473 Series Thermoplastic, Polypropylene Straight D-Sub Backshell, 37 Way

모든 D Sub Backshells 열람하기

Subtotal (1 unit)*

₩26,526.80

Add to Basket
수량 선택 또는 입력
재고있음
  • 추가로 2026년 2월 23일 부터 20 개 단위 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량
한팩당
1 +₩26,526.80

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:
450-9185
Distrelec 제품 번호:
302-67-164
제조사 부품 번호:
207473-1
제조업체:
TE Connectivity
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

TE Connectivity

Product Type

D-Sub Backshell

Number of Contacts

37

Housing Material

Thermoplastic, Polypropylene

D-Sub Shell Size

C

Connector Type D

D-Sub Backshell

Orientation

Straight

Colour

Black

Series

207473

Standards/Approvals

No

AMPLIMITE D-Sub Connector, HDP Series, Unshielded Box and Lid Backshells

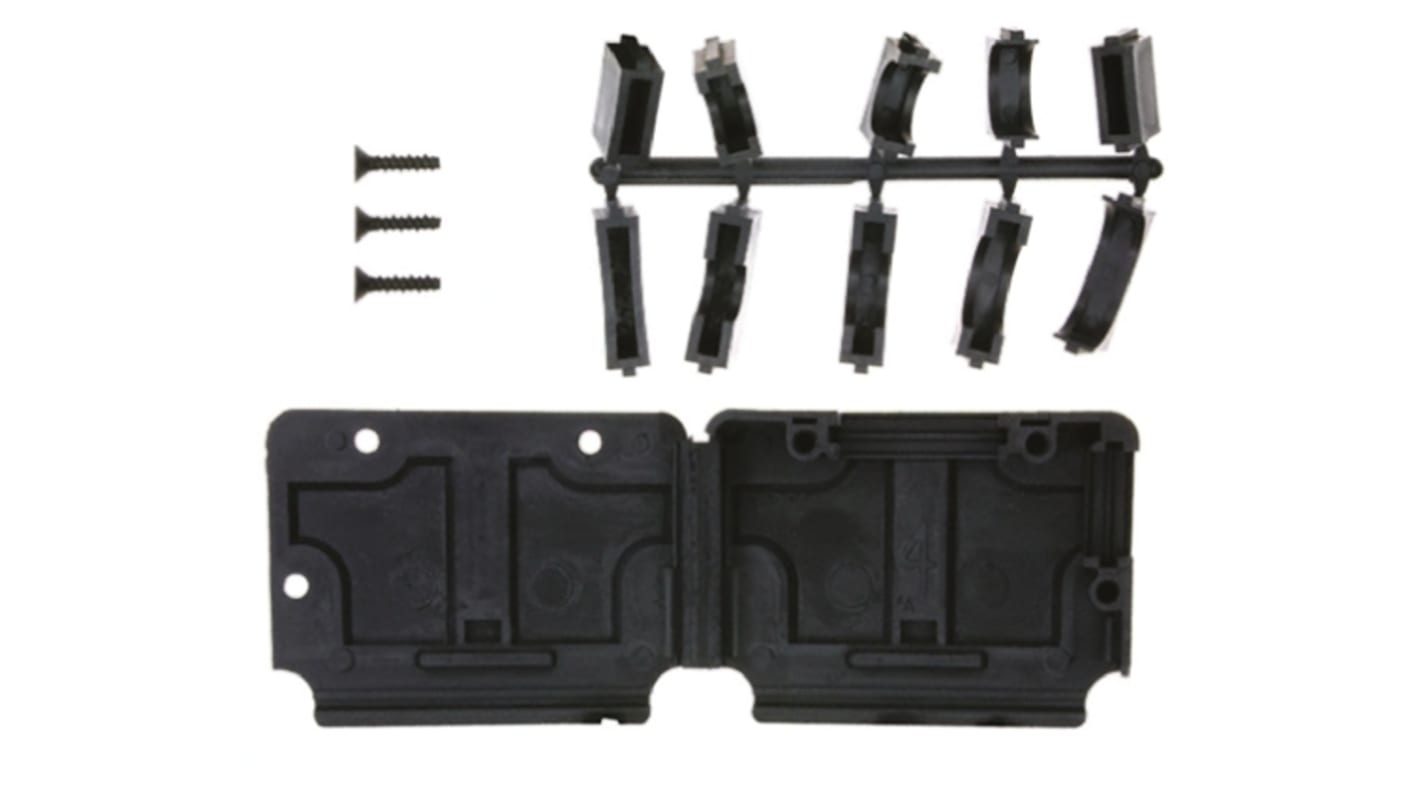

AMPLIMITE unassembled hinged box and lid unshielded cable clamps or backshell kits with a 180 and 90° cable exit option. These AMPLIMITE box and lid unshielded backshells have black thermoplastic housings with a textured finish, black thermoplastic gates and black zinc plated steel flat head screws. The cable diameter of these AMPLIMITE box and lid backshells can be adjusted by changing the cable support gates. The flat side of the cable support gates are for use with discrete wire and the semicircle side for use with jacketed cable. These AMPLIMITE backshells are for use with HDP Metal-Shell series d-sub connectors.

For male screw retainers see stock numbers 450-9208 and 717-4498 typically.

For female screwlocks see stock numbers 717-4543, 450-9270 and 717-4546 typically.

For locking post assembly see stock number 450-9365

For spring latches see stock number 450-9321

For latching blocks see stock numbers 450-9371 and 680-9392 typically.

TE Connectivity AMPLIMITE D-Subminiature Connectors
