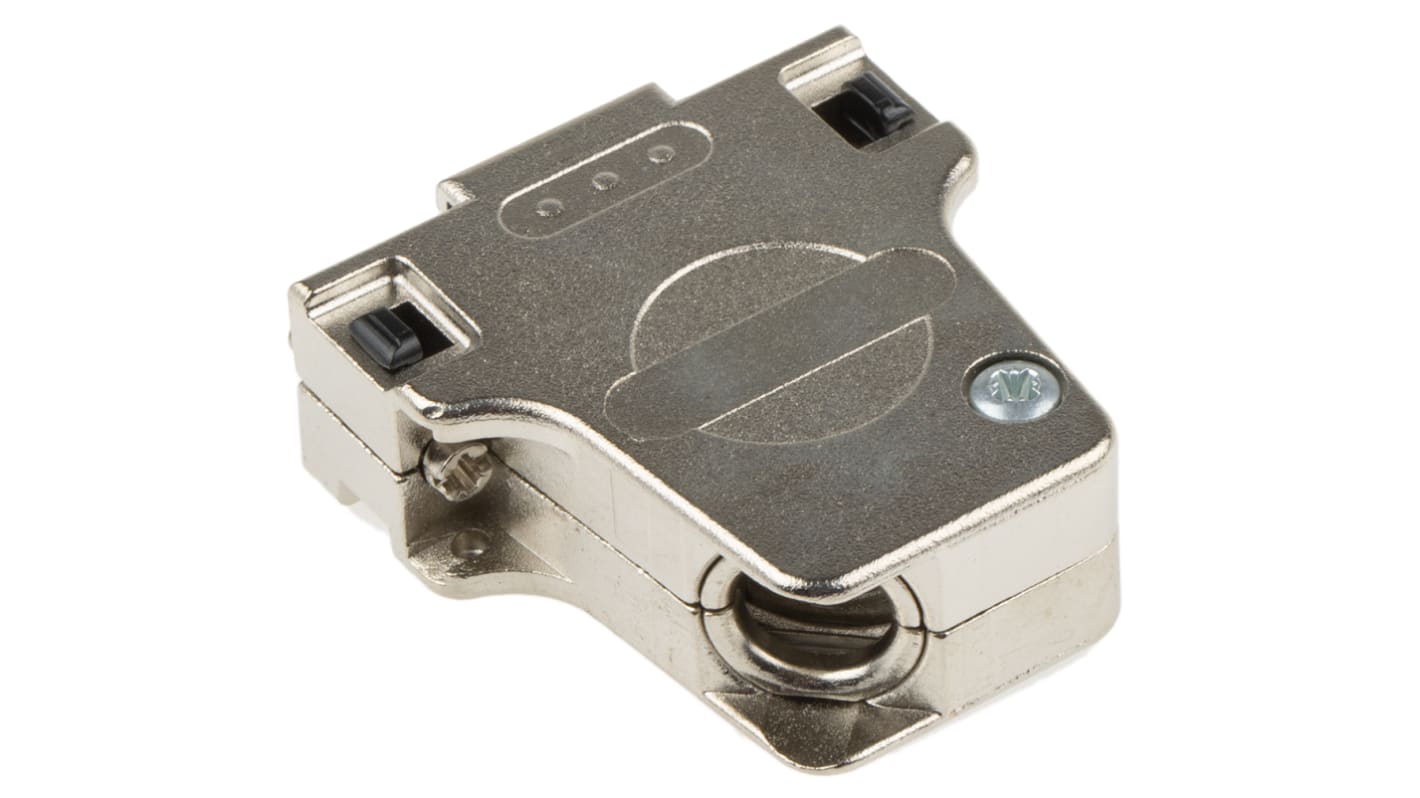

Phoenix Contact DSSC Series Die Cast Zinc Right Angle D-Sub Backshell, 15 Way Strain Relief
- RS 제품 번호:
- 144-9729
- 제조사 부품 번호:
- 1419725
- 제조업체:
- Phoenix Contact
대량 구매 할인 기용 가능
Subtotal (1 unit)*
₩21,138.00
재고있음
- 55 개 단위 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 - 9 | ₩21,138.00 |
| 10 - 49 | ₩20,475.00 |
| 50 - 99 | ₩19,870.50 |
| 100 - 249 | ₩19,402.50 |
| 250 + | ₩18,993.00 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 144-9729
- 제조사 부품 번호:
- 1419725
- 제조업체:
- Phoenix Contact
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Phoenix Contact | |
| Number of Contacts | 15 | |
| Product Type | D-Sub Backshell | |
| Housing Material | Die Cast Zinc | |
| D-Sub Shell Size | A | |
| Connector Type D | D-Sub Backshell | |
| Orientation | Right Angle | |
| Colour | Grey | |
| Strain Relief | Yes | |
| IP Rating | IP20 | |
| Series | DSSC | |
| Housing Plating | Nickel | |
| Standards/Approvals | No | |
| 모두 선택 | ||
|---|---|---|
브랜드 Phoenix Contact | ||
Number of Contacts 15 | ||
Product Type D-Sub Backshell | ||
Housing Material Die Cast Zinc | ||
D-Sub Shell Size A | ||
Connector Type D D-Sub Backshell | ||
Orientation Right Angle | ||
Colour Grey | ||
Strain Relief Yes | ||
IP Rating IP20 | ||
Series DSSC | ||
Housing Plating Nickel | ||
Standards/Approvals No | ||
- COO (Country of Origin):
- DE
Phoenix Contact D-Sub Connector Hoods - Straight & Angled Cable Outlets - 14419724
From Phoenix Contact, a range of straight and angled diecast zinc D-Sub connector housings. The IP20 hoods feature a large inner interior making them suitable for D-Sub connectors with special contacts. The IP20 D-Sub hoods have a cable strain relief with a 3.0 mm to 9.5 mm external cable diameter. The robust hoods are easily assembled and mounted with the pre-assembled locking screws making them ideal for harsh environments.
Features and Benefits
• IP20 ingress protection, this means that these connectors housings are protected against solid objects up to 12 mm
• Antimagnetic metal sleeve housing
• Bare metallic in colour
• Suitable for harsh industrial environments and conditions due to their strong, sturdy, metal design
• Easy mounting with pre-assembled locking screws
• Straight or angled cable exit points
• Suitable for D-SUB connectors with special contacts, facilitated by the large interior
