HOBUT CT140 Series Current Transformer 630 A 50 to 126 :1 2.5 VA 31 mm Bore
- RS 제품 번호:
- 914-5326
- 제조사 부품 번호:
- CT140F-600/5-2.5/1-31
- 제조업체:
- HOBUT
Subtotal (1 unit)*
₩78,189.20
재고있음
- 12 개 단위 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 + | ₩78,189.20 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 914-5326
- 제조사 부품 번호:
- CT140F-600/5-2.5/1-31
- 제조업체:
- HOBUT
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | HOBUT | |
| Product Type | Current Transformer | |
| Series | CT140 | |
| Power Rating | 2.5VA | |
| Secondary Current | 5 A | |
| Terminal Type | Terminal Cover | |
| Minimum Operating Temperature | 30°C | |
| Primary Current | 630A | |
| Maximum Operating Temperature | 80°C | |
| Depth | 45mm | |
| Length | 140mm | |
| Standards/Approvals | IEC 60044-1, IEC185, BS 7626, BSEN 60044-1 | |
| Width | 140 mm | |
| Maximum Operating Frequency | 60Hz | |
| Mount Type | Foot, DIN Rail | |
| Turns Ratio | 50 to 126 :1 | |
| Bore Size | 31 mm | |
| Minimum Operating Frequency | 50Hz | |
| 모두 선택 | ||
|---|---|---|
브랜드 HOBUT | ||
Product Type Current Transformer | ||
Series CT140 | ||
Power Rating 2.5VA | ||
Secondary Current 5 A | ||
Terminal Type Terminal Cover | ||
Minimum Operating Temperature 30°C | ||
Primary Current 630A | ||
Maximum Operating Temperature 80°C | ||
Depth 45mm | ||
Length 140mm | ||
Standards/Approvals IEC 60044-1, IEC185, BS 7626, BSEN 60044-1 | ||
Width 140 mm | ||
Maximum Operating Frequency 60Hz | ||
Mount Type Foot, DIN Rail | ||
Turns Ratio 50 to 126 :1 | ||
Bore Size 31 mm | ||
Minimum Operating Frequency 50Hz | ||
- COO (Country of Origin):
- GB

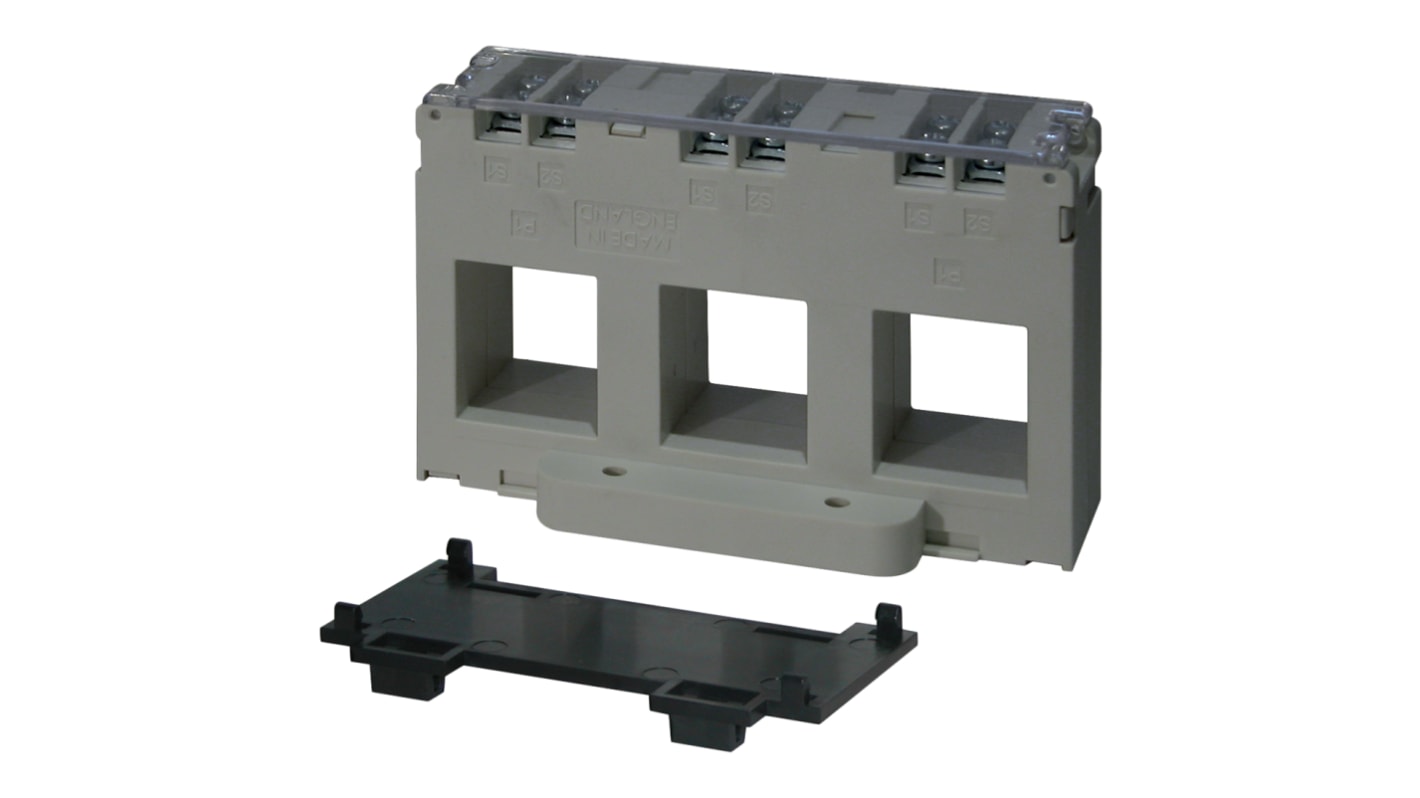

Miniature 3 Phase Current Transformers- CT140 Series
A range of miniature 3 phase current transformers suitable for primary ranges from 250A to 630A with 5A secondary. The CT140 series are supplied with terminal covers and a choice of fixings.
• Foot mounting
• For installation onto cables or 31 mm max. busbars
• 140 mm width allows direct installation on top of moulded case circuit breakers
• Continuous current- 1.2 x rated current
• Insulation level 3 kV for 1 min
• Conforms to IEC185, BS 7626, BSEN 60044-1and IEC 60044-1
Current Transformers
