모두 선택	제품 정보	값
	브랜드	ABB
	Product Type	Current Transformer
	Series	CT MAX
	Secondary Current	5 A
	Primary Current	6000A
	Minimum Operating Temperature	-25°C
	Maximum Operating Temperature	50°C
	Standards/Approvals	IEC EN 61010-1, CEI 411.1.4.3, IEC 60364, CEI 64-8-4, CEI 411.2, IEC 473.1.4, CEI 473.2.3, IEC 556.3, CEI 411.5.2, IEC EN 60044-1
	Weight	3kg
	Maximum Operating Frequency	60Hz
	Mount Type	DIN Rail, Wall, Busbar, Cable
	Bore Size	30 mm
	Minimum Operating Frequency	50Hz

	모두 선택
	브랜드 ABB
	Product Type Current Transformer
	Series CT MAX
	Secondary Current 5 A
	Primary Current 6000A
	Minimum Operating Temperature -25°C
	Maximum Operating Temperature 50°C
	Standards/Approvals IEC EN 61010-1, CEI 411.1.4.3, IEC 60364, CEI 64-8-4, CEI 411.2, IEC 473.1.4, CEI 473.2.3, IEC 556.3, CEI 411.5.2, IEC EN 60044-1
	Weight 3kg
	Maximum Operating Frequency 60Hz
	Mount Type DIN Rail, Wall, Busbar, Cable
	Bore Size 30 mm
	Minimum Operating Frequency 50Hz

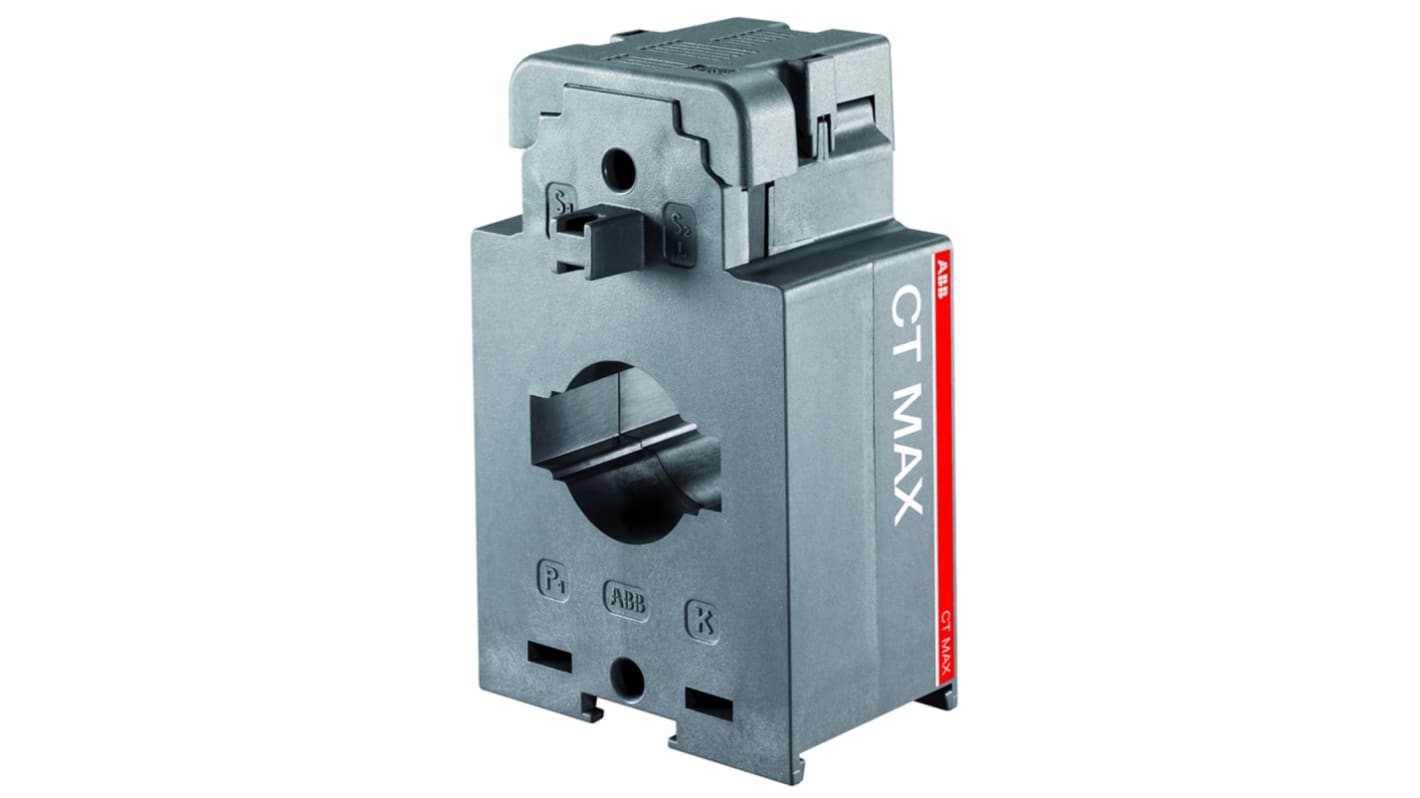

ABB CT MAX Current Transformer

The CT MAX range of current transformers has been specially designed for easy and safe switchboard installation, testing and maintenance operations thanks to the compact size of the products and their flexible assembly system.

These current transformers are designed to be part of metering systems, where they are used to allow indirect measuring

of electrical parameters of the network.

Compact dimensions for flexible installation

DIN rail, cable or busbar installation

5A standard secondary current

IP30 protection

수량	한팩당
1 - 4	₩63,758.32
5 - 9	₩61,209.04
10 +	₩58,657.88

ABB CT MAX Series Current Transformer 6000 A 30 mm Bore

ABB CT MAX Current Transformer
