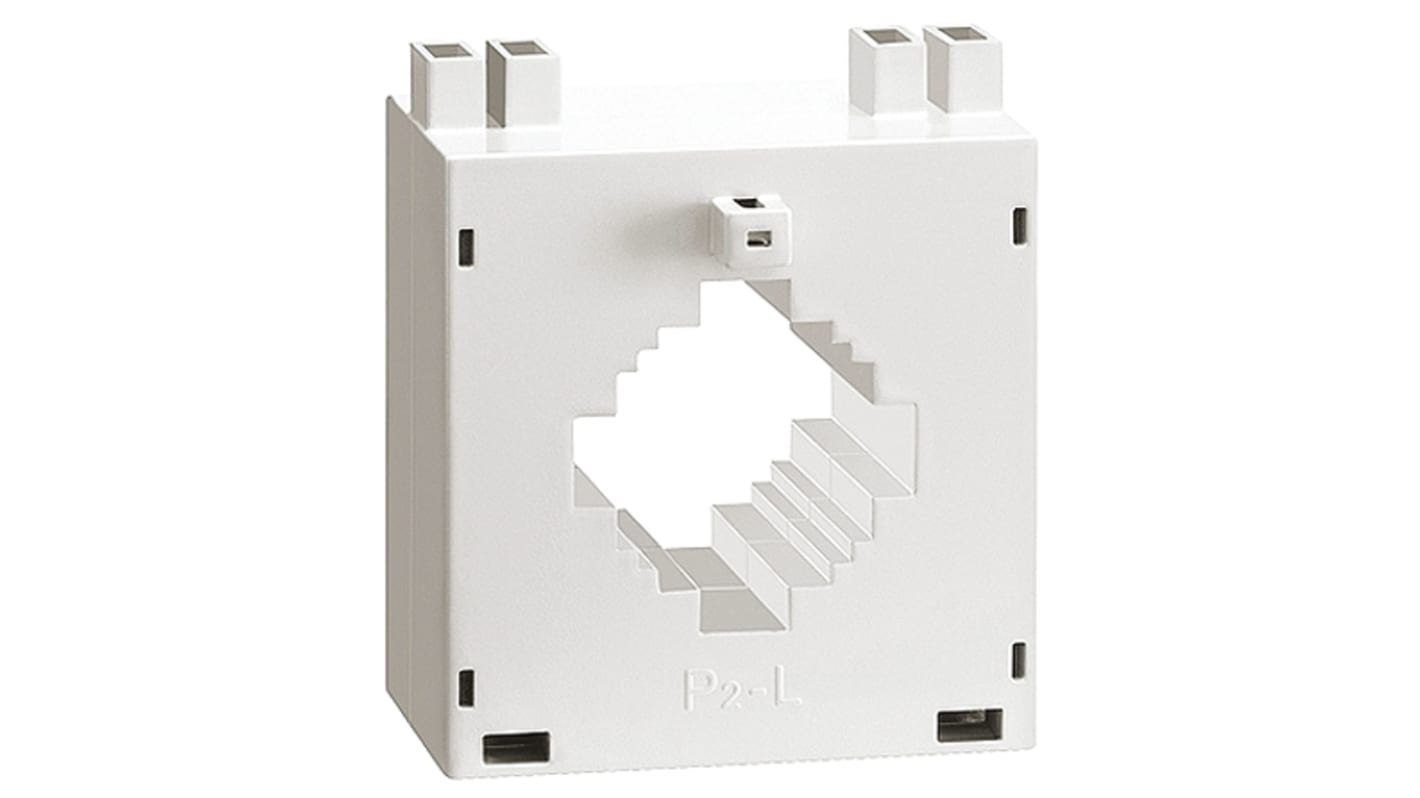

Lovato DM Series Base Mounted Current Transformer, 500:5, 30mm Bore
- RS 제품 번호:
- 833-2768
- 제조사 부품 번호:
- DM3T0500
- 제조업체:
- Lovato
Subtotal (1 unit)*
₩53,083.68
일시적 품절
- 2026년 1월 26일 부터 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 + | ₩53,083.68 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 833-2768
- 제조사 부품 번호:
- DM3T0500
- 제조업체:
- Lovato
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Lovato | |
| Current Ratio | 500:5 | |
| Bore Size | 30mm | |
| Series | DM | |
| Transformer Type | Base Mounted | |
| Overall Height | 81.5mm | |
| Overall Width | 71mm | |
| Overall Depth | 62.5mm | |
| Minimum Temperature | -25°C | |
| Maximum Temperature | +50°C | |
| Mounting Type | Base Mounted | |
| 모두 선택 | ||
|---|---|---|
브랜드 Lovato | ||
Current Ratio 500:5 | ||
Bore Size 30mm | ||
Series DM | ||
Transformer Type Base Mounted | ||
Overall Height 81.5mm | ||
Overall Width 71mm | ||
Overall Depth 62.5mm | ||
Minimum Temperature -25°C | ||
Maximum Temperature +50°C | ||
Mounting Type Base Mounted | ||
해당 안됨
- COO (Country of Origin):
- CN
Lovato DM Series - Current Transformer, Output 5 A
The DM series current transformers are installed in electric installations to reduce the line current to a secondary value of 5 A, which is compatible with current inputs of digital multimeters or protection relays.
These are without primary winding and are used for high primary current values from 50 A upward.
The number of loops of the primary cable does not modify the accuracy but converts the primary current value proportional to secondary current.
These are without primary winding and are used for high primary current values from 50 A upward.
The number of loops of the primary cable does not modify the accuracy but converts the primary current value proportional to secondary current.
Secundary output current 5 A
Operating frequenz is 50-60 Hz
The terminals are:
- Faston for DM2T and DM3T types
- Screw for DM0T and DM4T types
IP30 protection
Base mounting or DIN rail mounting with the supplied fixing element
Current Transformers
