Phoenix Contact MCR-SL-CUC-300-I Series Current Transformer 300 A 24 V dc 32 mm Bore
- RS 제품 번호:
- 801-6283
- Distrelec 제품 번호:
- 302-22-020
- 제조사 부품 번호:
- 2308043
- 제조업체:
- Phoenix Contact

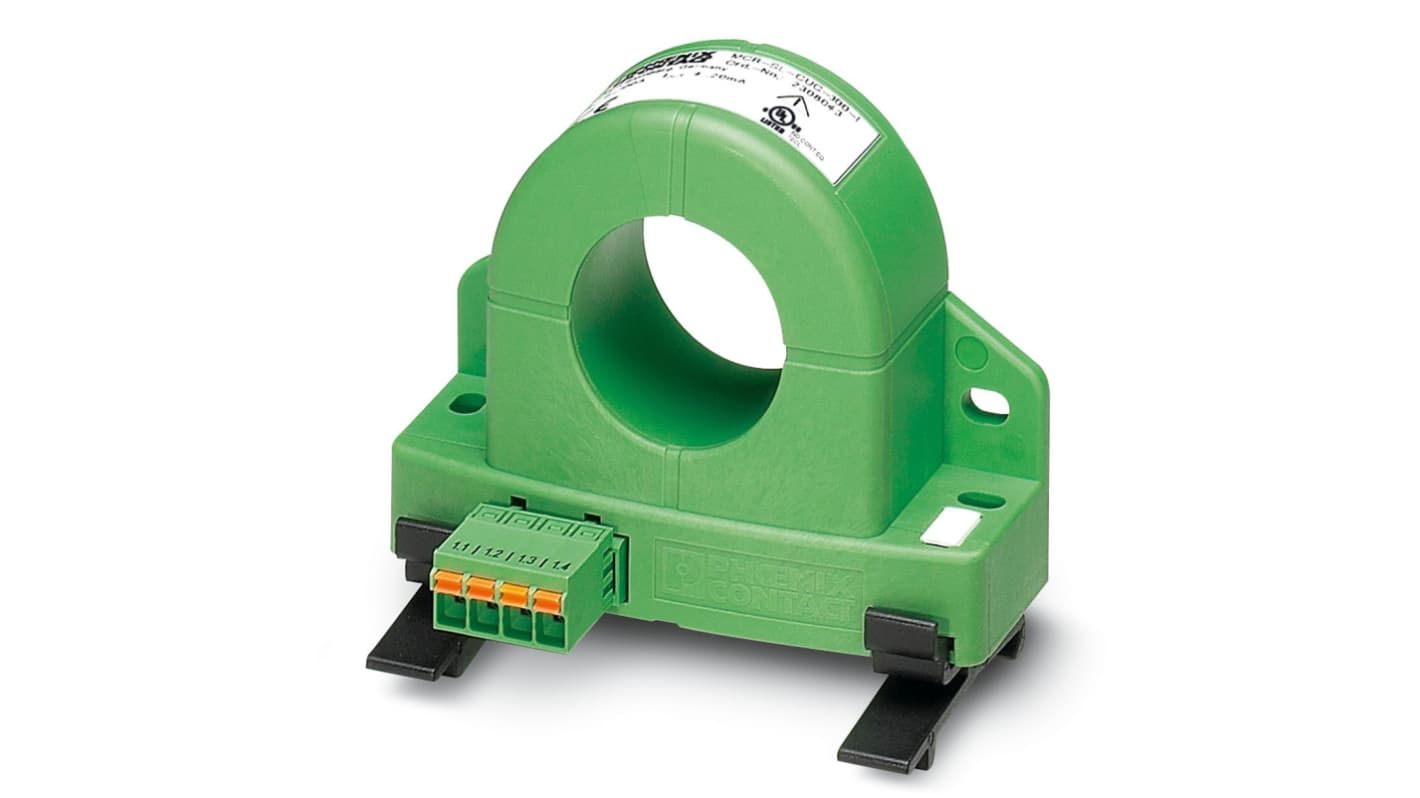

본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.
Subtotal (1 unit)*
₩531,551.20
재고있음
- 3 개 단위 배송 준비 완료
- 추가로 2026년 3월 20일 부터 5 개 단위 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 + | ₩531,551.20 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 801-6283
- Distrelec 제품 번호:
- 302-22-020
- 제조사 부품 번호:
- 2308043
- 제조업체:
- Phoenix Contact
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Phoenix Contact | |
| Product Type | Current Transformer | |
| Series | MCR-SL-CUC-300-I | |
| Secondary Current | 20 mA | |
| Terminal Type | Push-in | |
| Primary Current | 300A | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 65°C | |
| Standards/Approvals | cUL, EAC, UL, CE | |
| Weight | 291g | |
| Depth | 85mm | |
| Mount Type | DIN Rail | |
| Bore Size | 32 mm | |
| Supply Voltage | 24 V dc | |
| 모두 선택 | ||
|---|---|---|
브랜드 Phoenix Contact | ||
Product Type Current Transformer | ||
Series MCR-SL-CUC-300-I | ||
Secondary Current 20 mA | ||
Terminal Type Push-in | ||
Primary Current 300A | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 65°C | ||
Standards/Approvals cUL, EAC, UL, CE | ||
Weight 291g | ||
Depth 85mm | ||
Mount Type DIN Rail | ||
Bore Size 32 mm | ||
Supply Voltage 24 V dc | ||
- COO (Country of Origin):
- CN
Phoenix Contact Current Transformer, DIN Rail Mounting, 24V DC Supply Voltage - MCR-SL-CUC-300-I - 2308043
Need a way to quickly and reliably alter the current in your electrical setup? Choose this current transformer from Phoenix Contact. It accepts input currents between 0 and 300A and delivers an output current between 4 and 20mA, so it's a good choice for reducing the overall current in your system.
A supply voltage rating of 24V DC means the unit is ideal for use in low-power applications. Its frianyl housing is flame-retardant for safety in the event of a fire. Thanks to low power consumption of only 1.65W, it's an energy-efficient choice. As it's designed for mounting on a DIN rail, installation is quick and simple. A current transformer like this one is often used in commercial electrical settings, power distribution applications or generator stations.
Features & Benefits
• Current ratio of 300:1 for high transforming capability
• Broad operating temperature range between -40°C and +65°C for use in harsh environments
• Compact dimensions of 70 (H) x 90 (W) x 33.8mm (D) to add minimal bulk to your setup
• Fast step response of 150ms for maximum efficiency
