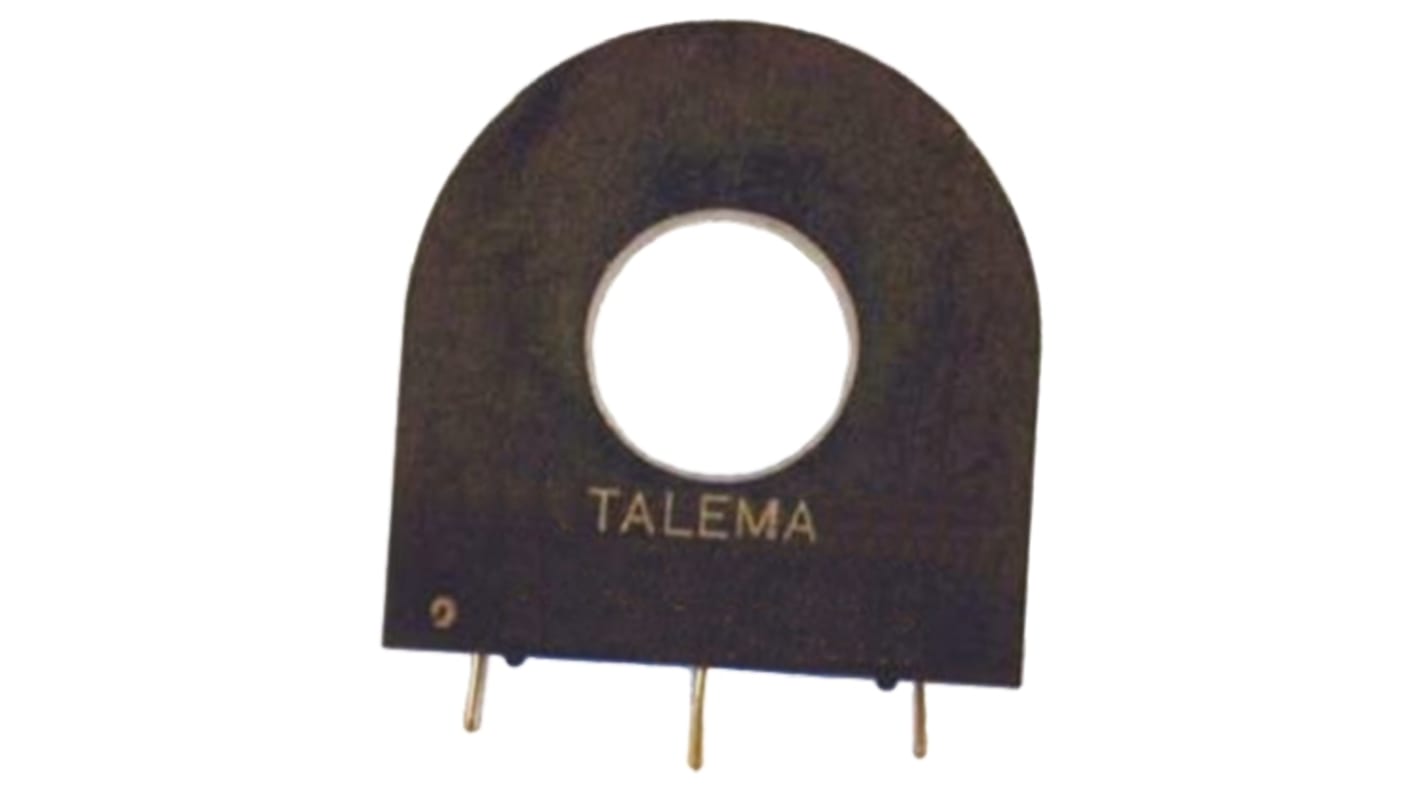

Nuvotem Talema ACX Series Current Transformer 100 A 2500:1
- RS 제품 번호:
- 775-4931
- 제조사 부품 번호:
- ACX-1100
- 제조업체:
- Nuvotem Talema
본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.
대량 구매 할인 기용 가능
Subtotal (1 unit)*
₩9,682.00
현재 액세스할 수 없는 재고 정보 - 나중에 다시 확인해 주세요.
수량 | 한팩당 |
|---|---|
| 1 - 9 | ₩9,682.00 |
| 10 - 24 | ₩9,437.60 |
| 25 - 71 | ₩9,212.00 |
| 72 - 143 | ₩8,986.40 |
| 144 + | ₩8,742.00 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 775-4931
- 제조사 부품 번호:
- ACX-1100
- 제조업체:
- Nuvotem Talema
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Nuvotem Talema | |
| Product Type | Current Transformer | |
| Series | ACX | |
| Primary DC Resistance | 135Ω | |
| Terminal Type | Wire | |
| Primary Current | 100A | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 85°C | |
| Depth | 11.12mm | |
| Weight | 50g | |
| Width | 34.9 mm | |
| Standards/Approvals | ANSI/ESD S20.20:2014, UL 94 V-0, BS EN 61340-5-1:2007 | |
| Mount Type | Through Hole | |
| Maximum Operating Frequency | 60Hz | |
| Turns Ratio | 2500:1 | |
| Minimum Operating Frequency | 50Hz | |
| 모두 선택 | ||
|---|---|---|
브랜드 Nuvotem Talema | ||
Product Type Current Transformer | ||
Series ACX | ||
Primary DC Resistance 135Ω | ||
Terminal Type Wire | ||
Primary Current 100A | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 85°C | ||
Depth 11.12mm | ||
Weight 50g | ||
Width 34.9 mm | ||
Standards/Approvals ANSI/ESD S20.20:2014, UL 94 V-0, BS EN 61340-5-1:2007 | ||
Mount Type Through Hole | ||
Maximum Operating Frequency 60Hz | ||
Turns Ratio 2500:1 | ||
Minimum Operating Frequency 50Hz | ||
Cable primary high accuracy current transformer
Primary current range 50-150A
1% accuracy
Operating frequency 50/60Hz
Turns ratio 2500:1
Rated burden resistance 33 Ω
Dielectric with stand voltage 4KVrms
Operating temperature range -40 to +85ºC
All materials UL94-V0
Low Cost Current Sense Transformers
