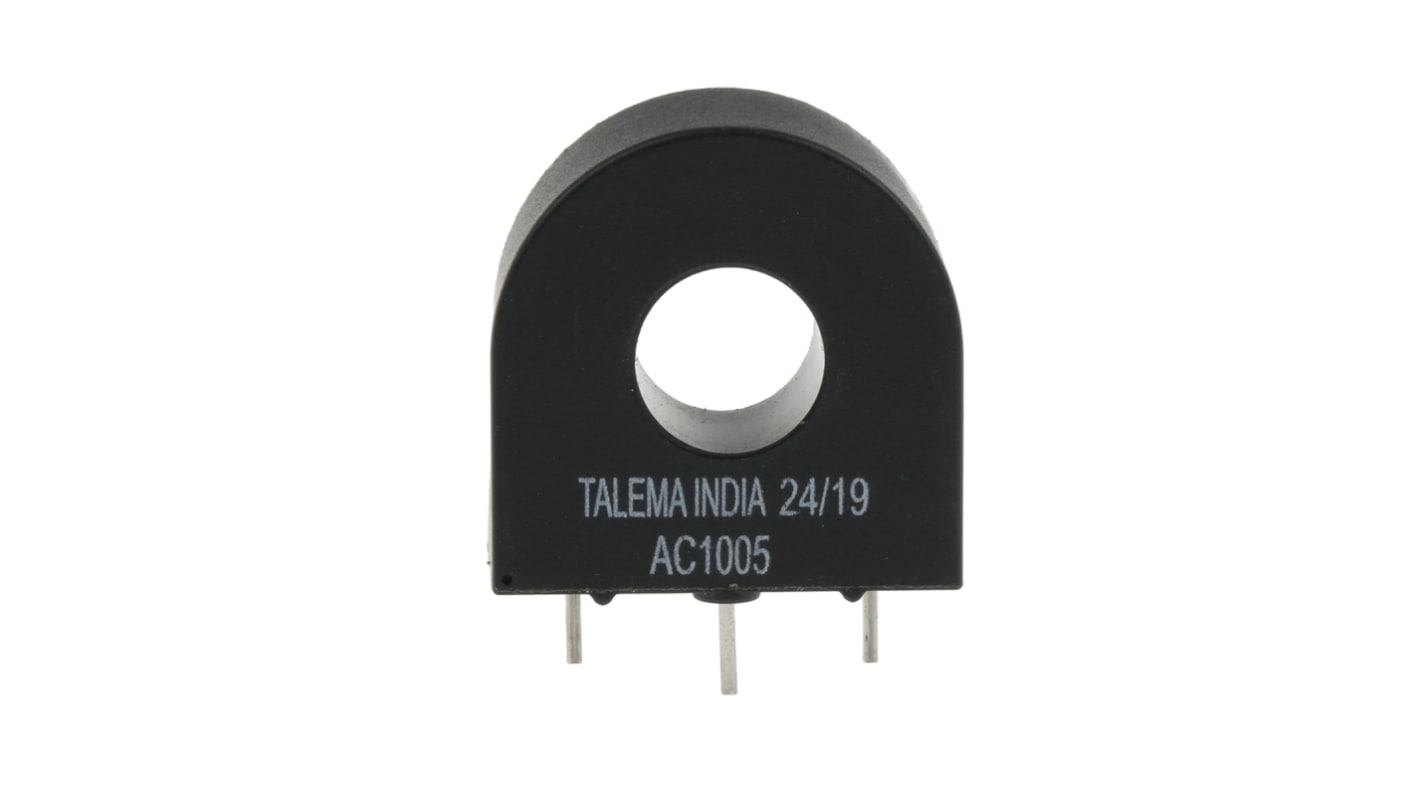

Nuvotem Talema AC-1 Series Current Transformer 5 A 1000:1
- RS 제품 번호:
- 537-4485
- 제조사 부품 번호:
- AC-1005
- 제조업체:
- Nuvotem Talema
대량 구매 할인 기용 가능
Subtotal (1 pack of 5 units)*
₩39,818.40
일시적 품절
- 2026년 12월 22일 부터 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 | 한팩당* |
|---|---|---|
| 5 - 5 | ₩7,963.68 | ₩39,818.40 |
| 10 - 20 | ₩7,723.04 | ₩38,615.20 |
| 25 - 45 | ₩7,482.40 | ₩37,412.00 |
| 50 - 95 | ₩7,328.24 | ₩36,641.20 |
| 100 + | ₩7,166.56 | ₩35,832.80 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 537-4485
- 제조사 부품 번호:
- AC-1005
- 제조업체:
- Nuvotem Talema
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Nuvotem Talema | |
| Product Type | Current Transformer | |
| Series | AC-1 | |
| Primary DC Resistance | 41.8Ω | |
| Terminal Type | Wire | |
| Primary Current | 5A | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 120°C | |
| Length | 23.8mm | |
| Weight | 16.3g | |
| Width | 23.8mm | |
| Standards/Approvals | ANSI/ESD S20.20:2014, BS EN 61340-5-1:2007, ISO 9001:2015, ISO 14001:2015 | |
| Depth | 11.12mm | |
| Mount Type | PCB | |
| Maximum Operating Frequency | 60Hz | |
| Minimum Operating Frequency | 50Hz | |
| Turns Ratio | 1000:1 | |
| 모두 선택 | ||
|---|---|---|
브랜드 Nuvotem Talema | ||
Product Type Current Transformer | ||
Series AC-1 | ||
Primary DC Resistance 41.8Ω | ||
Terminal Type Wire | ||
Primary Current 5A | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 120°C | ||
Length 23.8mm | ||
Weight 16.3g | ||
Width 23.8mm | ||
Standards/Approvals ANSI/ESD S20.20:2014, BS EN 61340-5-1:2007, ISO 9001:2015, ISO 14001:2015 | ||
Depth 11.12mm | ||
Mount Type PCB | ||
Maximum Operating Frequency 60Hz | ||
Minimum Operating Frequency 50Hz | ||
Turns Ratio 1000:1 | ||
Nuvotem Talema Current Sense Transformer
The Nuvotem Talema current sense transformer has an input current rating of 5A. This PCB mount transformer has turned the ratio of 1000:1.
Features and Benefits
Extremely low price
high-quality
Dimensions are 23.8 x 23.8 x 11.12mm
Operating temperature ranges between -40°C and 120°C
frequency range of 50/60Hz
PC Pin termination style
DC resistance 41.8ohms
Applications
Sensing overload current
Ground fault detection
Metering
Analog to digital circuits
Certifications
ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007
