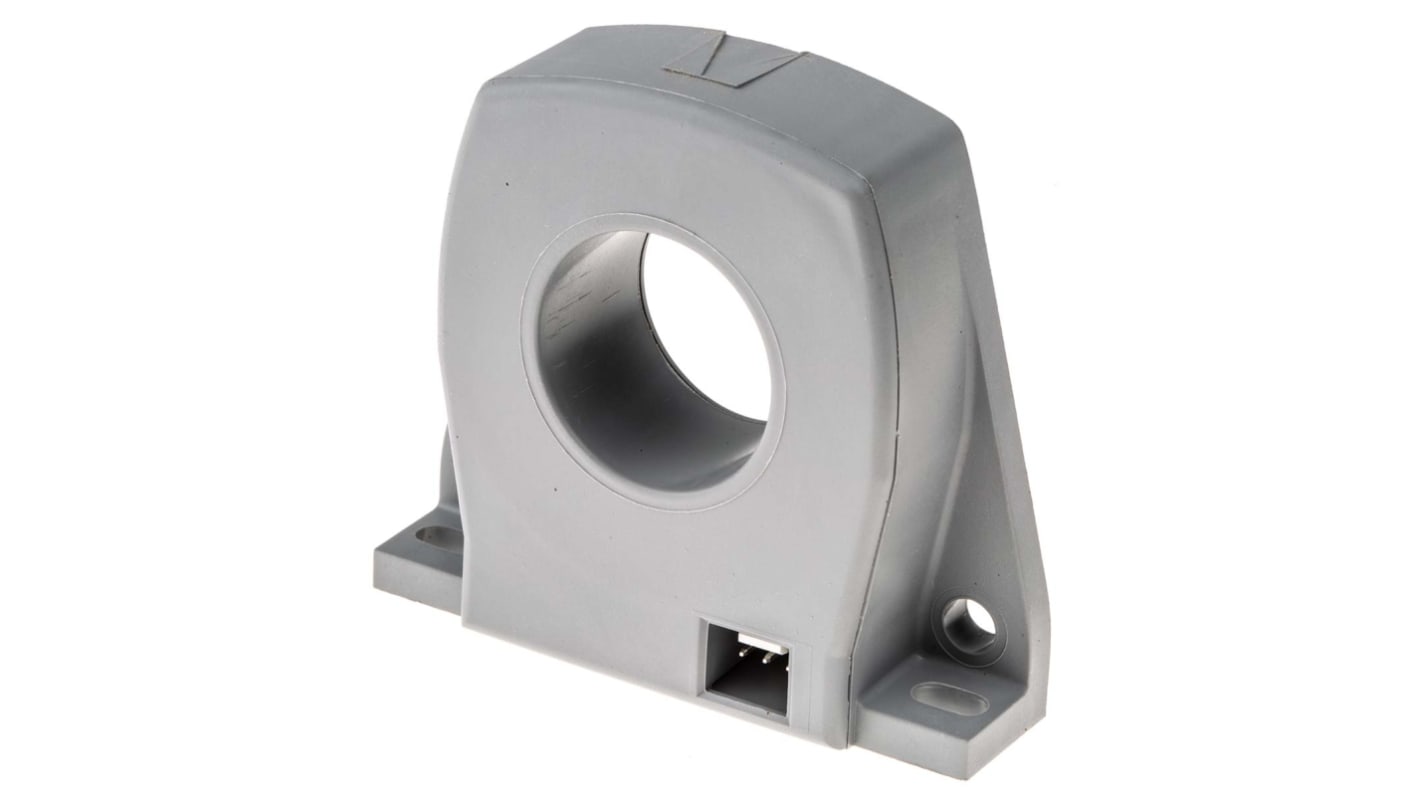

Honeywell CSNS Series Current Transformer 300 A 1:2000 15 V 26 mm Bore
- RS 제품 번호:
- 477-4711
- 제조사 부품 번호:
- CSNS300M
- 제조업체:
- Honeywell
대량 구매 할인 기용 가능
Subtotal (1 unit)*
₩392,769.60
일시적 품절
- 2026년 3월 24일 부터 25 개 단위 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 - 4 | ₩392,769.60 |
| 5 - 9 | ₩384,930.00 |
| 10 + | ₩377,222.00 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 477-4711
- 제조사 부품 번호:
- CSNS300M
- 제조업체:
- Honeywell
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Honeywell | |
| Product Type | Current Transformer | |
| Series | CSNS | |
| Secondary DC Resistance | 31Ω | |
| Secondary Current | 150 mA | |
| Terminal Type | Molex Type Connector or Flying Lead | |
| Minimum Operating Temperature | -40°C | |
| Primary Current | 300A | |
| Maximum Operating Temperature | 85°C | |
| Standards/Approvals | No | |
| Maximum Operating Frequency | 150kHz | |
| Mount Type | Horizontal, Vertical | |
| Supply Voltage | 15 V | |
| Bore Size | 26 mm | |
| Turns Ratio | 1:2000 | |
| Minimum Operating Frequency | 0Hz | |
| 모두 선택 | ||
|---|---|---|
브랜드 Honeywell | ||
Product Type Current Transformer | ||
Series CSNS | ||
Secondary DC Resistance 31Ω | ||
Secondary Current 150 mA | ||
Terminal Type Molex Type Connector or Flying Lead | ||
Minimum Operating Temperature -40°C | ||
Primary Current 300A | ||
Maximum Operating Temperature 85°C | ||
Standards/Approvals No | ||
Maximum Operating Frequency 150kHz | ||
Mount Type Horizontal, Vertical | ||
Supply Voltage 15 V | ||
Bore Size 26 mm | ||
Turns Ratio 1:2000 | ||
Minimum Operating Frequency 0Hz | ||
제외
Honeywell Current Transformer, 12 to 18V DC Supply Voltage, +0.5% Accuracy - CSNS Series - CSNS300M
For accurate measurements in high-current applications, choose this robust current transformer from Honeywell. It uses Hall effect closed-loop technology to accurately detect currents of +600A for use in heavy-duty applications. The transformer's thermoplastic housing offers resistance to impact and serves as an insulator to prevent electric shocks and ensure safe operation. It can be mounted with busbars or installed directly onto your PCB, making it a versatile choice.
Features & Benefits
• Accuracy of ±0.5% for precise current measurements
• Broad operating temperature range of -40°C to +85°C for use in demanding settings
Applications
• Measurement and instrumentation
• Variable speed drives
• Automation industry
What types of currents does this transformer detect?
This transformer can detect AC, DC and impulse currents, making it a versatile option for use in a wide range of applications.
CSNS300 Sensors
Flexible alternative to the current shunt or transformers for the isolated measurement of a.c. or d.c. currents. Based on the principle of Hall effect and null balance method.
Small footprint
Measures dc, ac and impulse currents
Large primary conductor hole
High accuracy
Typical applications include; variable speed drives, overcurrent protection, power supply systems, frequency converters, UPS, robotics, battery management systems and welding equipment
