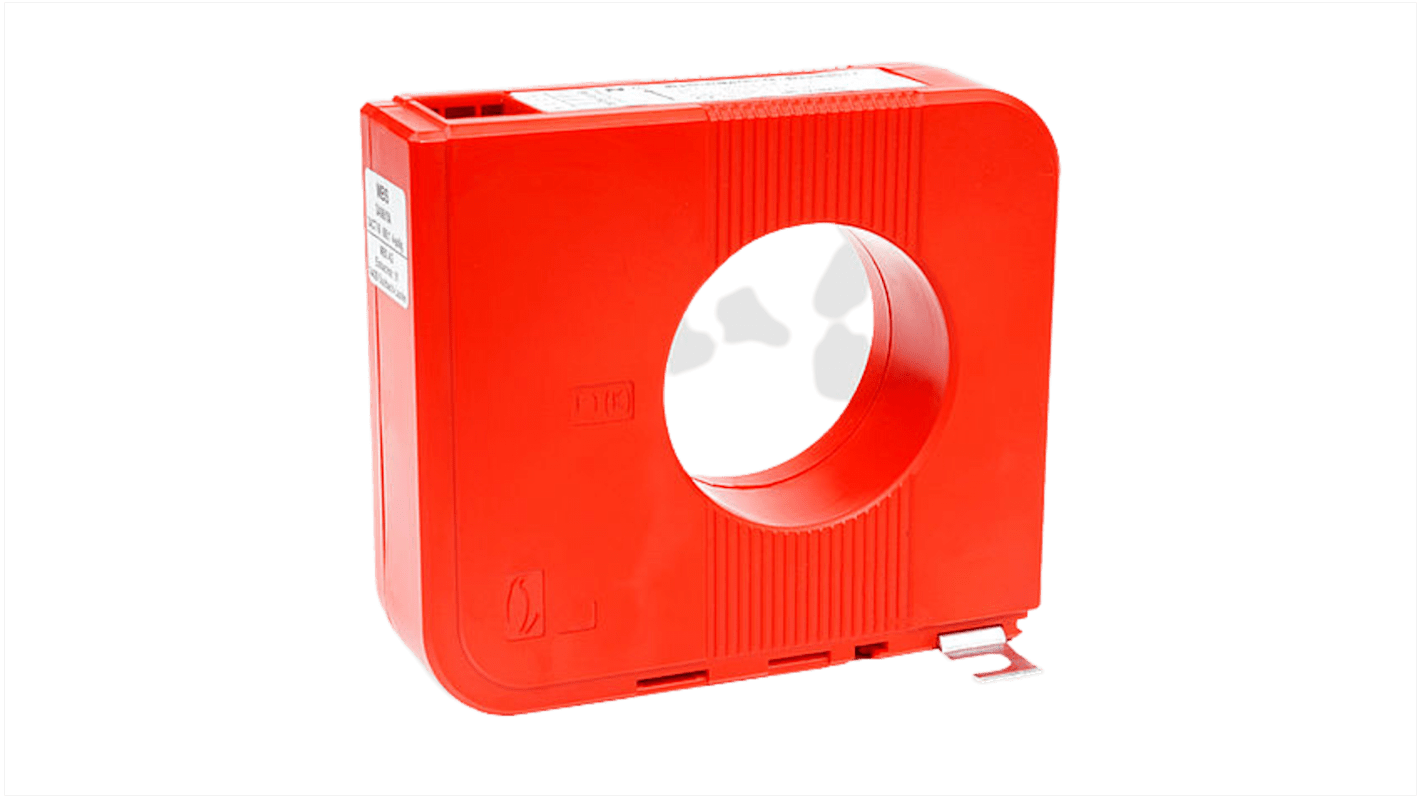

GILGEN Muller & Weigert DACT Series Current Transformer 600 A 1:600 60mm Bore
- RS 제품 번호:
- 243-0006
- 제조사 부품 번호:
- DACT 60 600:1 4-polig
- 제조업체:
- GILGEN Muller & Weigert
사용할 수 없음
RS는 더 이상 이 제품을 입고하지 않습니다.
- RS 제품 번호:
- 243-0006
- 제조사 부품 번호:
- DACT 60 600:1 4-polig
- 제조업체:
- GILGEN Muller & Weigert
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | GILGEN Muller & Weigert | |
| Series | DACT | |
| Product Type | Current Transformer | |
| Primary Current | 600 A | |
| Turns Ratio | 1:600 | |
| Bore Diameter | 60 mm | |
| Depth | 30 mm | |
| Maximum Operating Temperature | 65 °C | |
| Minimum Operating Temperature | -10 °C | |
| Secondary Current | 3.33 mA | |
| Secondary DC Resistance | 8 Ω | |
| Standards/Approvals | IEC 60664-1 / -3 | |
| Terminal Type | Screw | |
| Weight | 145 g | |
| Width | 82 mm | |
| 모두 선택 | ||
|---|---|---|
브랜드 GILGEN Muller & Weigert | ||
Series DACT | ||
Product Type Current Transformer | ||
Primary Current 600 A | ||
Turns Ratio 1:600 | ||
Bore Diameter 60 mm | ||
Depth 30 mm | ||
Maximum Operating Temperature 65 °C | ||
Minimum Operating Temperature -10 °C | ||
Secondary Current 3.33 mA | ||
Secondary DC Resistance 8 Ω | ||
Standards/Approvals IEC 60664-1 / -3 | ||
Terminal Type Screw | ||
Weight 145 g | ||
Width 82 mm | ||
제외
- COO (Country of Origin):
- DE
The GILGEN Muller & Weigert series core balance transformers in connection with our earth fault relay -ELR are designed for the detection of residual currents.
Pollution degree III
Protection class housing IP40
