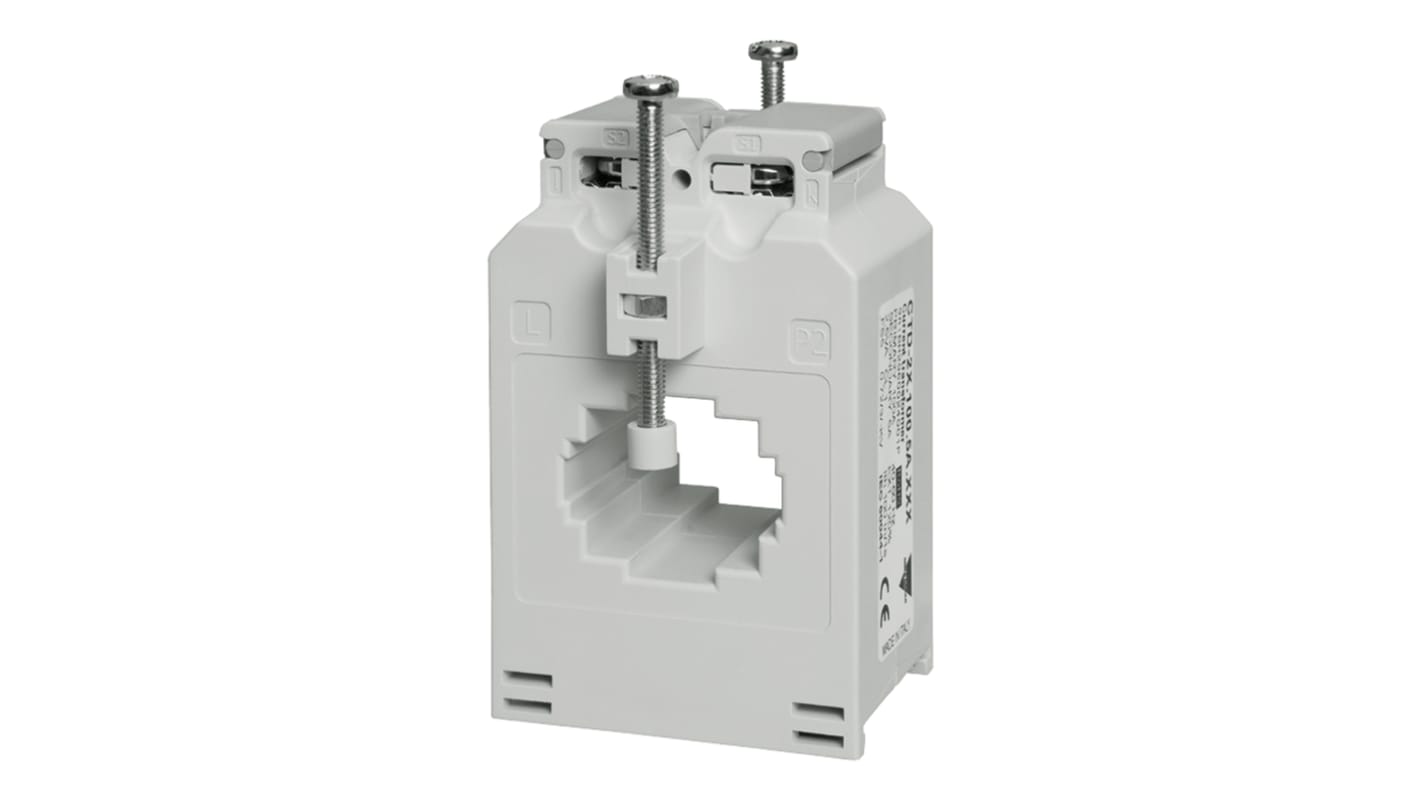

Carlo Gavazzi CTD2X Series Current Transformer 400 A 24 mm Bore
- RS 제품 번호:
- 223-8016
- Distrelec 제품 번호:
- 304-27-217
- 제조사 부품 번호:
- CTD2X4005AXXX
- 제조업체:
- Carlo Gavazzi
Subtotal (1 unit)*
₩36,566.00
재고있음
- 16 개 단위 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 + | ₩36,566.00 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 223-8016
- Distrelec 제품 번호:
- 304-27-217
- 제조사 부품 번호:
- CTD2X4005AXXX
- 제조업체:
- Carlo Gavazzi
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Carlo Gavazzi | |
| Product Type | Current Transformer | |
| Series | CTD2X | |
| Secondary Current | 5 A | |
| Minimum Operating Temperature | -25°C | |
| Primary Current | 400A | |
| Maximum Operating Temperature | 60°C | |
| Length | 104.5mm | |
| Weight | 500g | |
| Depth | 63mm | |
| Standards/Approvals | CE, EN 61869-2, cURus, CSA | |
| Width | 56 mm | |
| Maximum Operating Frequency | 65Hz | |
| Mount Type | DIN Rail, Cable, Busbar | |
| Bore Size | 24 mm | |
| Minimum Operating Frequency | 45Hz | |
| 모두 선택 | ||
|---|---|---|
브랜드 Carlo Gavazzi | ||
Product Type Current Transformer | ||
Series CTD2X | ||
Secondary Current 5 A | ||
Minimum Operating Temperature -25°C | ||
Primary Current 400A | ||
Maximum Operating Temperature 60°C | ||
Length 104.5mm | ||
Weight 500g | ||
Depth 63mm | ||
Standards/Approvals CE, EN 61869-2, cURus, CSA | ||
Width 56 mm | ||
Maximum Operating Frequency 65Hz | ||
Mount Type DIN Rail, Cable, Busbar | ||
Bore Size 24 mm | ||
Minimum Operating Frequency 45Hz | ||
- COO (Country of Origin):
- HR
The Carlo Gavazzi CTD-2X is the cable bus-bar type current transformer with DIN- rail/Busbar and panel mounting facility. This transformer have multiple screws provided with insulation caps to grant a strong and reliable fixing of the current transformer to the bus-bar. The primary current of the transformer is the 400A and secondary current is the 5A.
Integrated DIN-rail mounting holder
Removable panel fixing clips
2 Bus-bar isolated fixing screws
Double screw terminals
Sealable terminal block covers
