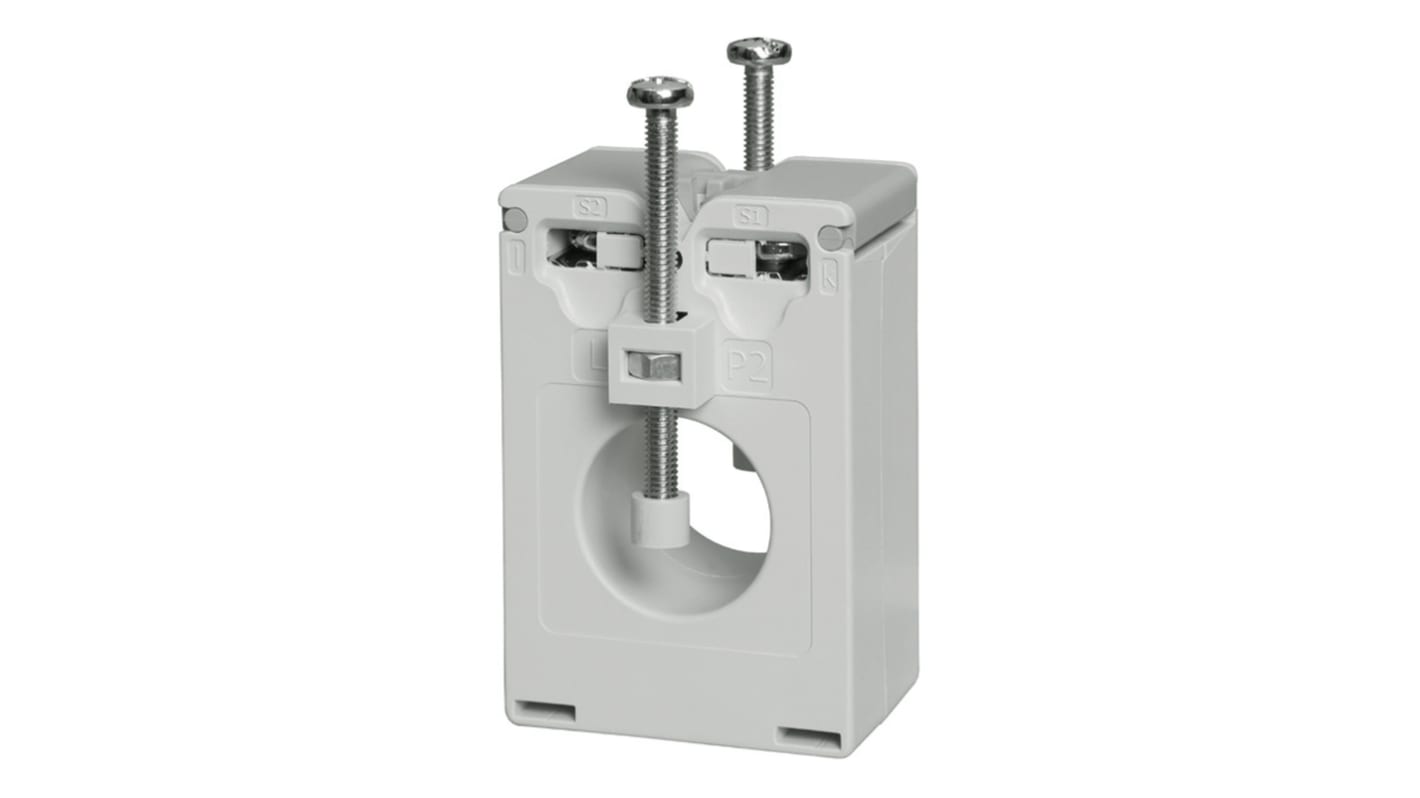

Carlo Gavazzi CTD1X Series Current Transformer 160 A 23.3 mm Bore
- RS 제품 번호:
- 223-8009
- Distrelec 제품 번호:
- 304-27-208
- 제조사 부품 번호:
- CTD1X1605AXXX
- 제조업체:
- Carlo Gavazzi
Subtotal (1 unit)*
₩58,148.40
일시적 품절
- 2026년 6월 22일 부터 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 + | ₩58,148.40 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 223-8009
- Distrelec 제품 번호:
- 304-27-208
- 제조사 부품 번호:
- CTD1X1605AXXX
- 제조업체:
- Carlo Gavazzi
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Carlo Gavazzi | |
| Product Type | Current Transformer | |
| Series | CTD1X | |
| Secondary Current | 5 A | |
| Primary Current | 160A | |
| Minimum Operating Temperature | -25°C | |
| Maximum Operating Temperature | 60°C | |
| Weight | 200g | |
| Depth | 44mm | |
| Standards/Approvals | CSA, CE, EN 61869-2, cURus | |
| Length | 83.6mm | |
| Width | 46 mm | |
| Maximum Operating Frequency | 62Hz | |
| Mount Type | Cable, Busbar, DIN Rail | |
| Minimum Operating Frequency | 48Hz | |
| Bore Size | 23.3 mm | |
| 모두 선택 | ||
|---|---|---|
브랜드 Carlo Gavazzi | ||
Product Type Current Transformer | ||
Series CTD1X | ||
Secondary Current 5 A | ||
Primary Current 160A | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature 60°C | ||
Weight 200g | ||
Depth 44mm | ||
Standards/Approvals CSA, CE, EN 61869-2, cURus | ||
Length 83.6mm | ||
Width 46 mm | ||
Maximum Operating Frequency 62Hz | ||
Mount Type Cable, Busbar, DIN Rail | ||
Minimum Operating Frequency 48Hz | ||
Bore Size 23.3 mm | ||
- COO (Country of Origin):
- HR
The Carlo Gavazzi CTD-1X is the cable bus-bar type current transformer with DIN- rail/Busbar and panel mounting facility. This transformer have multiple screws provided with insulation caps to grant a strong and reliable fixing of the current transformer to the bus-bar. The primary current of the transformer is the 160A and secondary current is the 5A.
Removable panel fixing clips
2 cable/bus-bar isolated fixing screws
Double screw terminals
Sealable terminal block covers
Removable DIN-rail mounting holder
