Subtotal (1 unit)*
₩351,468.00
제조사가 재고 비축중
- 2026년 6월 09일 부터 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 + | ₩351,468.00 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 221-0413
- 제조사 부품 번호:
- 48290506
- 제조업체:
- Socomec
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Socomec | |
| Product Type | Current Transformer | |
| Series | TE-90 | |
| Minimum Operating Temperature | -10°C | |
| Primary Current | 2000A | |
| Maximum Operating Temperature | 70°C | |
| Depth | 24.6mm | |
| Length | 126mm | |
| Width | 90mm | |
| Standards/Approvals | ISO 14025, UL, IEC 61557-12 | |
| Weight | 163g | |
| Mount Type | Cable | |
| Maximum Operating Frequency | 60Hz | |
| Minimum Operating Frequency | 50Hz | |
| Supply Voltage | 300V | |
| 모두 선택 | ||
|---|---|---|
브랜드 Socomec | ||
Product Type Current Transformer | ||
Series TE-90 | ||
Minimum Operating Temperature -10°C | ||
Primary Current 2000A | ||
Maximum Operating Temperature 70°C | ||
Depth 24.6mm | ||
Length 126mm | ||
Width 90mm | ||
Standards/Approvals ISO 14025, UL, IEC 61557-12 | ||
Weight 163g | ||
Mount Type Cable | ||
Maximum Operating Frequency 60Hz | ||
Minimum Operating Frequency 50Hz | ||
Supply Voltage 300V | ||
- COO (Country of Origin):
- FR

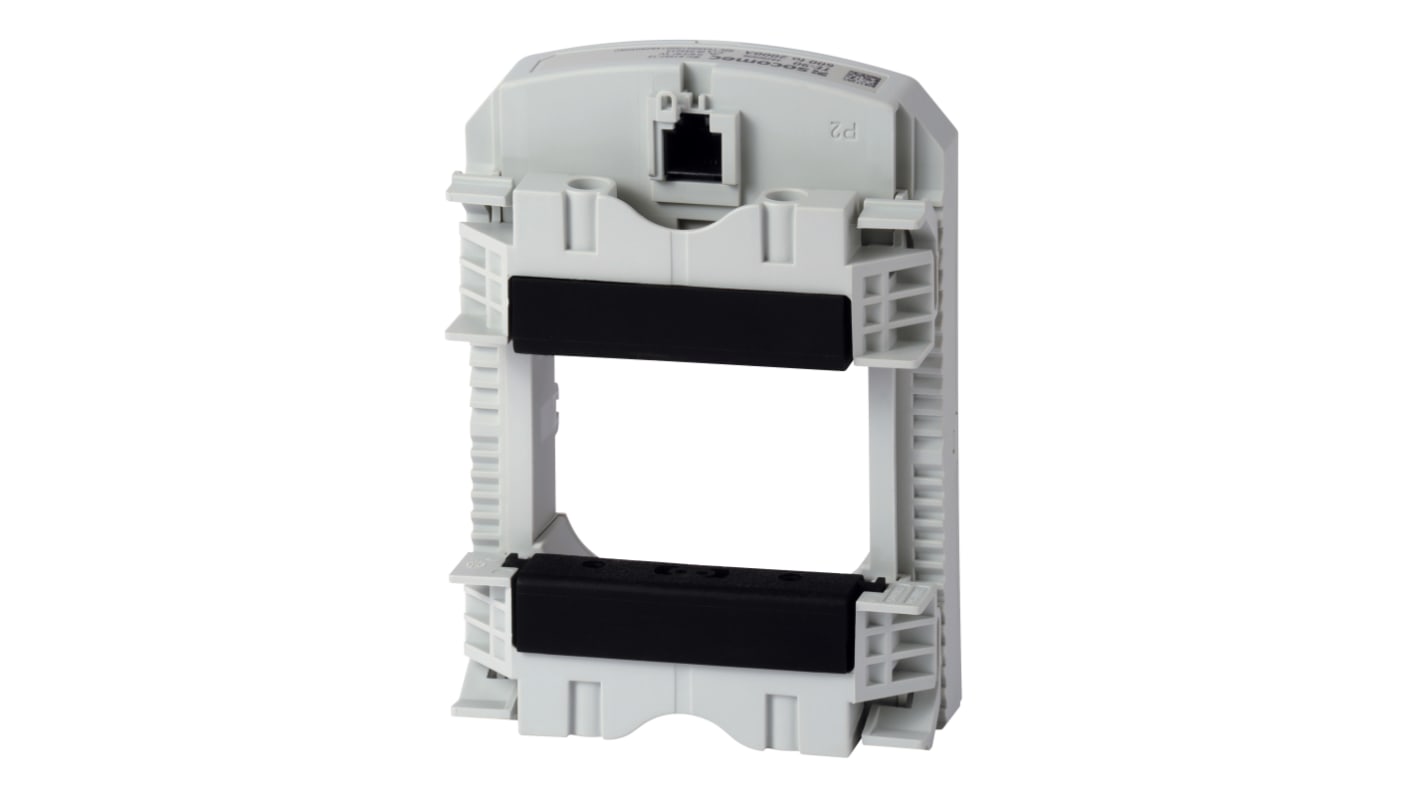

The Socomec TE range solid current sensors measure the load currents of an electrical system and send the data to meters and measurement hubs via an RJ12 plug-and-play output. This solid current sensors can be connected to DIRIS Digiware, DIRIS A-40 and DIRIS B via a rapid RJ12 connection.
A rapid RJ12 connection makes wiring easy and reliable and prevents wiring errors.
The sensors can be installed in both directions
Designed for new installations, and has the same pitch as the most common protective devices
