Socomec 192T Series Current Transformer 2500 A
- RS 제품 번호:
- 221-0367
- 제조사 부품 번호:
- 192T9797
- 제조업체:
- Socomec
Subtotal (1 unit)*
₩319,122.48
현재 액세스할 수 없는 재고 정보 - 나중에 다시 확인해 주세요.
수량 | 한팩당 |
|---|---|
| 1 + | ₩319,122.48 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 221-0367
- 제조사 부품 번호:
- 192T9797
- 제조업체:
- Socomec
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Socomec | |
| Product Type | Current Transformer | |
| Series | 192T | |
| Secondary Current | 5 A | |
| Primary Current | 2500A | |
| Width | 100 mm | |
| Depth | 55mm | |
| Standards/Approvals | IEC 61869-2, IEC 61439-1 | |
| Length | 175mm | |
| Maximum Operating Frequency | 60Hz | |
| Mount Type | DIN Rail | |
| Minimum Operating Frequency | 50Hz | |
| 모두 선택 | ||
|---|---|---|
브랜드 Socomec | ||
Product Type Current Transformer | ||
Series 192T | ||
Secondary Current 5 A | ||
Primary Current 2500A | ||
Width 100 mm | ||
Depth 55mm | ||
Standards/Approvals IEC 61869-2, IEC 61439-1 | ||
Length 175mm | ||
Maximum Operating Frequency 60Hz | ||
Mount Type DIN Rail | ||
Minimum Operating Frequency 50Hz | ||
- COO (Country of Origin):
- DE

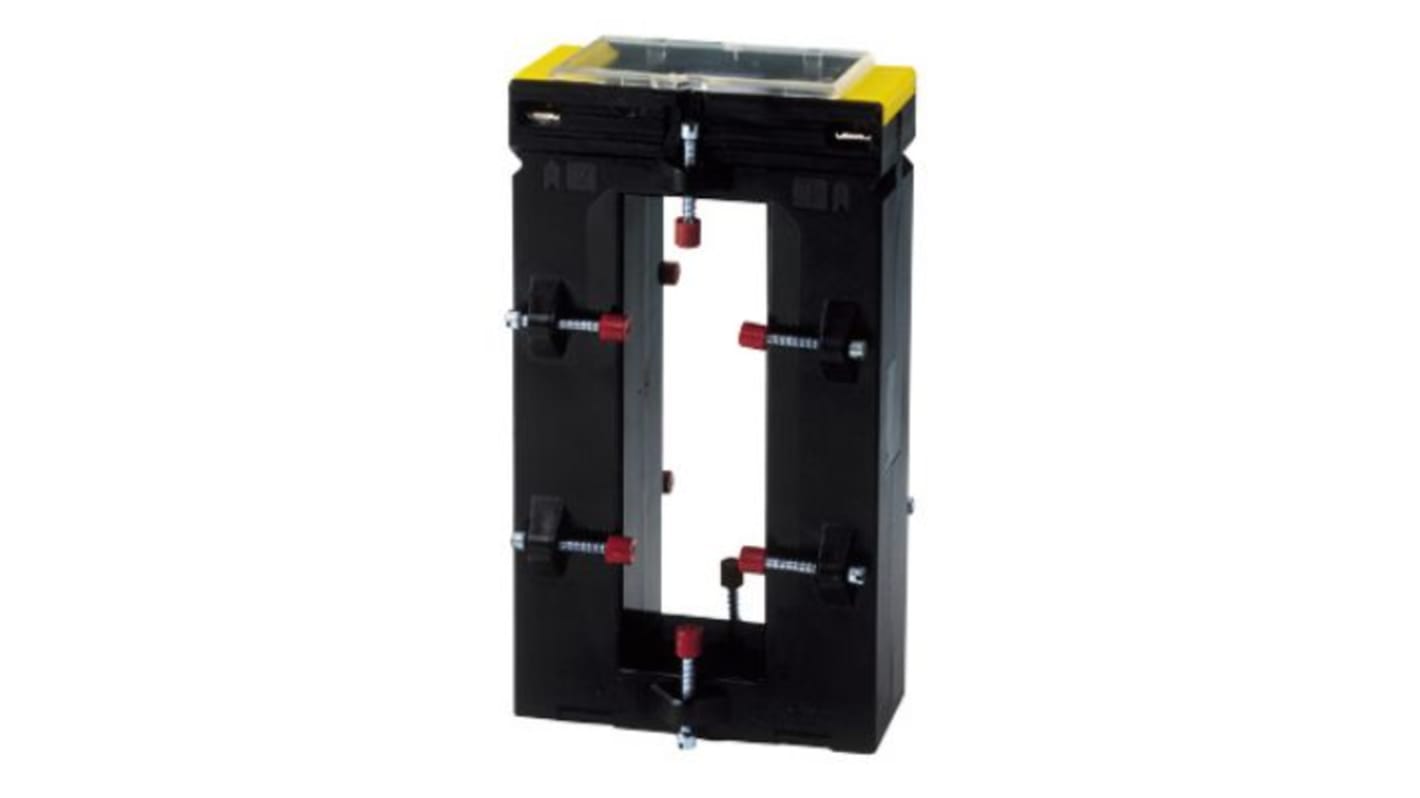

The Socomec bar-through current transformer deliver to the secondary a standard current proportional to the primary current and adapted to the rating of the associated device. They are equipped as standard with removable terminal covers and double terminals allowing the secondary to be short-circuited without any risk. The primary current is 2500 A.
Wide range of ratings and dimensions
Quick and easy mounting
Adapted currency class 0.2 s, 0.5, 1 or 3
Edgewise, flat, DIN Rail or back plate mounting is possible
