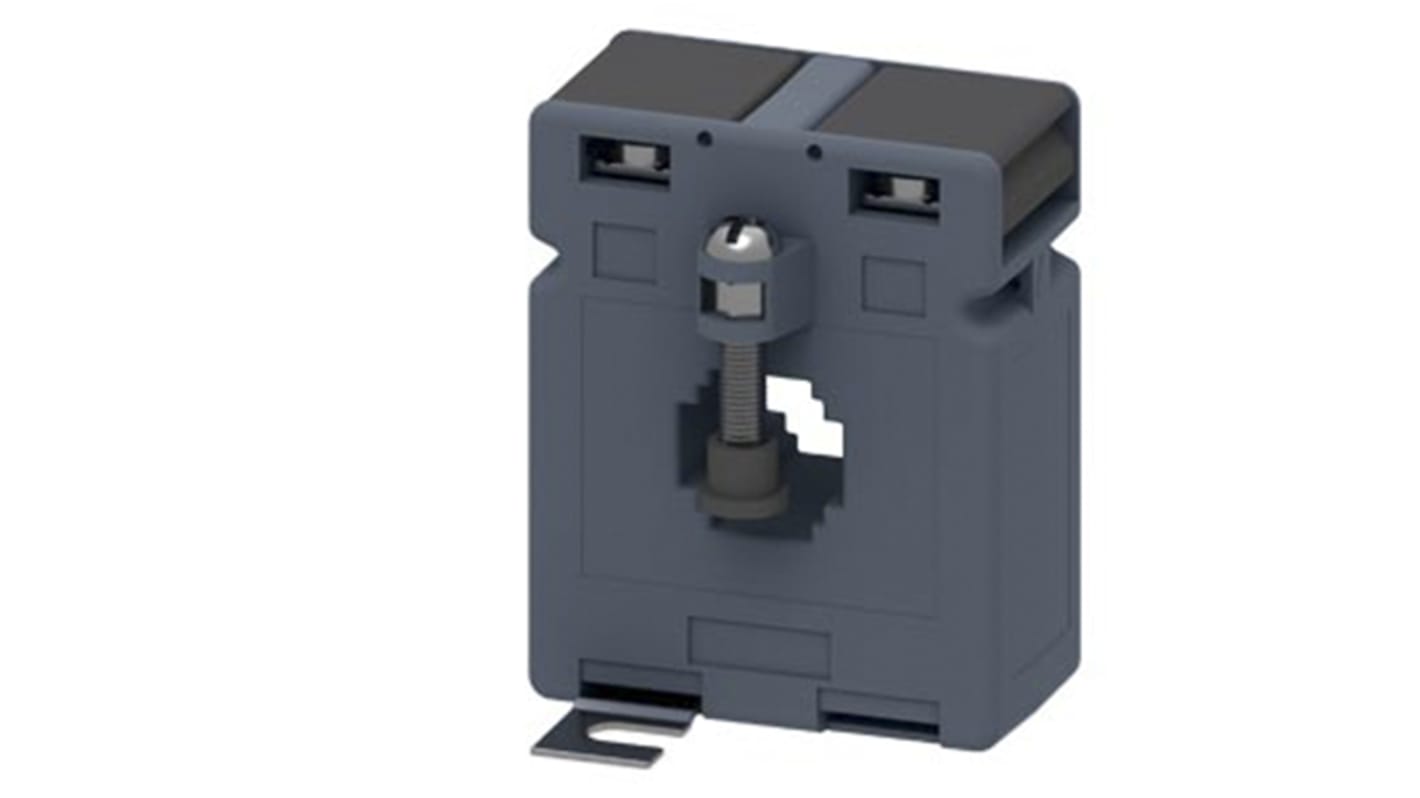

Siemens SENTRON Series Current Transformer 150 A 150:5 2.5 VA 720V
- RS 제품 번호:
- 175-6142
- 제조사 부품 번호:
- 4NC5121-2CC21
- 제조업체:
- Siemens
Subtotal (1 unit)*
₩130,100.00
재고있음
- 5 개 단위 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 + | ₩130,100.00 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 175-6142
- 제조사 부품 번호:
- 4NC5121-2CC21
- 제조업체:
- Siemens
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Siemens | |
| Product Type | Current Transformer | |
| Series | SENTRON | |
| Power Rating | 2.5VA | |
| Secondary Current | 5A | |
| Terminal Type | Screw | |
| Primary Current | 150A | |
| Minimum Operating Temperature | -30°C | |
| Maximum Operating Temperature | 55°C | |
| Width | 60mm | |
| Standards/Approvals | DIN EN 61346-2 | |
| Weight | 304g | |
| Depth | 55mm | |
| Supply Voltage | 720V | |
| Turns Ratio | 150:5 | |
| 모두 선택 | ||
|---|---|---|
브랜드 Siemens | ||
Product Type Current Transformer | ||
Series SENTRON | ||
Power Rating 2.5VA | ||
Secondary Current 5A | ||
Terminal Type Screw | ||
Primary Current 150A | ||
Minimum Operating Temperature -30°C | ||
Maximum Operating Temperature 55°C | ||
Width 60mm | ||
Standards/Approvals DIN EN 61346-2 | ||
Weight 304g | ||
Depth 55mm | ||
Supply Voltage 720V | ||
Turns Ratio 150:5 | ||
- COO (Country of Origin):
- IN
Siemens SENTRON Series Current Transformer, 150A primary current, 5A secondary Current - 4NC5121-2CC21
This current transformer converts high primary currents to a standard secondary for measurement and protection tasks in low-voltage networks. It is designed for indoor electrical installations, with an insulation rating suitable for systems up to 0.72 kV and operation across standard power frequencies. The device incorporates a bushing-style through-conductor arrangement and provides touch-protected connections for safe integration with existing switchgear and metering equipment.
Features and Benefits:
• 150:5 turns ratio delivers predictable scaling for instruments
• 2.5 VA power rating CT limits burden on measurement circuits
• Class 1 accuracy ensures measured values meet metering tolerances
• Screw-terminal current transformer enables secure conductor termination
• Rated for -30 to 55°C operation for varied plant environments
• 2.5 VA power rating CT limits burden on measurement circuits
• Class 1 accuracy ensures measured values meet metering tolerances
• Screw-terminal current transformer enables secure conductor termination
• Rated for -30 to 55°C operation for varied plant environments
Applications
• Suitable for panel-mounted energy monitoring installations
• Used with metering relays for overcurrent detection tasks
• Ideal for integration into distribution switchboards
• Can be used for industrial load current measurement points
• Used for protection coordination studies in substations
• Used with metering relays for overcurrent detection tasks
• Ideal for integration into distribution switchboards
• Can be used for industrial load current measurement points
• Used for protection coordination studies in substations
What short-time thermal capability does it use?
The rated short-time thermal current is specified as a multiple of the primary rated current using the formula Ith = x·Ipr per IEC 61869-2.
How is dynamic withstand defined for fault conditions?
Dynamic current is given as Idyn = 2.5·Ith or 150·Ipr according to IEC 61869 for the design.
What mechanical fixing and conductor sizes are supported?
It fastens by screw fixing and accepts a push-through conductor or busbar with up to 19 mm outer diameter.
What protection and indoor suitability does it provide?
It has IP20 ingress protection, touch-protection features, and is intended for interior use only.
