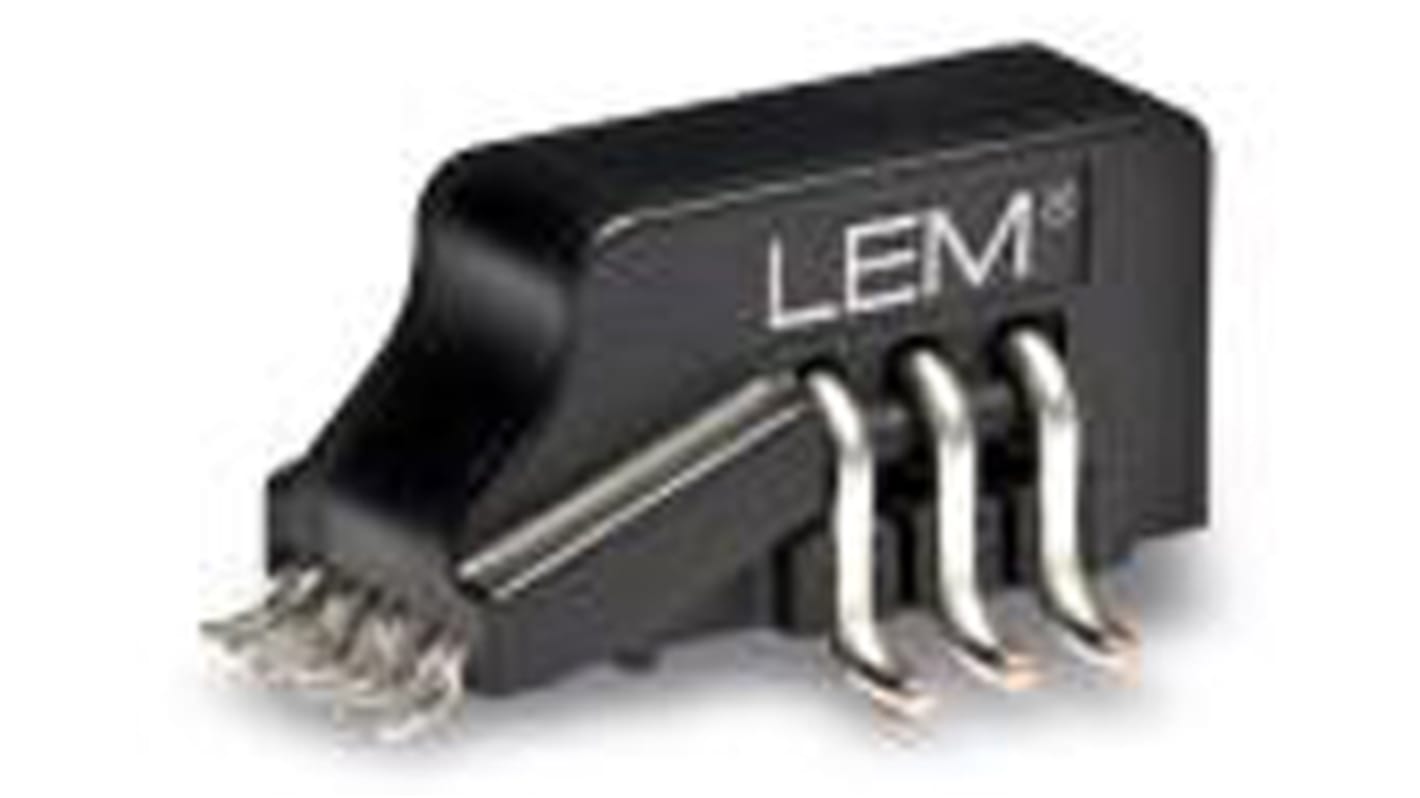

LEM HO Series Current Transformer, 15A Input, 37.5:1, Maximum of 25 mA Output, 18mm Bore, 3.14 → 3.46 V
- RS 제품 번호:
- 138-3464
- 제조사 부품 번호:
- HO 15-NSM/SP33-1000
- 제조업체:
- LEM
현재 비가용
RS는 이 제품을 더 이상 판매하지 않습니다.
- RS 제품 번호:
- 138-3464
- 제조사 부품 번호:
- HO 15-NSM/SP33-1000
- 제조업체:
- LEM
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | LEM | |
| Current Ratio | 37.5:1 | |
| Bore Size | 18mm | |
| Series | HO | |
| Sensor Technology | Open Loop | |
| Supply Voltage | 3.14 → 3.46 V | |
| Input Current | 15A | |
| Output Current | Maximum of 25 mA | |
| Overall Height | 12.5mm | |
| Overall Width | 25mm | |
| Overall Depth | 12mm | |
| Minimum Temperature | -40°C | |
| Maximum Temperature | +105°C | |
| Mounting Type | Panel Mount | |
| 모두 선택 | ||
|---|---|---|
브랜드 LEM | ||
Current Ratio 37.5:1 | ||
Bore Size 18mm | ||
Series HO | ||
Sensor Technology Open Loop | ||
Supply Voltage 3.14 → 3.46 V | ||
Input Current 15A | ||
Output Current Maximum of 25 mA | ||
Overall Height 12.5mm | ||
Overall Width 25mm | ||
Overall Depth 12mm | ||
Minimum Temperature -40°C | ||
Maximum Temperature +105°C | ||
Mounting Type Panel Mount | ||
- COO (Country of Origin):
- BG
HO-NSM/SP33 Series
LEM HO-NSM/SP33 series multi-range current transducers for the electronic measurement of current. The HO-NSM series can measure dc, ac and pulsed current with galvanic separation between the primary and the secondary circuit.
Features and Benefits
Hall effect measuring principle
Low power consumption
Fixed offset and sensitivity
Small size and space saving
High immunity to external interference
Suitable for industrial applications
Factory calibrated
