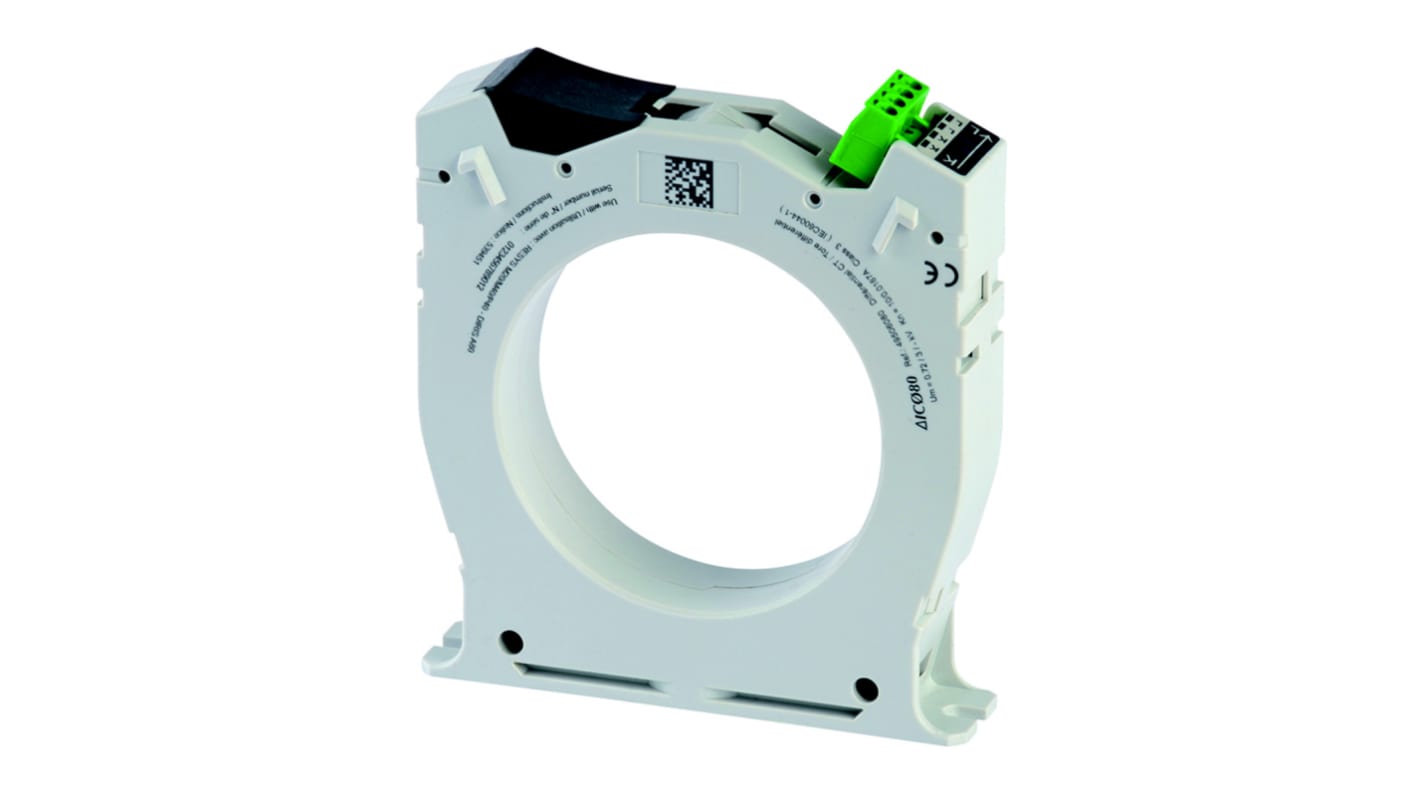

Socomec Delta IC Series Current Transformer, 160A Input, 160:5, 5 A Output, 80mm Bore
- RS 제품 번호:
- 122-0566
- 제조사 부품 번호:
- 49506080
- 제조업체:
- Socomec
Subtotal (1 unit)*
₩224,314.08
재고있음
- 3 개 단위 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 + | ₩224,314.08 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 122-0566
- 제조사 부품 번호:
- 49506080
- 제조업체:
- Socomec
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Socomec | |
| Current Ratio | 160:5 | |
| Bore Size | 80mm | |
| Series | Delta IC | |
| Input Current | 160A | |
| Output Current | 5 A | |
| Minimum Temperature | -40°C | |
| Maximum Temperature | +80°C | |
| Mounting Type | DIN Rail | |
| For Use With | DIRIS A80, RESYS | |
| Dimensions | 116 x 26 x 125 mm | |
| 모두 선택 | ||
|---|---|---|
브랜드 Socomec | ||
Current Ratio 160:5 | ||
Bore Size 80mm | ||
Series Delta IC | ||
Input Current 160A | ||
Output Current 5 A | ||
Minimum Temperature -40°C | ||
Maximum Temperature +80°C | ||
Mounting Type DIN Rail | ||
For Use With DIRIS A80, RESYS | ||
Dimensions 116 x 26 x 125 mm | ||
- COO (Country of Origin):
- FR
Core Balance Transformers- IC Series
IC Series core balance transformers are used in the installation of protection or signalling resources such as earth leakage protection relays. Active conductors pass through the aperture of the core balance transformers, providing differential summation of vector currents.
Features and Benefits
• Closed core type to suit all wiring configurations
• Mounting on DIN Rail, back plate or directly on cable
• Meets requirements in terms of measurement sensitivity
• Easily adapted into confined spaces with high integration constraints
• Provides easy and rapid cabling
• A patented cable locator
• Mounting on DIN Rail, back plate or directly on cable
• Meets requirements in terms of measurement sensitivity
• Easily adapted into confined spaces with high integration constraints
• Provides easy and rapid cabling
• A patented cable locator
