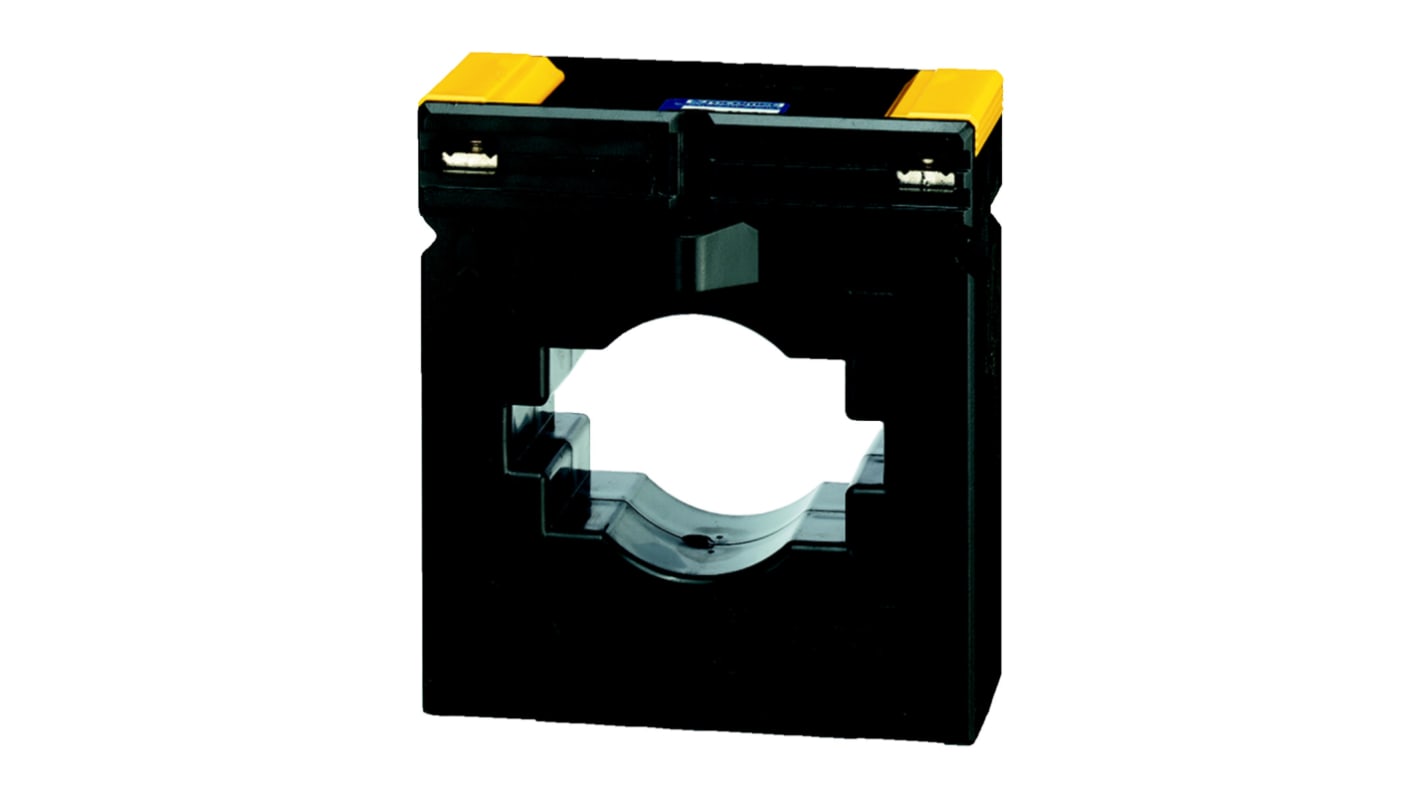

Socomec TCB 17-20 Series Current Transformer 100 A 17.5 mm Bore
- RS 제품 번호:
- 122-0464
- 제조사 부품 번호:
- 192T2110
- 제조업체:
- Socomec
Subtotal (1 unit)*
₩45,552.40
일시적 품절
- 2026년 5월 11일 부터 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 + | ₩45,552.40 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 122-0464
- 제조사 부품 번호:
- 192T2110
- 제조업체:
- Socomec
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Socomec | |
| Product Type | Current Transformer | |
| Series | TCB 17-20 | |
| Secondary Current | 5A | |
| Primary Current | 100A | |
| Depth | 50mm | |
| Length | 65mm | |
| Standards/Approvals | IEC 61439-1, IEC 61869-2 | |
| Width | 49.5mm | |
| Mount Type | DIN Rail | |
| Maximum Operating Frequency | 60Hz | |
| Minimum Operating Frequency | 50Hz | |
| Bore Size | 17.5mm | |
| 모두 선택 | ||
|---|---|---|
브랜드 Socomec | ||
Product Type Current Transformer | ||
Series TCB 17-20 | ||
Secondary Current 5A | ||
Primary Current 100A | ||
Depth 50mm | ||
Length 65mm | ||
Standards/Approvals IEC 61439-1, IEC 61869-2 | ||
Width 49.5mm | ||
Mount Type DIN Rail | ||
Maximum Operating Frequency 60Hz | ||
Minimum Operating Frequency 50Hz | ||
Bore Size 17.5mm | ||
- COO (Country of Origin):
- DE
Socomec Bar or Cable-through Current Transformers
Socomec current transformers deliver to the secondary, a standard current proportional to the primary current and adapt to the rating of the associated device. The current transformers are equipped with removable terminal covers and double terminals allowing the secondary to be short-circuited without any risk.
Features and Benefits
• Adapted currency class, 0.2 s, 0.5, 1 or 3
• Bar or cable-through choices
• Wide range of ratings and dimensions
• 3 phase models available
• Quick and easy mounting
• Edgewise, flat, DIN Rail or back plate mounting is possible
Current Transformers
