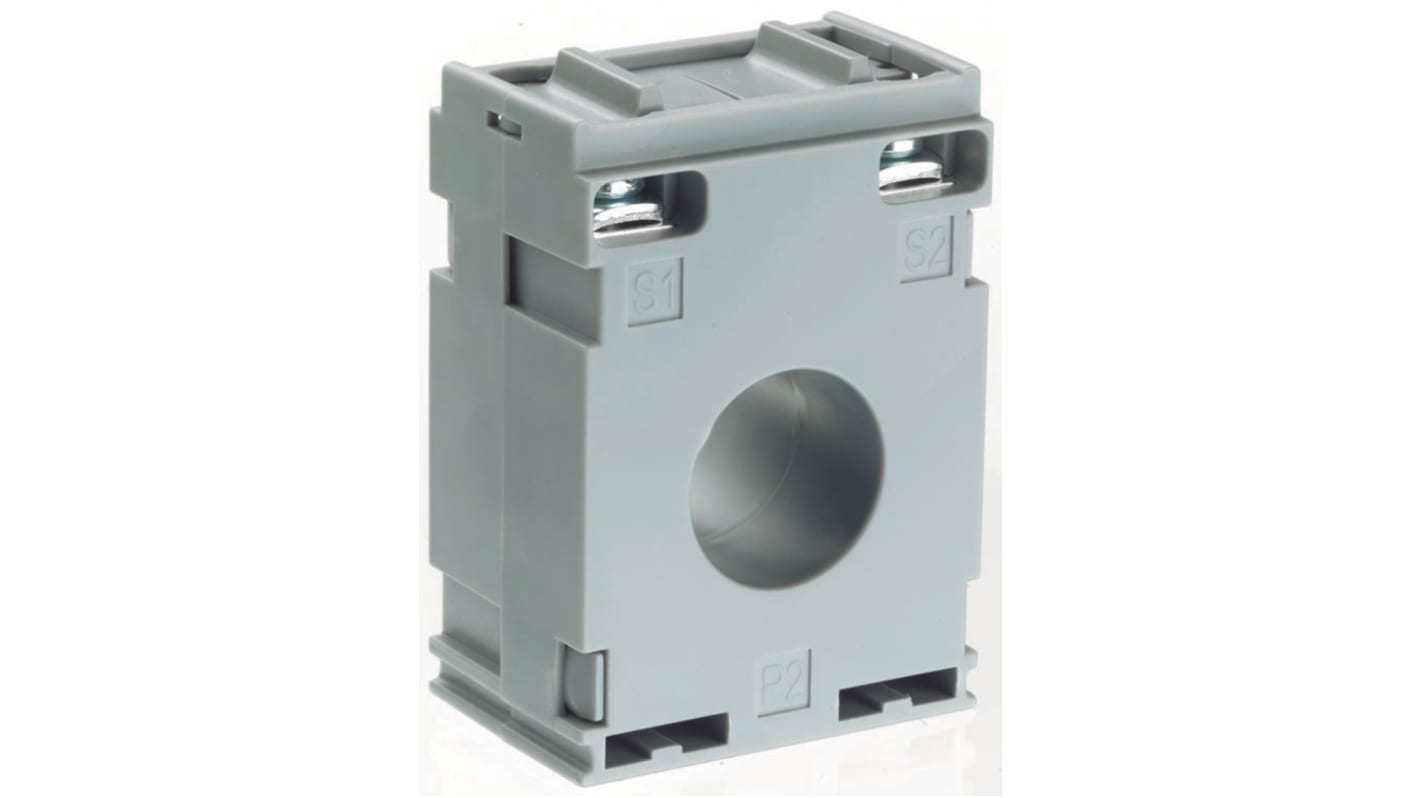

HOBUT CT132 Series Current Transformer 120 A 21 mm Bore
- RS 제품 번호:
- 331-468
- 제조사 부품 번호:
- CT132M120/5-2.5/1
- 제조업체:
- HOBUT
대량 구매 할인 기용 가능
Subtotal (1 unit)*
₩23,462.40
재고있음
- 32 개 단위 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 - 4 | ₩23,462.40 |
| 5 - 9 | ₩22,522.40 |
| 10 + | ₩21,582.40 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 331-468
- 제조사 부품 번호:
- CT132M120/5-2.5/1
- 제조업체:
- HOBUT
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | HOBUT | |
| Product Type | Current Transformer | |
| Series | CT132 | |
| Secondary Current | 5 A | |
| Primary Current | 120A | |
| Minimum Operating Temperature | 85°C | |
| Maximum Operating Temperature | 85°C | |
| Depth | 30mm | |
| Standards/Approvals | BS 7626, BS EN 60044-1, IEC 185, IEC 60044-1 | |
| Width | 45 mm | |
| Length | 65mm | |
| Mount Type | DIN Rail | |
| Bore Size | 21 mm | |
| 모두 선택 | ||
|---|---|---|
브랜드 HOBUT | ||
Product Type Current Transformer | ||
Series CT132 | ||
Secondary Current 5 A | ||
Primary Current 120A | ||
Minimum Operating Temperature 85°C | ||
Maximum Operating Temperature 85°C | ||
Depth 30mm | ||
Standards/Approvals BS 7626, BS EN 60044-1, IEC 185, IEC 60044-1 | ||
Width 45 mm | ||
Length 65mm | ||
Mount Type DIN Rail | ||
Bore Size 21 mm | ||
- COO (Country of Origin):
- GB
Compact Busbar/ Base Mounting Current Transformers - Series 13
A range of compact moulded case current transformers suitable for primary currents from 40A to 300A with built in sealable terminal covers. For transforming various primary currents into 5A standard secondary using up to 20mm diameter cables.
DIN rail mounting clip supplied
Built in sealable terminal covers
Mounting feet supplied
Narrow width: 45mm
Dimensions: H65 x W45 x D30mm
21mm aperture
Conforms to IEC185, BS 7626, BSEN 60044-1and IEC 60044-1
Rated system voltage: 0.72/3kV
Ambient temperature range: -30 to 85°C
Continuous current: 1.2 x rated current
CT Class Information for Series 16
331-395 - Class 1
331-547 - Class 1
331-373 - Class 0.5
331-367 - Class 0.5
331-446 - Class 0.5
Current Transformers
