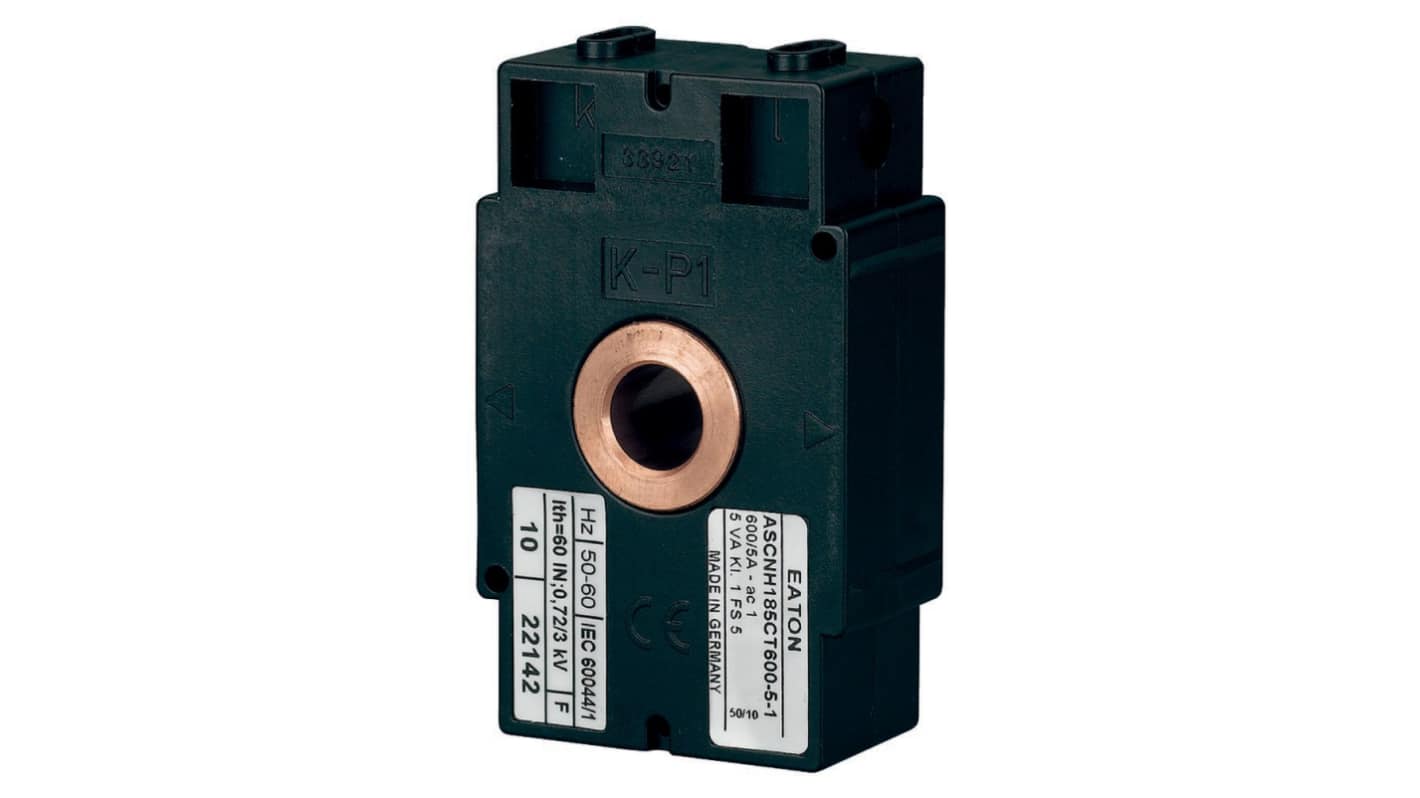

Eaton K-P1 Series Current Transformer 5 A 120:1 5 VA
- RS 제품 번호:
- 246-368
- 제조사 부품 번호:
- 149453 ASCNH185CT600-5-1
- 제조업체:
- Eaton
Subtotal (1 pack of 3 units)*
₩408,542.80
일시적 품절
- 2026년 4월 13일 부터 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
팩 | 한팩당 | 한팩당* |
|---|---|---|
| 1 + | ₩408,542.80 | ₩136,181.56 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 246-368
- 제조사 부품 번호:
- 149453 ASCNH185CT600-5-1
- 제조업체:
- Eaton
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Eaton | |
| Product Type | Current Transformer | |
| Series | K-P1 | |
| Power Rating | 5VA | |
| Secondary Current | 5 A | |
| Terminal Type | Screw | |
| Primary Current | 5A | |
| Standards/Approvals | RoHS | |
| Depth | 80mm | |
| Length | 80mm | |
| Width | 52 mm | |
| Weight | 0.2kg | |
| Turns Ratio | 120:1 | |
| 모두 선택 | ||
|---|---|---|
브랜드 Eaton | ||
Product Type Current Transformer | ||
Series K-P1 | ||
Power Rating 5VA | ||
Secondary Current 5 A | ||
Terminal Type Screw | ||
Primary Current 5A | ||
Standards/Approvals RoHS | ||
Depth 80mm | ||
Length 80mm | ||
Width 52 mm | ||
Weight 0.2kg | ||
Turns Ratio 120:1 | ||
- COO (Country of Origin):
- DE
The Eaton through-feed current converter is engineered to meet the demanding requirements of modern distribution settings. Designed for currents of up to 600 A, it seamlessly integrates into various applications, offering a reliable solution for monitoring and managing electrical loads. With its compact dimensions, including a depth of just 80 mm and a height of 26 mm, this device is suited for locations where space is at a premium. The robust construction ensures durability while complying with RoHS regulations, making it a responsible choice for environmentally conscious businesses. Its screw connection allows for easy installation, providing users with peace of mind in terms of both performance and compliance. This product exemplifies innovative technology perfectly suited to enhance operational efficiency.
Offers high accuracy with an accuracy class ratio of 1
Compact design allows for versatile placement in tight spaces
Durable construction promotes long-term reliability in demanding environments
Screw connection enables straightforward installation and maintenance
RoHS compliance ensures adherence to environmentally-friendly standards
Designed specifically for through-feed applications, optimising space usage
Lightweight at just 0.2 kg, facilitating easy handling
