RS PRO Current Transformer 100 A 20:1 18.5 mm Bore
- RS 제품 번호:
- 180-454
- 제조업체:
- RS PRO
Subtotal (1 unit)*
₩87,908.80
재고있음
- 56 개 단위 배송 준비 완료
- 추가로 2026년 4월 10일 부터 20 개 단위 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 + | ₩87,908.80 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 180-454
- 제조업체:
- RS PRO
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | RS PRO | |
| Product Type | Current Transformer | |
| Secondary Current | 5 A | |
| Terminal Type | Plug-In | |
| Primary Current | 100A | |
| Minimum Operating Temperature | -20°C | |
| Maximum Operating Temperature | 50°C | |
| Standards/Approvals | RoHS Conforms, IEC 61869 | |
| Width | 62 mm | |
| Length | 110mm | |
| Depth | 56.2mm | |
| Mount Type | Busbar | |
| Bore Size | 18.5 mm | |
| Turns Ratio | 20:1 | |
| 모두 선택 | ||
|---|---|---|
브랜드 RS PRO | ||
Product Type Current Transformer | ||
Secondary Current 5 A | ||
Terminal Type Plug-In | ||
Primary Current 100A | ||
Minimum Operating Temperature -20°C | ||
Maximum Operating Temperature 50°C | ||
Standards/Approvals RoHS Conforms, IEC 61869 | ||
Width 62 mm | ||
Length 110mm | ||
Depth 56.2mm | ||
Mount Type Busbar | ||
Bore Size 18.5 mm | ||
Turns Ratio 20:1 | ||
제외
- COO (Country of Origin):
- IN

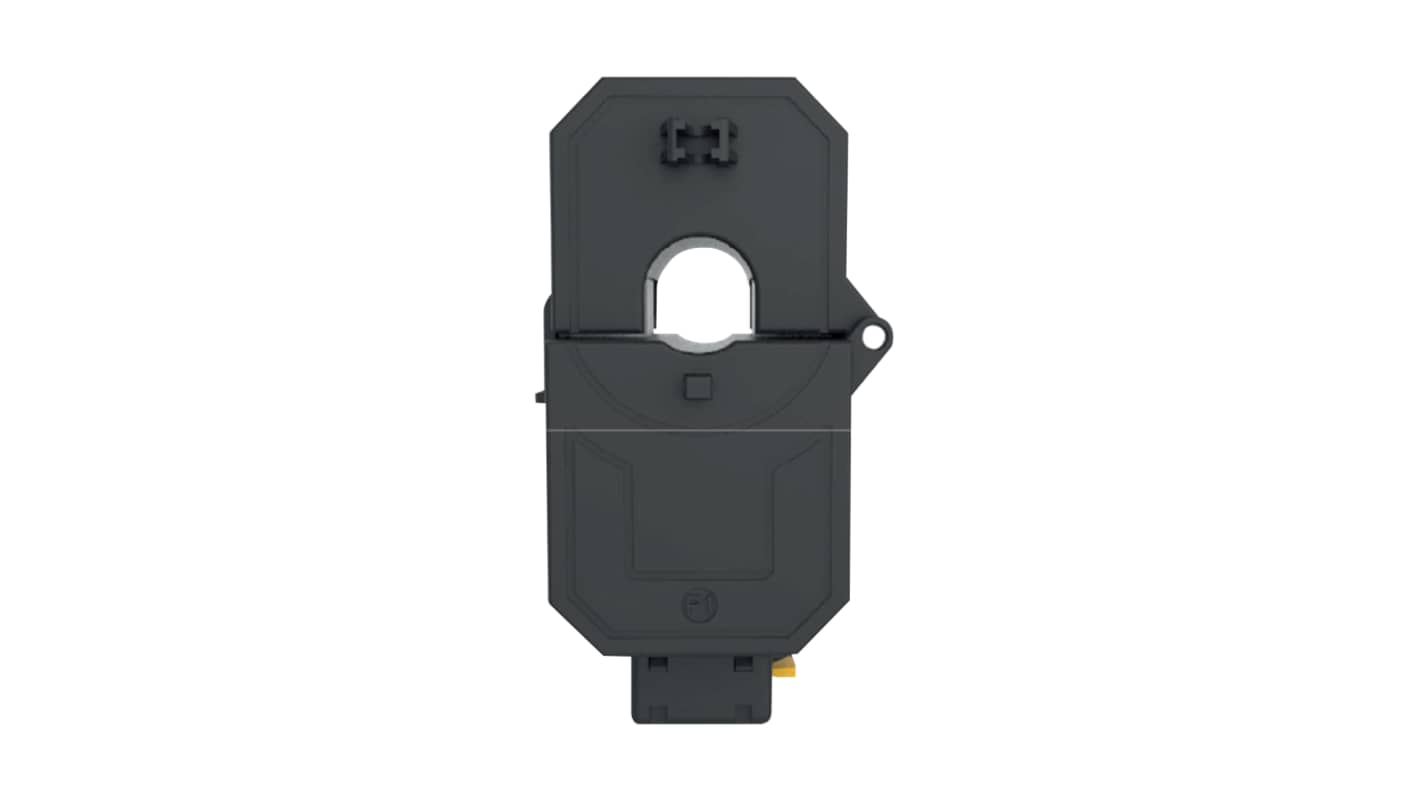

RS PRO Hinged Split Core Current Transformer, 100A
A compact and efficient split core transformer for current measurement intended for simple installation round busbars or with cable ties. The hinged design enables quick mounting or adjustment without needing to open any existing cable of busbar circuits. ;The current transformer features M4 terminals, is supplied with 1m of 2.5mm wire and is suitable for use in industrial environments.
Features and Benefits
Hinged split core transformer;Compact size;Bus Bar mounting and cable tie provision;Safety plug in shorting link;M4 terminals;1m x 2.5mm wire ;Latching type snap fitment
Standards and Approvals: IEC 61869
Why RS PRO?
RS PRO is the own brand of RS, offering professional quality products and solutions across all industries and technologies. Our product range is rigorously tested, inspected, and audited against demanding international standards to provide you with industrial-grade quality, at the right price. Making RS PRO your smart choice.
