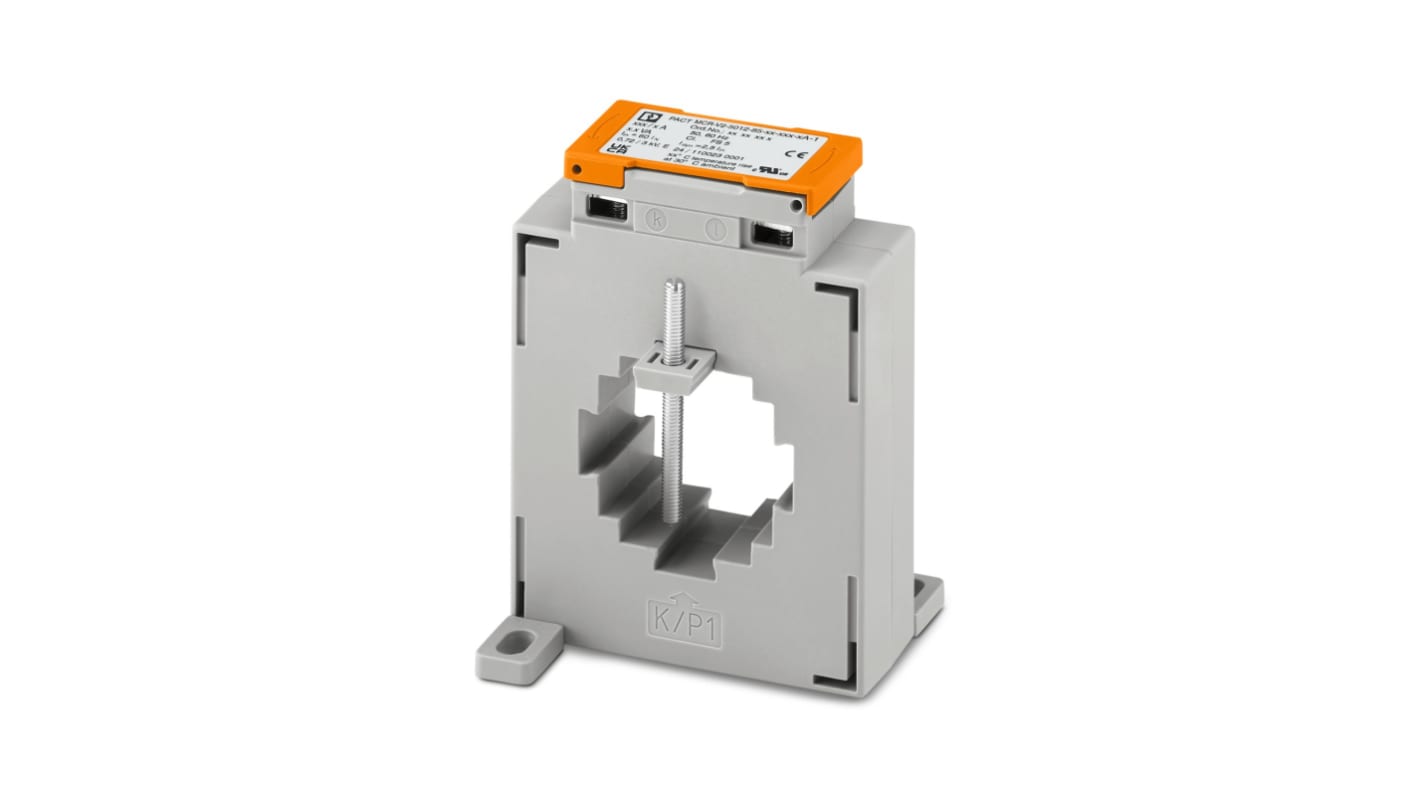

Phoenix Contact PACT MCR Series Current Transformer 800 A 10 VA 42 mm Bore
- RS 제품 번호:
- 129-961
- 제조사 부품 번호:
- 2277187
- 제조업체:
- Phoenix Contact
Subtotal (1 unit)*
₩69,994.28
제조사가 재고 비축중
- 2026년 5월 25일 부터 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 + | ₩69,994.28 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 129-961
- 제조사 부품 번호:
- 2277187
- 제조업체:
- Phoenix Contact
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Phoenix Contact | |
| Product Type | Current Transformer | |
| Series | PACT MCR | |
| Power Rating | 10VA | |
| Secondary Current | 5A | |
| Minimum Operating Temperature | -25°C | |
| Primary Current | 800A | |
| Maximum Operating Temperature | 40°C | |
| Length | 110mm | |
| Weight | 488.9g | |
| Standards/Approvals | EN61869, CE, CHINA RoHS, cULus, EAC, UKCA, EU RoHS | |
| Width | 31mm | |
| Depth | 85mm | |
| Mount Type | Wall, DIN Rail | |
| Maximum Operating Frequency | 60Hz | |
| Bore Size | 42mm | |
| Minimum Operating Frequency | 50Hz | |
| 모두 선택 | ||
|---|---|---|
브랜드 Phoenix Contact | ||
Product Type Current Transformer | ||
Series PACT MCR | ||
Power Rating 10VA | ||
Secondary Current 5A | ||
Minimum Operating Temperature -25°C | ||
Primary Current 800A | ||
Maximum Operating Temperature 40°C | ||
Length 110mm | ||
Weight 488.9g | ||
Standards/Approvals EN61869, CE, CHINA RoHS, cULus, EAC, UKCA, EU RoHS | ||
Width 31mm | ||
Depth 85mm | ||
Mount Type Wall, DIN Rail | ||
Maximum Operating Frequency 60Hz | ||
Bore Size 42mm | ||
Minimum Operating Frequency 50Hz | ||
- COO (Country of Origin):
- DE
The Phoenix Contact Current Transformer is a window type transformer with 800 A AC primary current and 5 A AC secondary current. It has an accuracy class of 1 and a rated power of 10 VA, making it ideal for various applications in energy monitoring and control systems.
Window type design for easy installation and maintenance
Rated insulation voltage of 1 kV for safety
Screw connection method for secure connections
Flexible conductor Cross section for versatile applications
CE compliant and UKCA compliant for regulatory standards
