Infineon TLE49421CHAMA2, Hall Effect Sensor IC 2-Pin, PG-SSO-2-4

RS 제품 번호:: 258-4098
제조사 부품 번호:: TLE49421CHAMA2
제조업체:: Infineon

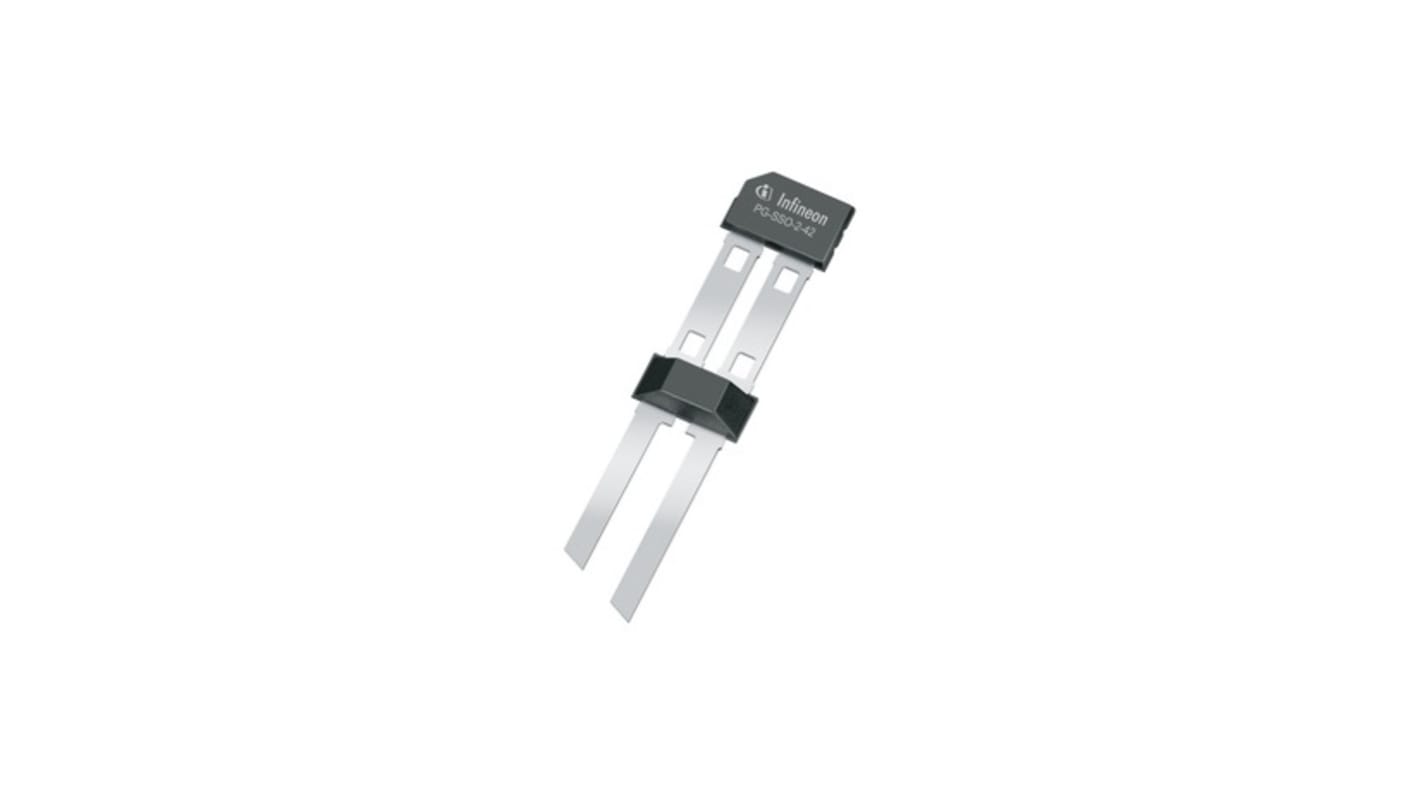

Infineon TLE49421CHAMA2, Hall Effect Sensor IC 2-Pin, PG-SSO-2-4

본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.

대량 구매 할인 기용 가능

Subtotal (1 unit)*

₩3,346.40

재고있음

1,285 개 단위 배송 준비 완료

더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.

수량	한팩당
1 - 9	₩3,346.40
10 - 99	₩3,177.20
100 - 249	₩2,989.20
250 - 499	₩2,782.40
500 +	₩2,556.80

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:: 258-4098
제조사 부품 번호:: TLE49421CHAMA2
제조업체:: Infineon

참조 문서

제정법과 컴플라이언스

제품 세부 사항

제품 정보를 선택해 유사 제품을 찾기

모두 선택	제품 정보	값
	브랜드	Infineon
	Product Type	Hall Effect Sensor IC
	Quiescent Current	7mA
	Bandwidth	5kHz
	Package Type	PG-SSO-2-4
	Current Rating	16.8 mA
	Pin Count	2
	Mount Type	Surface
	Minimum Supply Voltage	4.5V
	Maximum Supply Voltage	20V
	Minimum Operating Temperature	-40°C
	Maximum Operating Temperature	150°C
	Series	TLE4942
	Length	5.34mm
	Height	3.71mm
	Width	1 mm
	Standards/Approvals	RoHS
	Automotive Standard	AEC-Q100

	모두 선택
	브랜드 Infineon
	Product Type Hall Effect Sensor IC
	Quiescent Current 7mA
	Bandwidth 5kHz
	Package Type PG-SSO-2-4
	Current Rating 16.8 mA
	Pin Count 2
	Mount Type Surface
	Minimum Supply Voltage 4.5V
	Maximum Supply Voltage 20V
	Minimum Operating Temperature -40°C
	Maximum Operating Temperature 150°C
	Series TLE4942
	Length 5.34mm
	Height 3.71mm
	Width 1 mm
	Standards/Approvals RoHS
	Automotive Standard AEC-Q100

Datasheet - TLE49421CHAMA2

The Infineon hall effect sensor IC is designed to provide information about rotational speed, direction of rotation, assembly position and limit air gap to modern vehicle dynamics control systems and ABS. The output has been designed as a two wire current interface based on a pulse width modulation principle. The sensor operates without external components and combines a fast power-up time with a low cut-off frequency. Excellent accuracy and sensitivity is specified for harsh automotive requirements as a wide temperature range, high ESD robustness and high EMC resilience.

Two-wire PWM current interface

Detection of rotation direction

Air gap diagnosis

Assembly position diagnosis

Dynamic self-calibration principle

Single chip solution

No external components needed

High sensitivity

South and north pole pre-induction possible

High resistance to piezo effects

Infineon TLE49421CHAMA2, Hall Effect Sensor IC 2-Pin, PG-SSO-2-4
