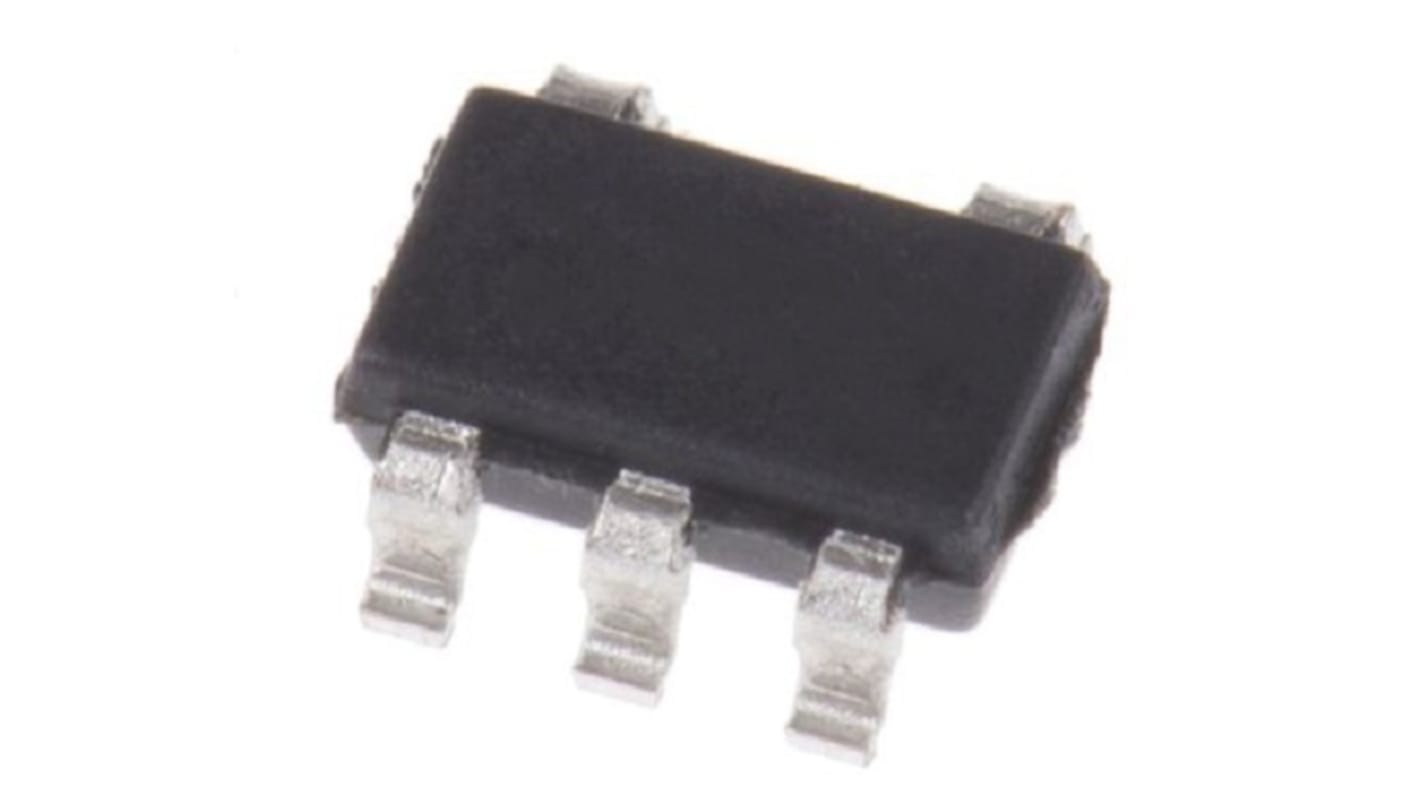

ISL28005FH50Z-T7A Renesas Electronics Rail to Rail Current Sensing Amplifier 5-Pin 5LD SOT-23
- RS 제품 번호:
- 263-8907
- 제조사 부품 번호:
- ISL28005FH50Z-T7A
- 제조업체:
- Renesas Electronics
현재 비가용
RS는 이 제품을 더 이상 판매하지 않습니다.
- RS 제품 번호:
- 263-8907
- 제조사 부품 번호:
- ISL28005FH50Z-T7A
- 제조업체:
- Renesas Electronics
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Renesas Electronics | |
| Product Type | Current Sensing Amplifier | |
| Maximum Supply Voltage | 28V | |
| Minimum Supply Voltage | 50V | |
| CMRR - Common Mode Rejection Ratio | 105dB | |
| Supply Current | 20mA | |
| Mount Type | Surface | |
| Package Type | 5LD SOT-23 | |
| Pin Count | 5 | |
| Minimum Operating Temperature | -40°C | |
| Length | 2.9mm | |
| Series | ISL28005 | |
| Standards/Approvals | RoHS | |
| Height | 1.14mm | |
| Maximum Operating Temperature | 125°C | |
| Automotive Standard | No | |
| Output Type | Rail to Rail | |
| 모두 선택 | ||
|---|---|---|
브랜드 Renesas Electronics | ||
Product Type Current Sensing Amplifier | ||
Maximum Supply Voltage 28V | ||
Minimum Supply Voltage 50V | ||
CMRR - Common Mode Rejection Ratio 105dB | ||
Supply Current 20mA | ||
Mount Type Surface | ||
Package Type 5LD SOT-23 | ||
Pin Count 5 | ||
Minimum Operating Temperature -40°C | ||
Length 2.9mm | ||
Series ISL28005 | ||
Standards/Approvals RoHS | ||
Height 1.14mm | ||
Maximum Operating Temperature 125°C | ||
Automotive Standard No | ||
Output Type Rail to Rail | ||
The Renesas Electronics micro power is unidirectional high-side and low-side current sense amplifier featuring a proprietary rail-to-rail input current sensing amplifier, is ideal for high-side current sense applications where the sense voltage is usually much higher than the amplifier supply voltage.
Low power consumption 50μA
Wide common mode input 0V to 28V
Operating temperature range -40°C to +125°C
Package 5 Ld SOT-23
