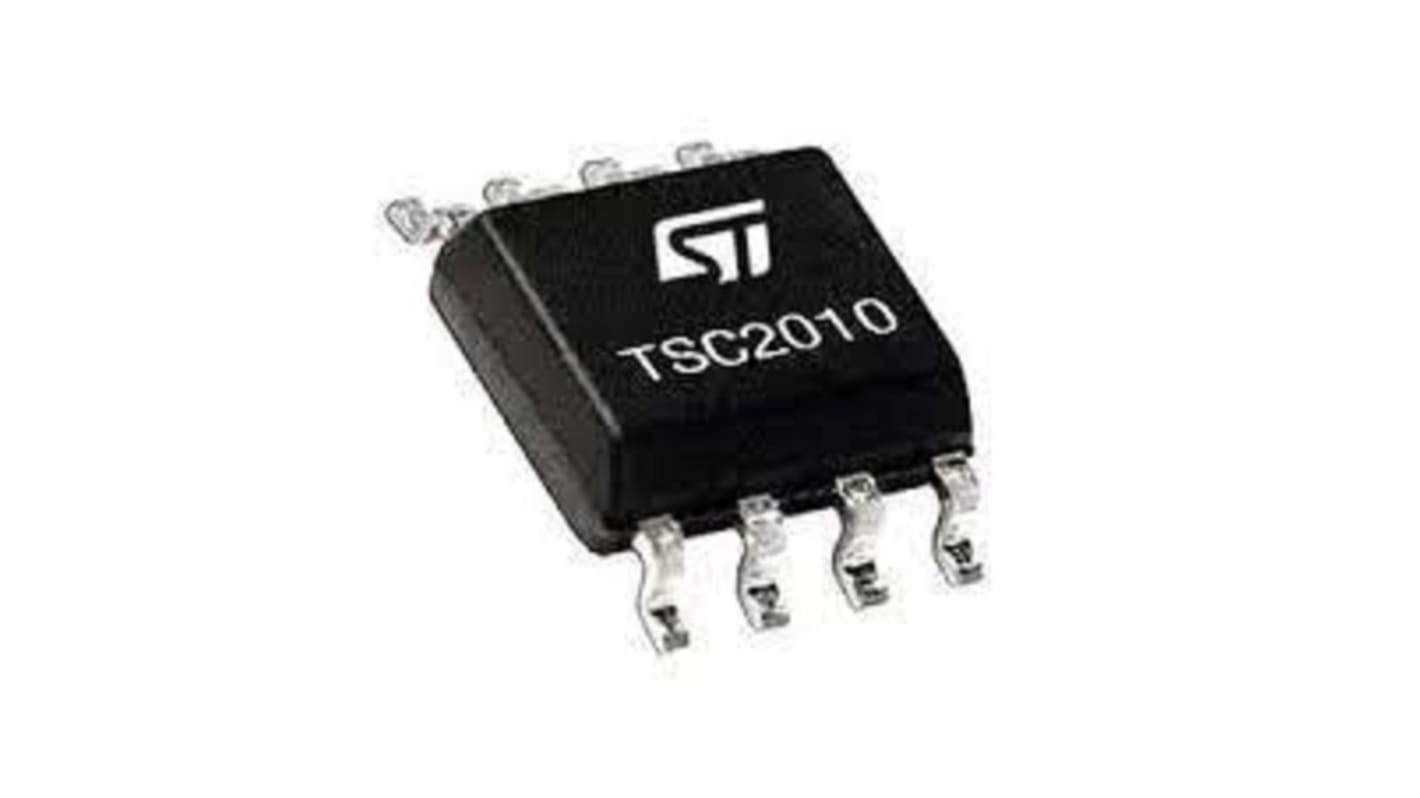

TSC2011HYDT STMicroelectronics Current Sensing Amplifier Single 8-Pin SO-8

대량 구매 할인 기용 가능

Subtotal (1 reel of 2500 units)*

₩14,212,800.00

Add to Basket
수량 선택 또는 입력
재고있음
  • 2,500 개 단위 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량
한팩당
릴당*
2500 - 2500₩5,685.12₩14,210,920.00
5000 - 5000₩5,570.44₩13,926,570.00
7500 +₩5,403.12₩13,508,740.00

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:
234-8912
제조사 부품 번호:
TSC2011HYDT
제조업체:
STMicroelectronics
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

STMicroelectronics

Power Supply Type

Single

Product Type

Current Sensing Amplifier

Minimum Supply Voltage

2.7V

Maximum Supply Voltage

5.5V

CMRR - Common Mode Rejection Ratio

80dB

Number of Channels

1

Supply Current

5mA

Mount Type

Surface

Package Type

SO-8

Pin Count

8

GBP - Gain Bandwidth Product

750kHz

Minimum Operating Temperature

-40°C

Series

TSC2011

Standards/Approvals

No

Height

1.75mm

Width

4 mm

Length

5mm

Automotive Standard

AEC-Q100

Maximum Operating Temperature

150°C

The STMicroelectronics precision bidirectional current sense amplifiers can sense the current thanks to a shunt resistor over a wide range of common mode voltages, from - 20 to + 70 V, whatever the supply voltage is. It is able to sense very low drop voltages as low as 10 mV full scale minimizing the measurement error.

Offset voltage ± 200 μV maximum

2.7 to 5.5 V supply voltage

Gain error 0.3% maximum

Offset drift 5 μV/°C maximum
