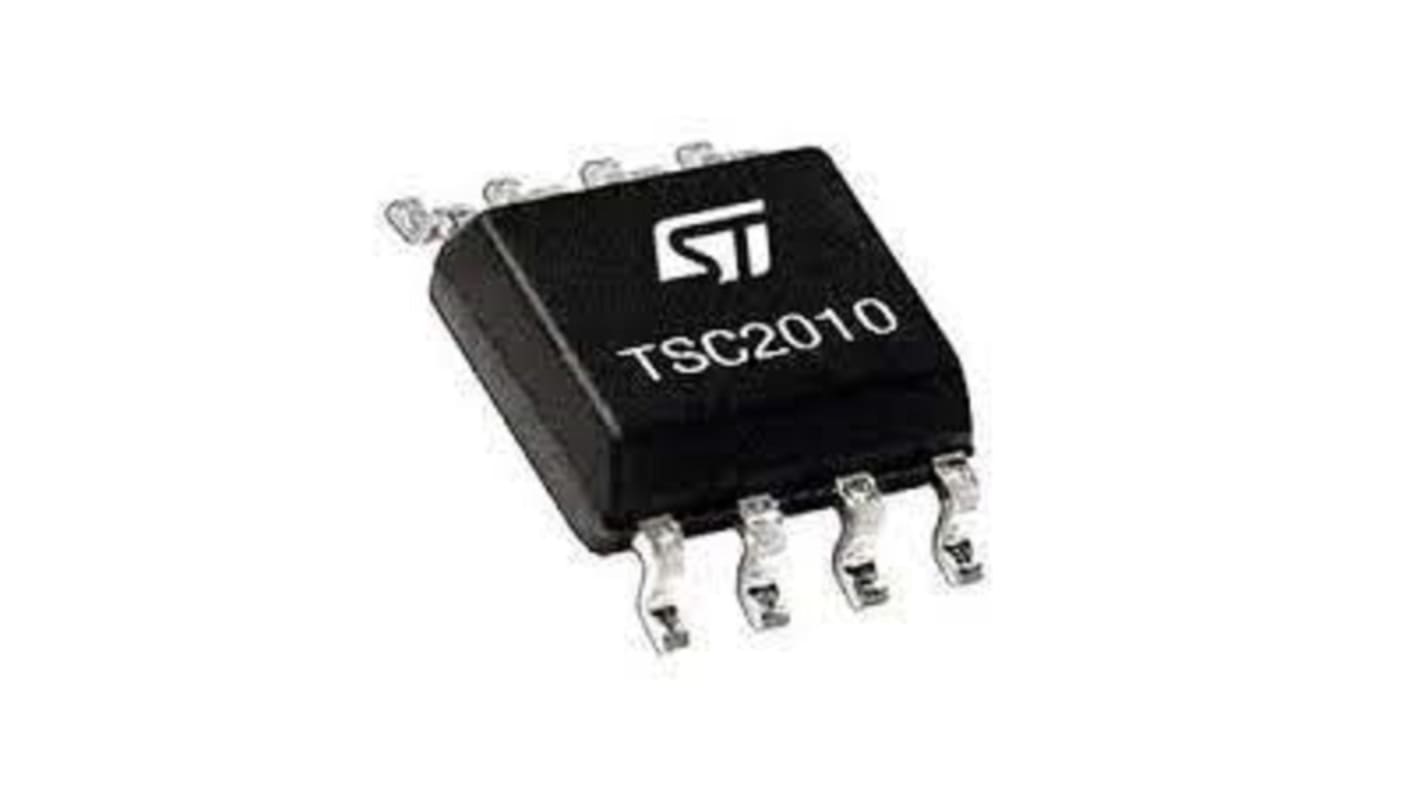

TSC2010HYDT STMicroelectronics Current Sensing Amplifier Single 8-Pin SO-8
- RS 제품 번호:
- 234-8910
- 제조사 부품 번호:
- TSC2010HYDT
- 제조업체:
- STMicroelectronics
본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.
대량 구매 할인 기용 가능
Subtotal (1 reel of 2500 units)*
₩13,942,500.00
현재 액세스할 수 없는 재고 정보 - 나중에 다시 확인해 주세요.
수량 | 한팩당 | 릴당* |
|---|---|---|
| 2500 - 2500 | ₩5,577.00 | ₩13,942,012.50 |
| 5000 - 5000 | ₩5,465.85 | ₩13,663,162.50 |
| 7500 + | ₩5,302.05 | ₩13,253,175.00 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 234-8910
- 제조사 부품 번호:
- TSC2010HYDT
- 제조업체:
- STMicroelectronics
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | STMicroelectronics | |
| Power Supply Type | Single | |
| Product Type | Current Sensing Amplifier | |
| Minimum Supply Voltage | 2.7V | |
| Maximum Supply Voltage | 5.5V | |
| CMRR - Common Mode Rejection Ratio | 80dB | |
| Number of Channels | 1 | |
| Supply Current | 5mA | |
| Mount Type | Surface | |
| Package Type | SO-8 | |
| Pin Count | 8 | |
| Minimum Operating Temperature | -40°C | |
| GBP - Gain Bandwidth Product | 820kHz | |
| Standards/Approvals | No | |
| Series | TSC2010 | |
| Height | 1.75mm | |
| Length | 5mm | |
| Maximum Operating Temperature | 150°C | |
| Automotive Standard | AEC-Q100 | |
| 모두 선택 | ||
|---|---|---|
브랜드 STMicroelectronics | ||
Power Supply Type Single | ||
Product Type Current Sensing Amplifier | ||
Minimum Supply Voltage 2.7V | ||
Maximum Supply Voltage 5.5V | ||
CMRR - Common Mode Rejection Ratio 80dB | ||
Number of Channels 1 | ||
Supply Current 5mA | ||
Mount Type Surface | ||
Package Type SO-8 | ||
Pin Count 8 | ||
Minimum Operating Temperature -40°C | ||
GBP - Gain Bandwidth Product 820kHz | ||
Standards/Approvals No | ||
Series TSC2010 | ||
Height 1.75mm | ||
Length 5mm | ||
Maximum Operating Temperature 150°C | ||
Automotive Standard AEC-Q100 | ||
The STMicroelectronics precision bidirectional current sense amplifiers can sense the current thanks to a shunt resistor over a wide range of common mode voltages, from - 20 to + 70 V, whatever the supply voltage is. It is able to sense very low drop voltages as low as 10 mV full scale minimizing the measurement error.
Offset voltage ± 200 μV maximum
2.7 to 5.5 V supply voltage
Gain error 0.3% maximum
Offset drift 5 μV/°C maximum
