onsemi Rail to Rail Current Shunt Monitor Single 6-Pin SC-70
- RS 제품 번호:
- 189-0235
- 제조사 부품 번호:
- NCV211RSQT2G
- 제조업체:
- onsemi

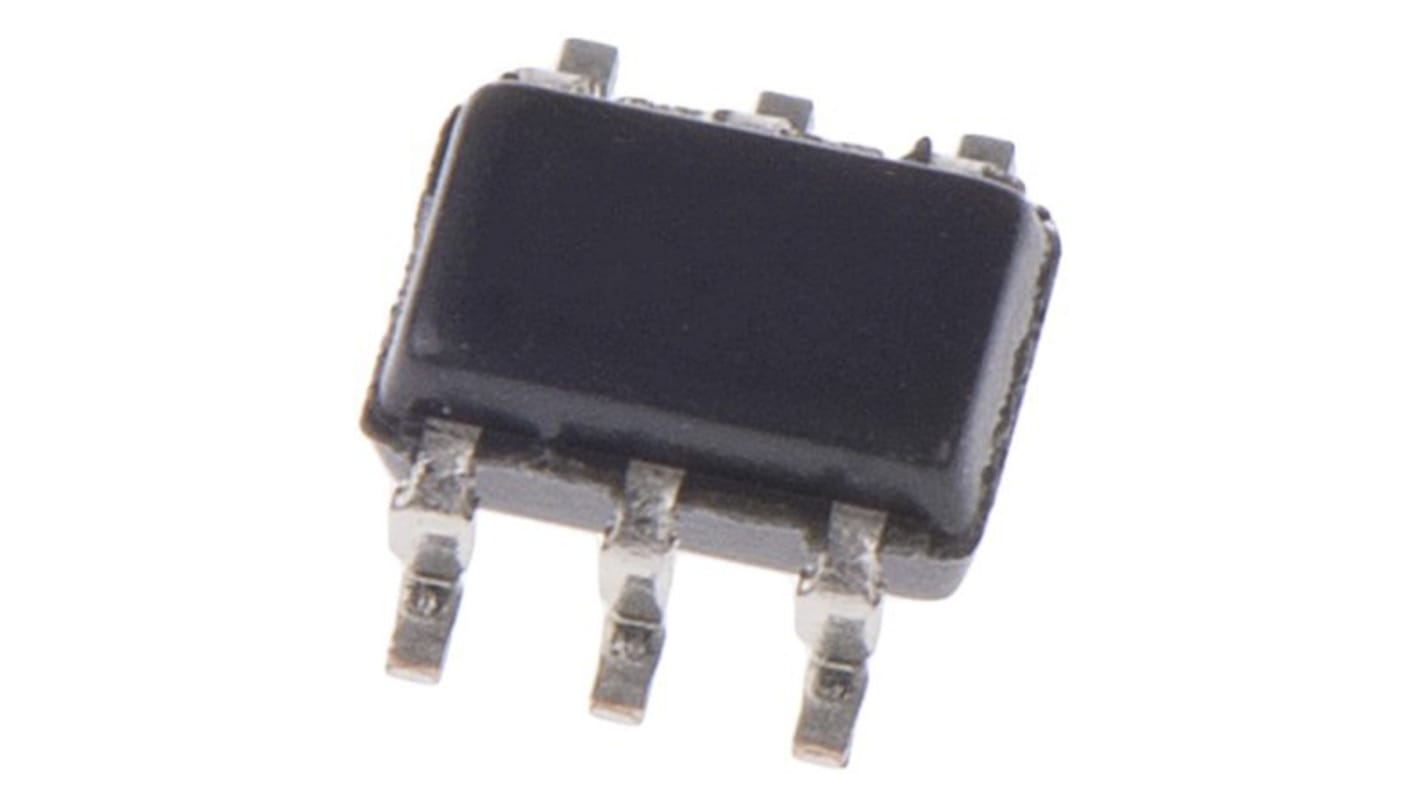

본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.
현재 비가용
RS는 이 제품을 더 이상 판매하지 않습니다.
- RS 제품 번호:
- 189-0235
- 제조사 부품 번호:
- NCV211RSQT2G
- 제조업체:
- onsemi
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | onsemi | |
| Power Supply Type | Single | |
| Product Type | Current Shunt Monitor | |
| Minimum Supply Voltage | 2V | |
| Maximum Supply Voltage | 26V | |
| CMRR - Common Mode Rejection Ratio | 105dB | |
| Number of Channels | 1 | |
| Supply Current | 80μA | |
| Mount Type | Surface | |
| Package Type | SC-70 | |
| Pin Count | 6 | |
| Minimum Operating Temperature | -40°C | |
| GBP - Gain Bandwidth Product | 25kHz | |
| Height | 1mm | |
| Length | 2.2mm | |
| Series | NCV211 | |
| Standards/Approvals | No | |
| Width | 1.35 mm | |
| Output Type | Rail to Rail | |
| Maximum Operating Temperature | 125°C | |
| Automotive Standard | AEC-Q100 | |
| 모두 선택 | ||
|---|---|---|
브랜드 onsemi | ||
Power Supply Type Single | ||
Product Type Current Shunt Monitor | ||
Minimum Supply Voltage 2V | ||
Maximum Supply Voltage 26V | ||
CMRR - Common Mode Rejection Ratio 105dB | ||
Number of Channels 1 | ||
Supply Current 80μA | ||
Mount Type Surface | ||
Package Type SC-70 | ||
Pin Count 6 | ||
Minimum Operating Temperature -40°C | ||
GBP - Gain Bandwidth Product 25kHz | ||
Height 1mm | ||
Length 2.2mm | ||
Series NCV211 | ||
Standards/Approvals No | ||
Width 1.35 mm | ||
Output Type Rail to Rail | ||
Maximum Operating Temperature 125°C | ||
Automotive Standard AEC-Q100 | ||
The NCS211R and NCV211R are voltage output, current sense amplifiers that can measure voltage across shunts at common-mode voltages from -0.3 V to 26 V, independent of supply voltage. With a fixed gain of 500 V/V, the low offset of the zero-drift architecture enables current sensing across the shunt with maximum voltage drops as low as 10 mV full-scale. These devices can operate from a single +2.2 V to +26 V power supply, drawing a maximum of 80 μA of supply current. Available in SC70-6 package Additional gain options are available: NCS213R (50 V/V), NCS214R (100 V/V) , NCS210R (200 V/V)
Wide Common Mode Input Range: -0.3 to 26 V
Low Offset Voltage: ±35 μV max.
Low Offset Drift: 0.5 μV/°C max.
Supply Voltage: 2.2 to 26 V
High-side current sensing for high voltage systems
Low Ohm value current sense resistors
High accuracy over temperature leading to better power efficiency
Wide supply voltage range provides system flexibility
Applications
Power Monitoring
Power Adapters
LED Power Supply
Over Current Protection
Automotive
Closed Loop Feedback Circuits
End Products
White Goods
Automotive
Lighting
Laptop/Notebooks PC
Fast Chargers in Smartphones and Tablet
Telecom DC-DC modules
E-Cigarettes
Computing Servers
