제조사부품번호

Texas Instruments Current Shunt Monitor Single 5-Pin SOT-23

Name: Texas Instruments Current Shunt Monitor Single 5-Pin SOT-23
Brand: Texas Instruments
SKU: 121-8922
Availability: OutOfStock

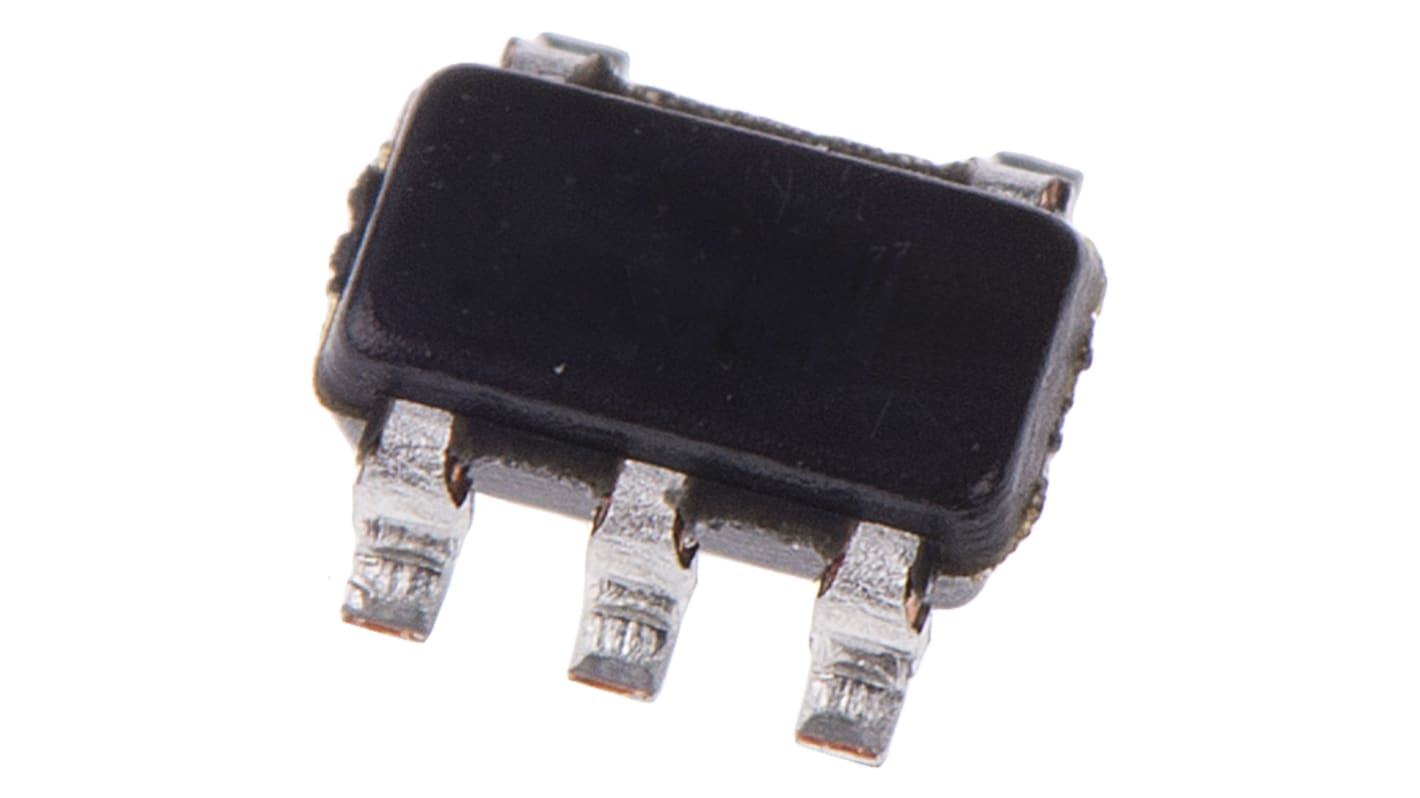

본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.

현재 비가용

죄송합니다. 언제 재입고될지 모릅니다.

사양

참조 문서

제정법과 컴플라이언스

제품 정보를 선택해 유사 제품을 찾기

모두 선택	제품 정보	값
	브랜드	Texas Instruments
	Power Supply Type	Single
	Product Type	Current Shunt Monitor
	Minimum Supply Voltage	2.7V
	Maximum Supply Voltage	18V
	CMRR - Common Mode Rejection Ratio	80dB
	Number of Channels	1
	Supply Current	900μA
	Mount Type	Surface
	Package Type	SOT-23
	Pin Count	5
	GBP - Gain Bandwidth Product	200kHz
	Minimum Operating Temperature	-40°C
	Standards/Approvals	No
	Series	INA195
	Length	2.9mm
	Height	1.15mm
	Maximum Operating Temperature	125°C
	Automotive Standard	No

	모두 선택
	브랜드 Texas Instruments
	Power Supply Type Single
	Product Type Current Shunt Monitor
	Minimum Supply Voltage 2.7V
	Maximum Supply Voltage 18V
	CMRR - Common Mode Rejection Ratio 80dB
	Number of Channels 1
	Supply Current 900μA
	Mount Type Surface
	Package Type SOT-23
	Pin Count 5
	GBP - Gain Bandwidth Product 200kHz
	Minimum Operating Temperature -40°C
	Standards/Approvals No
	Series INA195
	Length 2.9mm
	Height 1.15mm
	Maximum Operating Temperature 125°C
	Automotive Standard No
