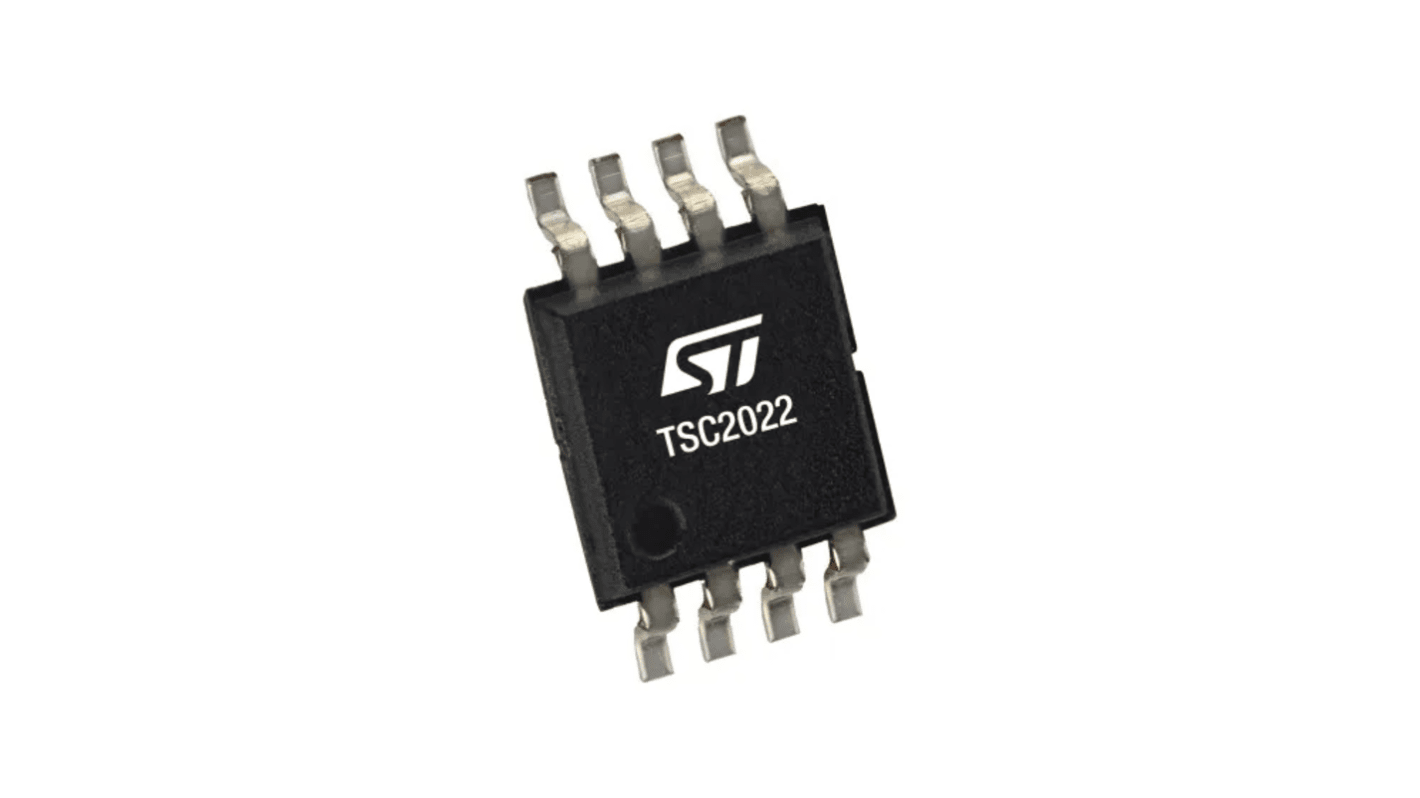

STMicroelectronics Current Sensing Amplifier 8-Pin MiniSO8

본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.

모든 Current Sensing Amplifiers 열람하기
대량 구매 할인 기용 가능

Subtotal (1 unit)*

₩2,927.16

Add to Basket
수량 선택 또는 입력
현재 액세스할 수 없는 재고 정보
수량
한팩당
1 - 9₩2,927.16
10 - 24₩2,831.28
25 - 99₩2,774.88
100 - 499₩2,378.20
500 +₩2,227.80

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:
482-951
제조사 부품 번호:
TSC2022IST
제조업체:
STMicroelectronics
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

STMicroelectronics

Product Type

Current Sensing Amplifier

Minimum Supply Voltage

2.7V

Maximum Supply Voltage

5.5V

CMRR - Common Mode Rejection Ratio

100dB

Supply Current

2.4mA

Package Type

MiniSO8

Pin Count

8

Minimum Operating Temperature

-40°C

GBP - Gain Bandwidth Product

700kHz

Series

TSC202

Standards/Approvals

AEC-Q100

Maximum Operating Temperature

125°C

Automotive Standard

AEC-Q100

COO (Country of Origin):
CN
The STMicroelectronics Precision bidirectional current sense amplifier can sense current via a shunt resistor over a wide range of common-mode voltages, from -4 to +100 V. It is able to sense very low drop voltages, minimizing measurement error. It may be used for various functions like precision current measurement, overcurrent protection, current monitoring, and feedback loops. These devices fully operate over the supply voltage range of 2.7 to 5.5 V, and over an ambient temperature range of -40 to 125 °C.

AEC Q100 qualified

High common mode rejection

Enhanced PWM rejection

SO8 and MiniSO8 packages

TSSOP8 package
