제조사부품번호

TSC2020IDT STMicroelectronics Current, Voltage Current Sensing Amplifier Single 8-Pin SO-8

RS 제품 번호:: 276-895
제조사 부품 번호:: TSC2020IDT
제조업체:: STMicroelectronics

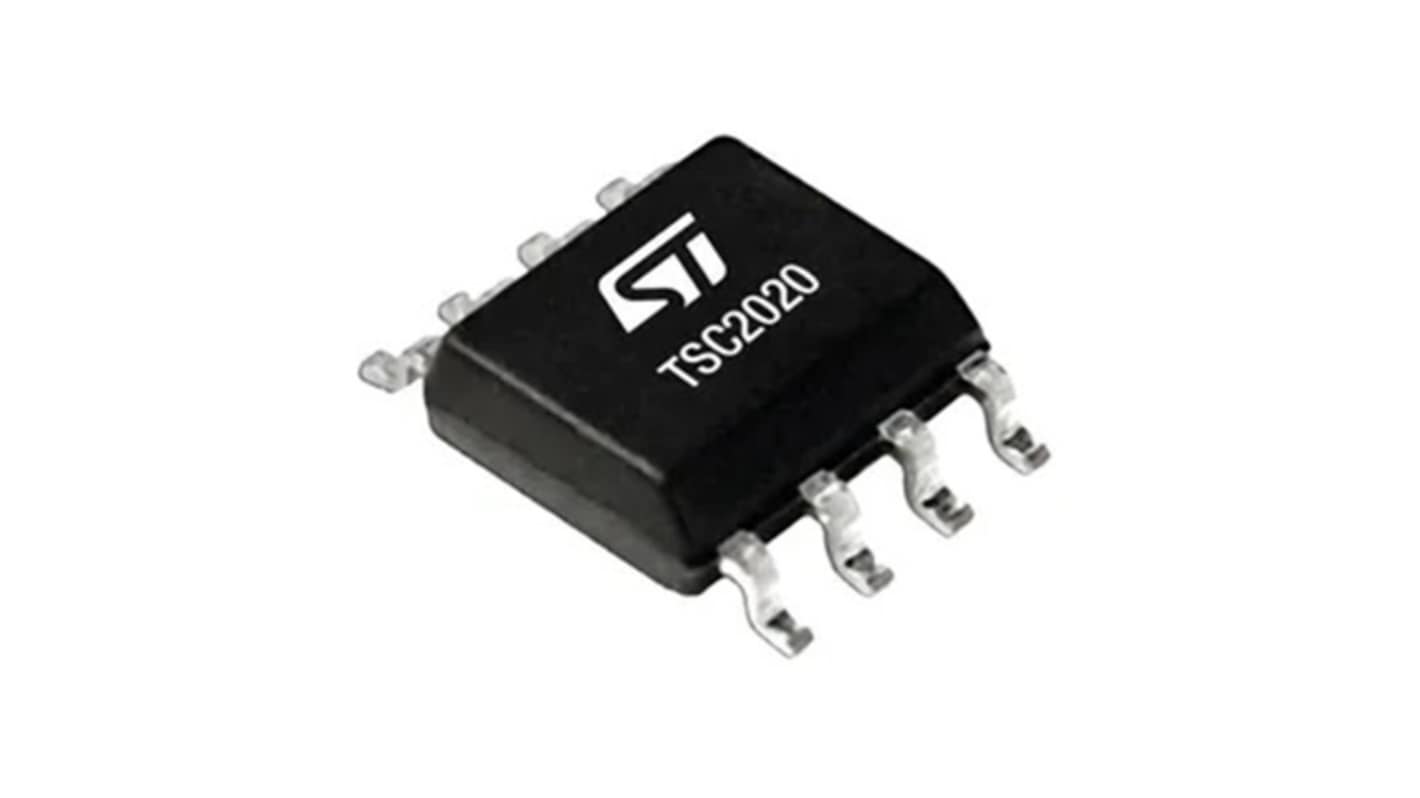

TSC2020IDT STMicroelectronics Current, Voltage Current Sensing Amplifier Single 8-Pin SO-8

본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.

Subtotal (1 reel of 2500 units)*

₩6,739,800.00

일시적 품절

2026년 6월 18일 부터 배송

더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.

수량	한팩당	릴당*
2500 +	₩2,695.92	₩6,742,150.00

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:: 276-895
제조사 부품 번호:: TSC2020IDT
제조업체:: STMicroelectronics

참조 문서

제정법과 컴플라이언스

제품 세부 사항

제품 정보를 선택해 유사 제품을 찾기

모두 선택	제품 정보	값
	브랜드	STMicroelectronics
	Product Type	Current Sensing Amplifier
	Power Supply Type	Single
	Maximum Supply Voltage	5.5V
	Minimum Supply Voltage	2.7V
	CMRR - Common Mode Rejection Ratio	100dB
	Number of Channels	1
	Supply Current	2.4mA
	Mount Type	Surface
	Package Type	SO-8
	Pin Count	8
	GBP - Gain Bandwidth Product	700kHz
	Minimum Operating Temperature	-40°C
	Series	TSC2020
	Height	1.75mm
	Width	6.2 mm
	Standards/Approvals	ANSI/ESD STM5.3.1, JEDEC standard JESD22-A114F, AEC-Q100, RoHS
	Length	5mm
	Maximum Operating Temperature	125°C
	Automotive Standard	AEC-Q100
	Output Type	Current, Voltage

	모두 선택
	브랜드 STMicroelectronics
	Product Type Current Sensing Amplifier
	Power Supply Type Single
	Maximum Supply Voltage 5.5V
	Minimum Supply Voltage 2.7V
	CMRR - Common Mode Rejection Ratio 100dB
	Number of Channels 1
	Supply Current 2.4mA
	Mount Type Surface
	Package Type SO-8
	Pin Count 8
	GBP - Gain Bandwidth Product 700kHz
	Minimum Operating Temperature -40°C
	Series TSC2020
	Height 1.75mm
	Width 6.2 mm
	Standards/Approvals ANSI/ESD STM5.3.1, JEDEC standard JESD22-A114F, AEC-Q100, RoHS
	Length 5mm
	Maximum Operating Temperature 125°C
	Automotive Standard AEC-Q100
	Output Type Current, Voltage

Datasheet - TSC2020IDT

COO (Country of Origin):: MA

The STMicroelectronics Bidirectional current sense amplifier can sense current via a shunt resistor over a wide range of common mode voltages, from -4 to +100 V, whatever the supply voltage is. It is able to sense very low drop voltages, minimizing measurement error. It is used for various functions like precision current measurement, overcurrent protection, current monitoring and feedback loops.

Enhanced PWM rejection

Internal fixed gain 20 V/V

SO8 and MiniSO8 package

AEC-Q100 qualified

High common mode rejection CMR

TSC2020IDT STMicroelectronics Current, Voltage Current Sensing Amplifier Single 8-Pin SO-8
