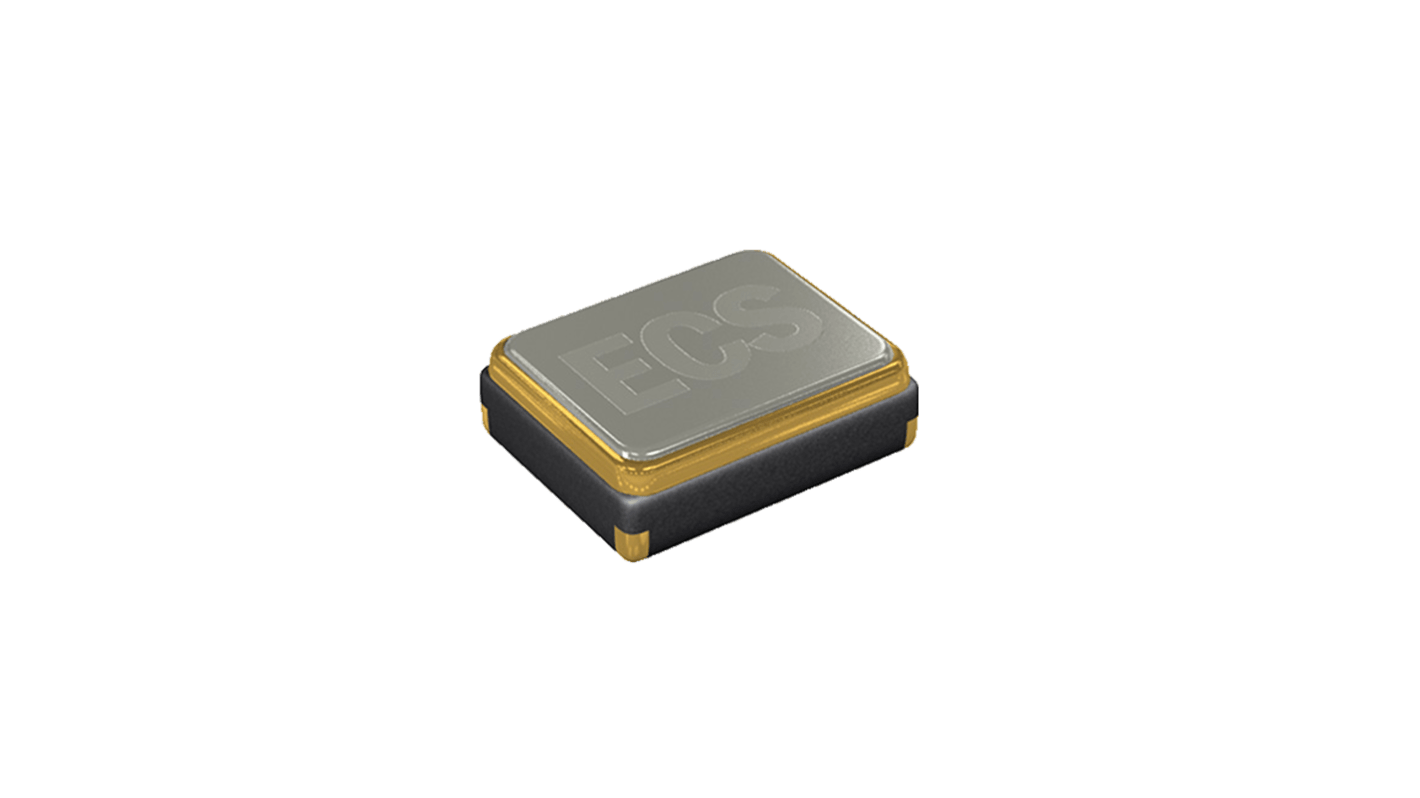

ECS Inc International, 50MHz Crystal Oscillator Crystal Oscillator, ±50 ppm CMOS, 4-Pin Surface Mount ECS-2033-500-BN
- RS 제품 번호:
- 301-219
- 제조사 부품 번호:
- ECS-2033-500-BN
- 제조업체:
- ECS Inc International
본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.
대량 구매 할인 기용 가능
Subtotal (1 unit)*
₩5,265.00
재고있음
- 990 개 단위 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 - 9 | ₩5,265.00 |
| 10 - 99 | ₩4,738.50 |
| 100 - 499 | ₩4,348.50 |
| 500 - 999 | ₩4,056.00 |
| 1000 + | ₩3,295.50 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 301-219
- 제조사 부품 번호:
- ECS-2033-500-BN
- 제조업체:
- ECS Inc International
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | ECS Inc International | |
| Oscillator Type | Crystal Oscillator | |
| Product Type | Crystal Oscillator | |
| Output Frequency | 50MHz | |
| Frequency Stability | ±50 ppm | |
| Load Capacitance | 15pF | |
| Package Type | Surface Mount | |
| Output Level | CMOS | |
| Minimum Supply Voltage | 3.135V | |
| Maximum Supply Voltage | 3.465V | |
| Mount Type | Surface | |
| Pin Count | 4 | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 85°C | |
| Standards/Approvals | RoHS, PbFree | |
| Width | 2mm | |
| Length | 2.5mm | |
| Automotive Standard | No | |
| 모두 선택 | ||
|---|---|---|
브랜드 ECS Inc International | ||
Oscillator Type Crystal Oscillator | ||
Product Type Crystal Oscillator | ||
Output Frequency 50MHz | ||
Frequency Stability ±50 ppm | ||
Load Capacitance 15pF | ||
Package Type Surface Mount | ||
Output Level CMOS | ||
Minimum Supply Voltage 3.135V | ||
Maximum Supply Voltage 3.465V | ||
Mount Type Surface | ||
Pin Count 4 | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 85°C | ||
Standards/Approvals RoHS, PbFree | ||
Width 2mm | ||
Length 2.5mm | ||
Automotive Standard No | ||
The ECS Inc International subminiature SMD clock oscillator designed specifically to meet the demands of high-density applications. With a Compact 2.5mm x 2.0mm footprint, this product seamlessly integrates into modern electronic systems while delivering reliable performance. Optimised for power efficiency and performance, it supports a wide frequency range and ensures minimal current consumption, making it suitable for a variety of IoT, automotive, and consumer electronic applications. The oscillator operates at a supply voltage of 3.3V and offers impressive frequency stability, ensuring consistency across varying environmental conditions. This makes the ECS-2033 Ideal for applications requiring precision timing and reliability, from industrial systems to personal gadgets. Its robust design also accommodates extended temperature ranges, ensuring dependable operation even in harsher environments.
Compact design suitable for high-density applications
Optimised for low power consumption without compromising performance
Reliable frequency stability ensures consistent operation
Wide operating temperature range supports diverse application environments
Ideal for use in both consumer electronics and industrial systems
