Kubler W15.21 Counter, 5 Digit, 10Hz, 24 V dc

모든 Counters 열람하기
대량 구매 할인 기용 가능

Subtotal (1 unit)*

₩60,893.20

Add to Basket
수량 선택 또는 입력
재고있음
  • 5 개 단위 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량
한팩당
1 - 4₩60,893.20
5 - 9₩58,468.00
10 +₩56,024.00

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:
297-0923
제조사 부품 번호:
1.150.211.013
제조업체:
Kubler
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

Kubler

Supply Voltage

24 V dc

Count Mode

Impulses

Input Type

Voltage

Function

Counter

Connection Type

Flying Lead

Reset Method

Manual

Number of Digits

5

Mounting Type

Panel Mount

Digit Height

4 mm

Maximum Count Frequency

10Hz

Series

W15.21

Weight

62g

Minimum Operating Temperature

-10°C

Maximum Operating Temperature

+50°C

COO (Country of Origin):
DE

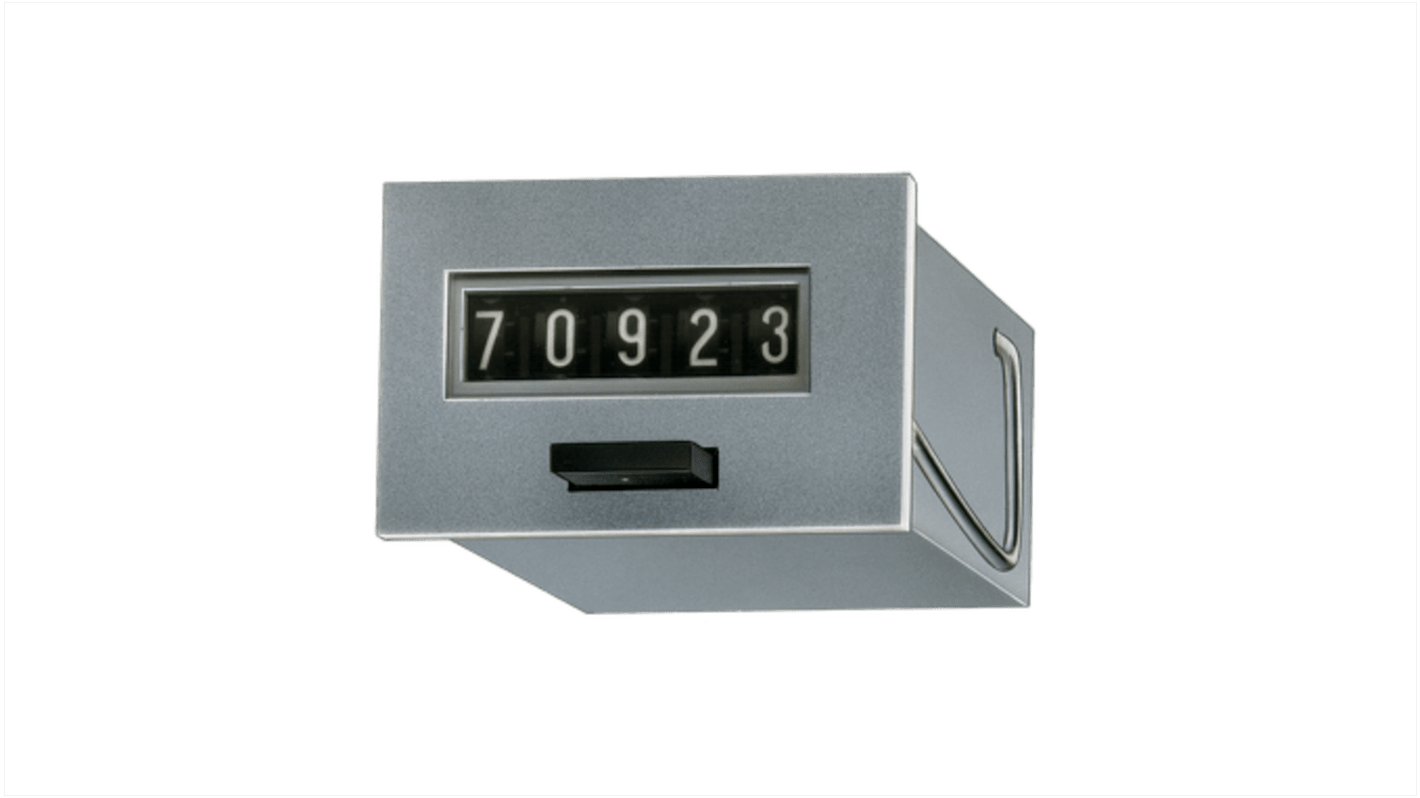

Kubler Digital Counter


The Kubler W15.21 series digital counter is a 5-digit, compact electromechanical pulse and panel mount device. It has a voltage rating of 24VDC. It is a mini totalizer manually resettable counter and is designed for various front panel sizes in a wide variety of applications. This counter has a maximum count frequency of 10Hz.

Note:
All have a count rate of 10Hz

Features and Benefits


Low power consumption
DIN housing dimensions are 48mm x 24mm
Long service life
Ideal for battery operation and electronic switching operations
Flush mount counter with spring clip
Miniature adding counter

Applications


Machines and appliances
Battery-powered devices
Heat and water consumption measurement
establishing tolls and charges
General quantity counting

Certifications


IP40 rated
