Bosch Rexroth Clamping Head 18mm, 100mm Length

모든 Conveyor Guide Rails 열람하기
대량 구매 할인 기용 가능

Subtotal (1 Bag of 10 units)*

₩166,756.00

Add to Basket
수량 선택 또는 입력
재고있음
  • 추가로 2025년 12월 22일 부터 6 개 단위 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
Bag(s)
Per Bag
한팩당*
1 - 5₩166,756.00₩16,675.60
6 +₩160,082.00₩16,008.20

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:
665-7179
제조사 부품 번호:
3 842 539 499
제조업체:
Bosch Rexroth
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

Bosch Rexroth

Component Type

Clamping Head

Diameter

18mm

Length

100mm

제외

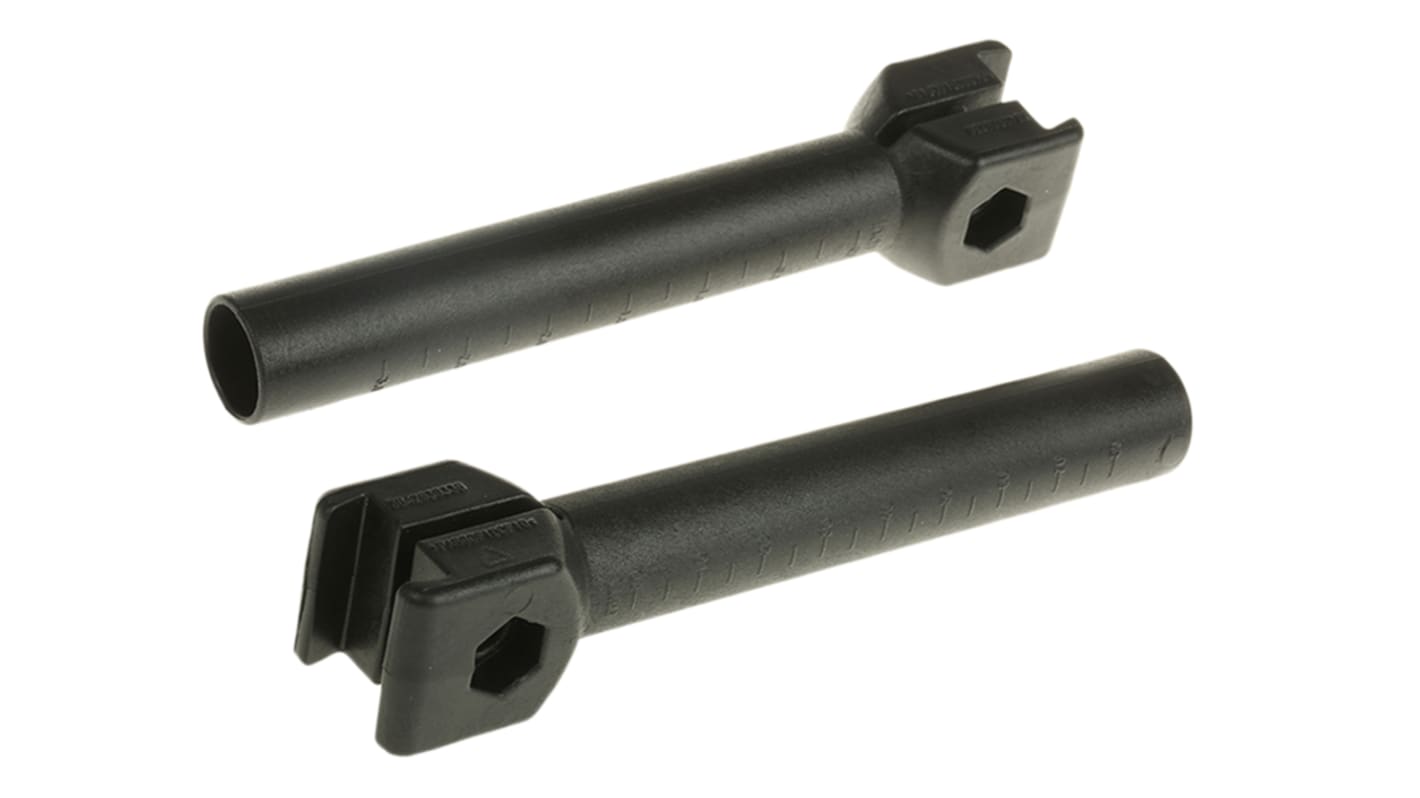

Bosch Rexroth Clamping Head, For Use With Guide Rails, Polyamide Body - MGE Series - 3842539499


Need to mount a rail on your lateral guide system? This Bosch Rexroth clamping head will guide the way. Setting it up is a piece of cake. First, thread the 18mm-wide unit into a bracket on your profile. Then slot the rail into the protruding head and use the fasteners to secure it – it's as easy as that. As this clamping head can support aluminium, HDPE and 17 x 17.5mm sectional rails, it's a versatile option.

Features & Benefits


• Wear-resistant black polyamide body ensures a long service life
• Steel stainless fastening materials are corrosion-resistant to withstand humid conditions
• Light weight of 38g, so it won't put a strain on your guide system

Applications


• Pharmaceutical manufacture
• Packaging technology
• Food industry

How long is this clamping head?


The total length is 132mm, giving you plenty of flexibility when adjusting the distance between your rails.


Lateral Guides - Adjustable


Lateral guide rail system designed for use with conveyors to help transport products. This unique system enables end user customisation to suit most conveying applications.


Profile rails and slide rails in various designs for optimum adjustment to transport material
Holder with two or four holes for supporting clamping pieces at various heights
Suitable for VarioFlow, VarioFlow S aluminium, VarioFlow S STS and many other systems
