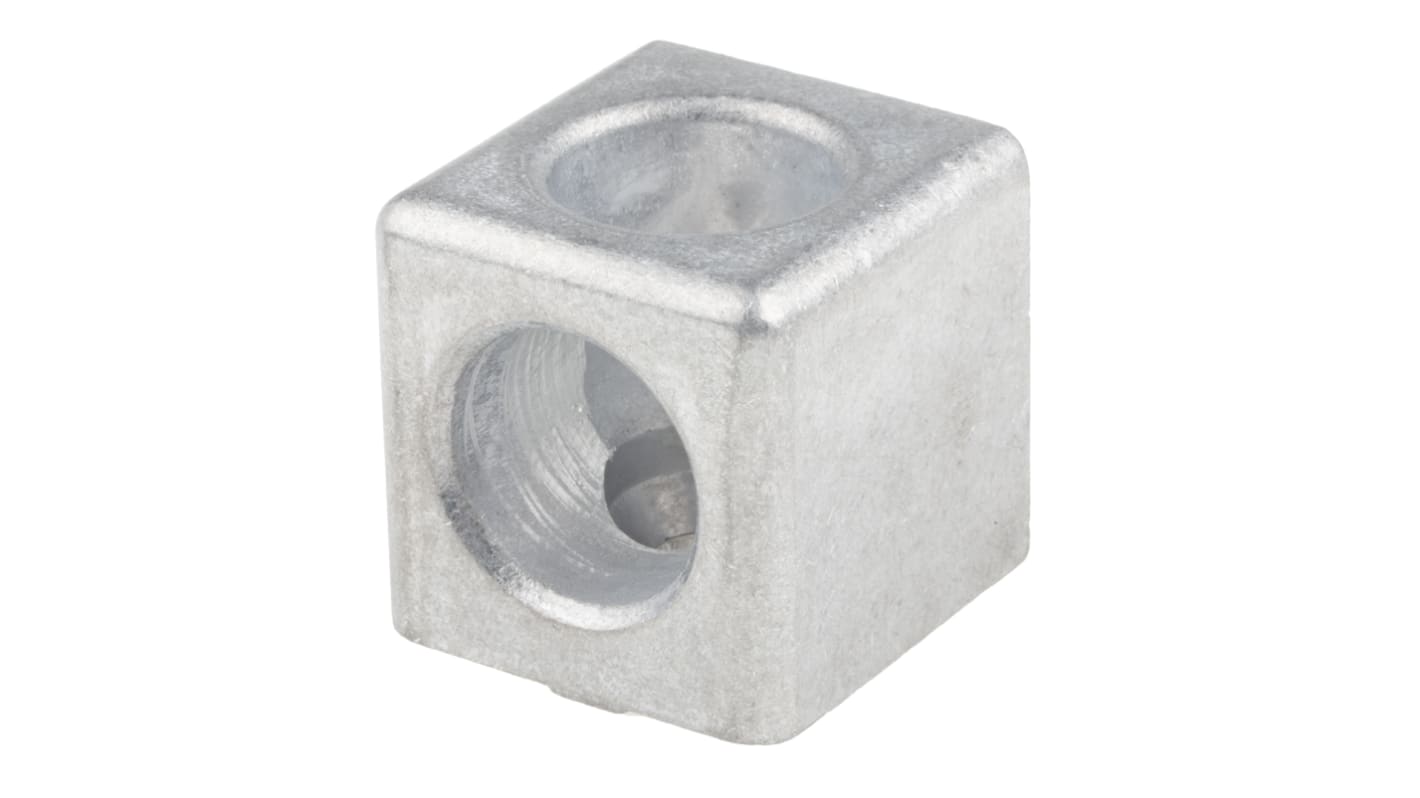

RS PRO Cube Connector, Connecting Component, Strut Profile 40 mm, Groove Size 8mm

모든 Connecting Components 열람하기
대량 구매 할인 기용 가능

Subtotal (1 unit)*

₩11,430.40

Add to Basket
수량 선택 또는 입력
재고있음
  • 292 개 단위 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량
한팩당
1 - 5₩11,430.40
6 - 29₩10,979.20
30 +₩10,528.00

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:
767-5718
Distrelec 제품 번호:
304-17-766
제조업체:
RS PRO
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

RS PRO

Connector Type

Cube Connector

Fits Groove Size

8mm

Fits Strut Profile

40 mm

Material

Die Cast Aluminium

Structural Element Type

Connector Bracket & Joint

Length

40mm

Product Family

RS Structural System

Product System

40

COO (Country of Origin):
DE

RS PRO Connector Bracket and Joint 2-Way Connector, Strut Profile 40 mm, Groove Size 8 mm


Use this two-way cube connector from RS PRO to join two different profiles at a 90° angle. It's commonly used to attach structural pieces such as aluminium frames.


This cube connector's lightweight aluminium die-cast construction means it won't add additional weight or pressure to your joints, keeping your assembly alignments in good condition. To complete the connection, cover the bores with the provided cover caps.


This product is RoHS (Restriction of Hazardous Substances) compliant, meaning it contains only trace levels of any harmful materials. The connector can be used to join items for projects in domestic and commercial workshop settings.

Features and Benefits


  • Cube connector type

  • Fits groove size of 8 mm

  • Fits strut profile of 40 mm

  • Length of 40 mm

  • Die-cast aluminium and nylon PA (polyamide) material

  • RS structural system product family

  • Product system of 40

  • Connector bracket and joint structural element type
